Description

H3-2S FTTH is an optical network terminal (ONT) in FTTx solution with 4GE+1TEL+Dual Band WiFi+2USB port and OMCI.

H3-2S FTTH Product Overview

H3-2S FTTH is a dual band Gigabit triple-play XPON gateway. It comes with 4GE LAN ports, one phone port and next generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve the performance.
The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

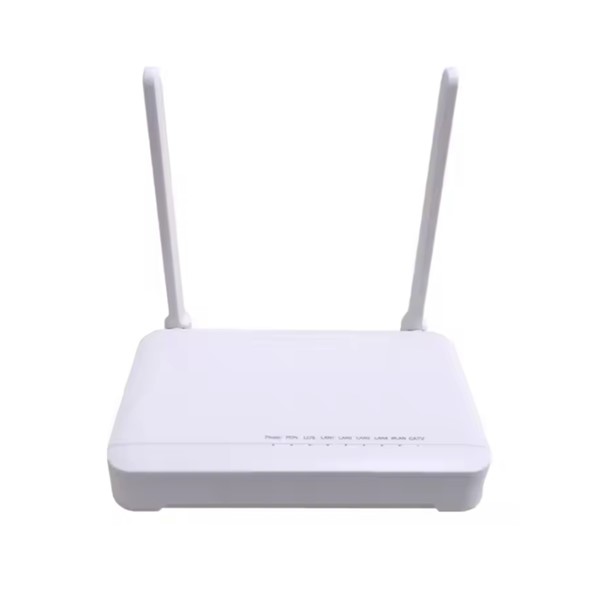

H3-2S FTTH Product Pictures

H3-2S FTTH price and specsH3-2S FTTH price and specs ont

H3-2S FTTH gpon eponH3-2S FTTH xpon

H3-2S FTTH Product Specifications

Model H3-2S
NNI GPON
UNI 1POTS + 4GE+ 2.4G &5G Wi-Fi
Optical Connector SC/APC SC/UPC
Dimensions (H x W x D) 30 mm x 155 mm x 125 mm (without an external antenna and pads)
Operating temperature 0°C to +40°C
Operating humidity 5% RH to 95% RH (non-condensing)
Power adapter input 100–240 V AC, 50/60 Hz
System power supply 11–14 V DC, 1 A
Static power consumption 3.1 W
Max power consumption 7.15 W

Language

 English Firmware

Color

 White
Indicators POWER/PON/LOS/LAN/TEL/WLAN/WPS
Installation mode On the desk, or on the wall
Compliance certification CE/Wi-Fi

H3-2S FTTH Product Features

  • Dual-Mode Fiber Interface: Supports both single-mode and dual-mode fiber interfaces, offering flexibility in network configurations.
  • Robust Construction: Constructed with high-quality materials and components, ensuring durability and reliability in operation.
  • User-Friendly Interface: Features intuitive button controls including Reset, Power, WPS, and Wireless, facilitating easy operation and management.
  • Temperature and Humidity Tolerance: Operates within a wide temperature range (-5- +55℃) and humidity range (10-90%), suitable for diverse environmental conditions.
  • Certified Quality: Firmware available in English and compliant with CE/ROHS/ISO9001/CCC certifications, guaranteeing quality and safety standards compliance.
