Description
GYFTZY-86~96Xn Optic Cable is Loose sleeve stranded non–metallic reinforced core non–armored flame retardant optical cable
GYFTZY-86~96Xn Optic Cable Product Overview
The structure of the GYFTZY fiber optic cable is that a 250μm fiber is sleeved into a loose tube made of high-modulus material, which is filled with a water-repellent compound. At the center of the core is a glass fibre reinforced plastic (FRP) tube (and filler rope) twisted around the central reinforcing core to form a compact and round core, and the gaps in the core are filled with water-blocking filling. The cable core is extruded with a layer of flame retardant sheath to form a cable.
Optical cables have become an indispensable part of modern communication infrastructure due to their advantages of high bandwidth, low loss, long-distance transmission ability, and anti-electromagnetic interference. With the development of technologies such as 5G, Internet of Things (IoT), and cloud computing, fiber optic cables are playing an increasingly important role in building high-speed and reliable communication networks.

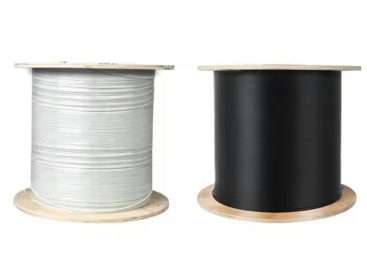

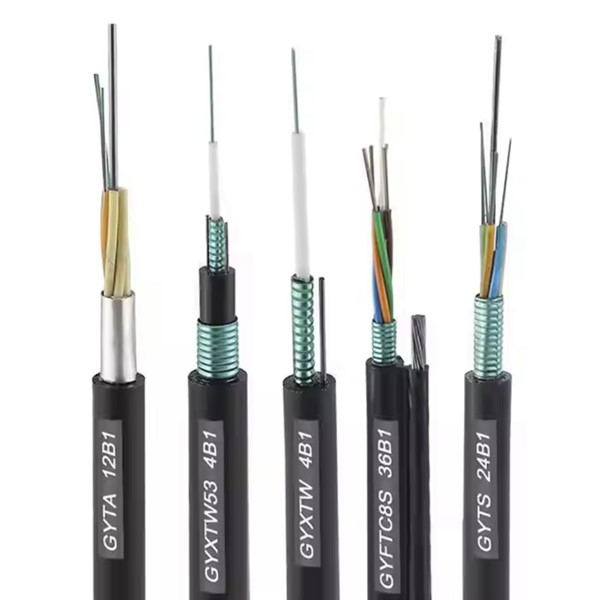

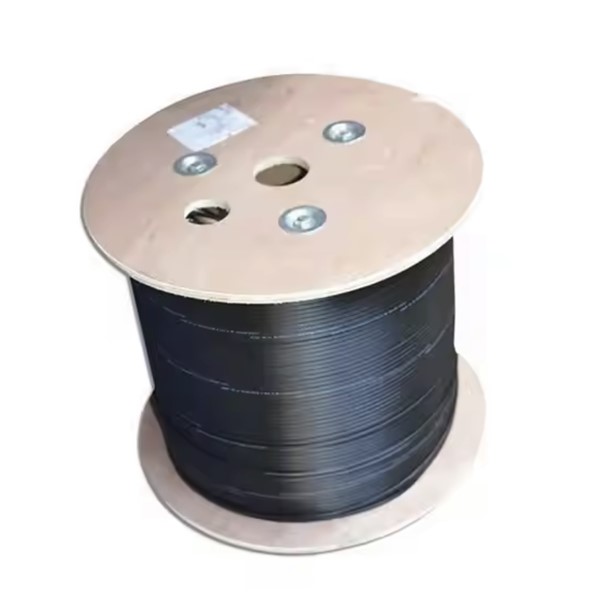

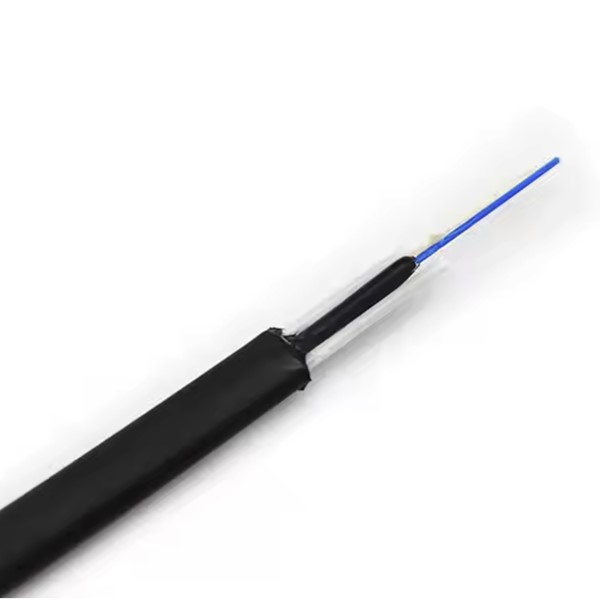

GYFTZY-86~96Xn Optic Cable Product Pictures
GYFTZY-86~96Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km) | Tensile force is allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Bend radius Static/Dynamic (mm) |
|
| GYFTZY-2~6Xn | 2~6 | 1 | 5 | 123 | 400/1000 | 300/1000 | 10D/20D | |
| GYFTZY-8~12Xn | 8~12 | 2 | 4 | 123 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 3 | 123 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 2 | 123 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 1 | 123 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 0 | 123 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 6 | 131 | 600/1500 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 5 | 131 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 4 | 131 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 3 | 131 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 2 | 131 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 1 | 131 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 0 | 131 | ||||
| GYFTZY-44~48Xn | 44~48 | 4 | 2 | 137 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 1 | 137 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 0 | 137 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 7 | 155 | 1000/3000 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 6 | 155 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 5 | 155 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 4 | 155 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 3 | 155 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 2 | 155 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 1 | 155 | ||||
| GYFTZY-44~48Xn | 44~48 | 8 | 0 | 155 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 3 | 162 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 2 | 162 | ||||
| GYFTZY-74~84Xn | 74~84 | 7 | 1 | 162 | ||||
| GYFTZY-86~96Xn | 86~96 | 8 | 0 | 162 | ||||
| GYFTZY-98~108Xn | 98~108 | 9 | 1 | 192 | ||||
| GYFTZY-110~120Xn | 110~120 | 10 | 0 | 192 | ||||
| GYFTZY-122~132Xn | 122~132 | 11 | 1 | 228 | ||||
| GYFTZY-134~144Xn | 134~144 | 12 | 0 | 228 | ||||
| Fiber type | Attenuation （+20℃） | Bandwidth | Numerical Aperture | Fiber optic cable cut-off wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYFTZY-86~96Xn Optic Cable Product Features
●Adopt “SZ“ two–way lamination technology
●Water-blocking paste filling in the process by process, water-blocking in the whole section
●Steel (aluminum) with lap bonding is reliable, high strength, and torsional without cracking
●The residual length of the optical fiber is controlled stably
●After the cable is formed, the additional attenuation of the optical fiber is close to zero, and the dispersion value does not change
●Excellent environmental performance, applicable temperature range is –10°C~ 70°C
●It is suitable for overhead, pipeline, direct burial and other laying methods
GYFTZY-86~96Xn Optic Cable Product And More Optic Cables
All-dielectric self-supporting cable (ADSS)
Fire Resistant Fiber Optic Cable (GJFZY53-FR)
Loose sleeve stranded dry fiber optic cable (DCFA)
Figure 8 Fiber Optic Cable (GYTC8A)
Central Tube Light Armoured Fiber Optic Ribbon Cable (GYDXTW)
Central tube flame retardant fiber optic cable (GYXTZW)
Central tube type non-metallic non-armoured fiber optic cable (GYFXY)
Central tube unarmoured fiber optic cable (GYXY)
Central Tube Light Armoured Fiber Optic Cable (GYXS/GYXTW)
Loose sleeve stranded light armored fiber strip cable (GYDTS)
Stranded loose jacket unarmoured fiber optic cable (GYDTA)
Stranded Loose Jacket Non-Metallic Reinforced Core Non-Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
GYFTZY-86~96Xn Optic Cable Product Applications
●Long–distance communication, inter–office communication and optical cable incoming
●It is especially suitable for power system, multiple lightning and serious electromagnetic interference occasions, and can be used as a fiber optic cable
GYFTZY-86~96Xn Optic Cable Product Structure
