Description
GYFTZY-26~30Xn Optic Cable is Loose sleeve stranded non-metallic reinforcing core non-armored flame retardant optical cable. It is a special type of fiber optic cable, where “GY” represents outdoor fiber optic cable, and “FTZY” represents the specific structure and purpose of fiber optic cable
GYFTZY-26~30Xn Optic Cable Product Overview
GYFTZY fiber optic cable is a non-metallic flame retardant fiber optic cable specially designed for outdoor environment, with waterproof, moisture-proof, ultraviolet-resistant and other characteristics, suitable for power systems, industrial areas and urban environments and other occasions with high requirements for fire protection and mechanical strength.

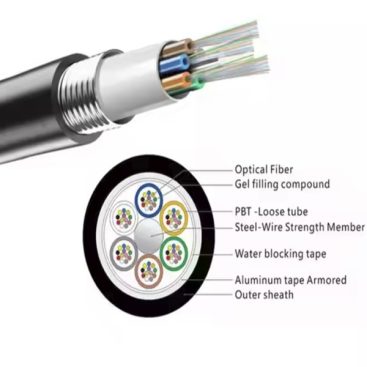

The structure of GYFTZY fiber optic cable includes the following main parts:
- Center Reinforcement: Non-metallic materials (e.g. FRP) avoid the effects of lightning strikes and electromagnetic interference, while simplifying the installation process and eliminating the need for grounding treatment
- Loose tubes: Loose tubes made of high-modulus polyester material are filled with a water-repellent compound to protect the fiber from moisture ingress
- Filling: The gaps in the cable core are filled with water-blocking fillers to ensure the water-blocking performance of the fiber optic cable
- Sheath : The outer layer is made of flame-retardant polyethylene material, which has good flame retardant performance and weather resistance

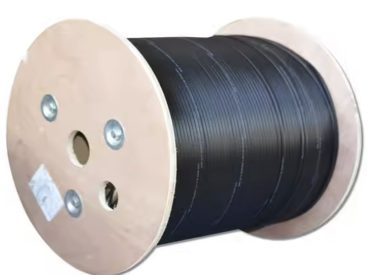

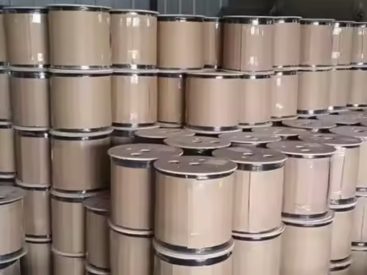

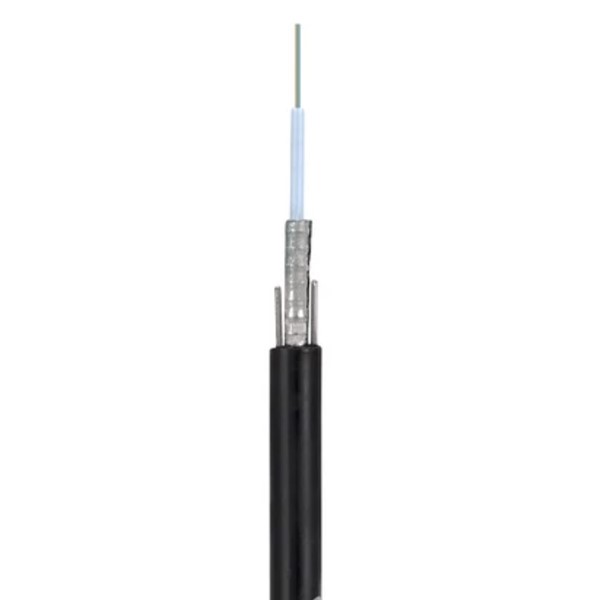

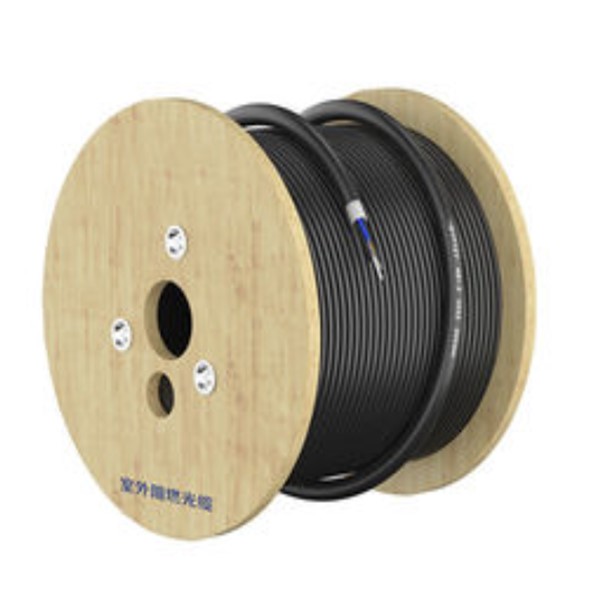

GYFTZY-26~30Xn Optic Cable Product Pictures
GYFTZY-26~30Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km) | Tensile force is allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Bend radius Static/Dynamic (mm) |
|
| GYFTZY-2~6Xn | 2~6 | 1 | 5 | 123 | 400/1000 | 300/1000 | 10D/20D | |
| GYFTZY-8~12Xn | 8~12 | 2 | 4 | 123 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 3 | 123 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 2 | 123 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 1 | 123 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 0 | 123 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 6 | 131 | 600/1500 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 5 | 131 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 4 | 131 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 3 | 131 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 2 | 131 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 1 | 131 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 0 | 131 | ||||
| GYFTZY-44~48Xn | 44~48 | 4 | 2 | 137 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 1 | 137 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 0 | 137 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 7 | 155 | 1000/3000 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 6 | 155 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 5 | 155 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 4 | 155 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 3 | 155 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 2 | 155 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 1 | 155 | ||||
| GYFTZY-44~48Xn | 44~48 | 8 | 0 | 155 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 3 | 162 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 2 | 162 | ||||
| GYFTZY-74~84Xn | 74~84 | 7 | 1 | 162 | ||||
| GYFTZY-86~96Xn | 86~96 | 8 | 0 | 162 | ||||
| GYFTZY-98~108Xn | 98~108 | 9 | 1 | 192 | ||||
| GYFTZY-110~120Xn | 110~120 | 10 | 0 | 192 | ||||
| GYFTZY-122~132Xn | 122~132 | 11 | 1 | 228 | ||||
| GYFTZY-134~144Xn | 134~144 | 12 | 0 | 228 | ||||
| Fiber type | Attenuation （+20℃） | Bandwidth | Numerical Aperture | Fiber optic cable cut-off wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYFTZY-26~30Xn Optic Cable Product Features
• Very good mechanical and temperature properties
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special paste to protect the optical fiber
• Special sheath material with excellent flame retardant properties
• Good compression resistance and softness
• The following measures are taken to ensure the waterproof performance of the cable:
– Single non-metallic center reinforcing core
– The loose tube is filled with a special waterproofing compound
– Full core filling

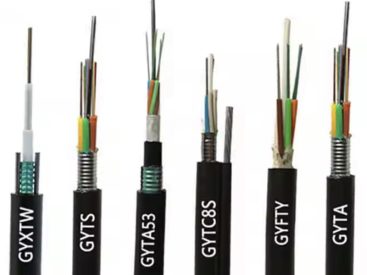

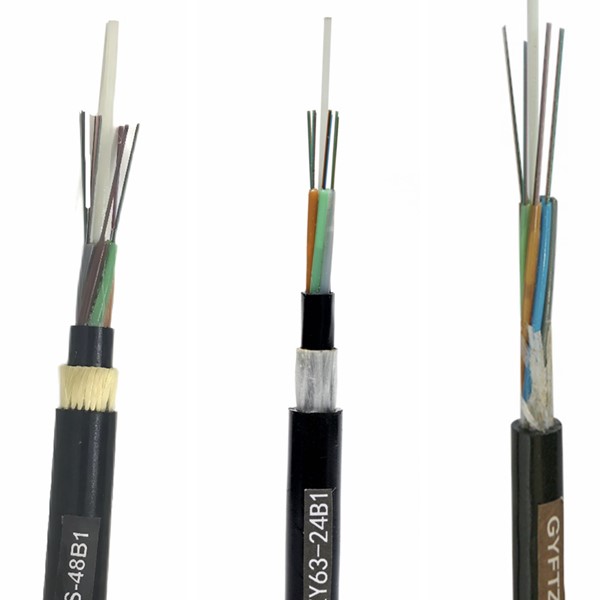

GYFTZY-26~30Xn Optic Cable Product and More Optic Cables
Loose sleeve stranded reinforced core armored flame retardant optical cable(GYTZA53)
Loose sleeve stranded non-metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTA)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
Loose Sleeve Stranded Reinforced Armoured Fiber Optic Cable(GYTA53)
Loose sleeve stranded ordinary armored fiber optic cable(GYTY53)
Loose sleeve stranded light armored fiber optic cable (GYTS)
Stranded loose jacket unarmoured fiber optic cable (GYTA)
GYFTZY-26~30Xn Optic Cable Product Applications
- Power system: As the guide cable of the power optical cable, it is connected with the ADSS and OPGW optical cables and introduced into the equipment room 2.
- Long-distance communication and local communication: suitable for fire retardant, strong electromagnetic interference and lightning protection environments3.
- Tunnels, railways, etc.: Environments that require flame retardant 2.
GYFTZY-26~30Xn Optic Cable Product Structure
