GYFTZY-14~18Xn Optic Cable is Loose sleeve stranded non-metallic reinforced core non-armored flame retardant optical cable
GYFTZY-14~18Xn Optic Cable Product Overview

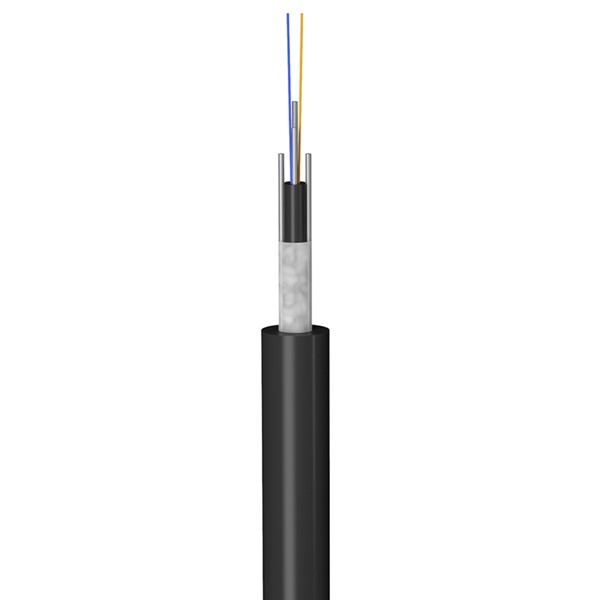

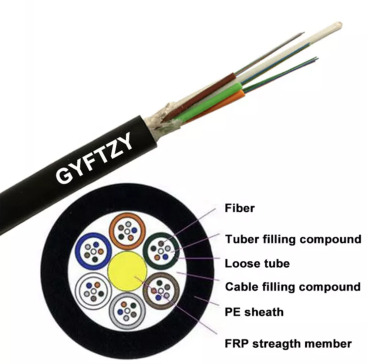

The structure of the GYFTZY fiber optic cable is that a 250μm fiber is sleeved into a loose tube made of high–modulus material, which is filled with a water–repellent compound. At the center of the core is a glass fibre reinforced plastic (FRP) tube (and filler rope) twisted around the central reinforcing core to form a compact and round core, and the gaps in the core are filled with water-blocking filling. The cable core is extruded with a layer of flame retardant sheath to form a cable.
The optical cable is composed of several parts such as cable core, reinforcing wire, filler and sheath, and there are also waterproof layers, buffer layers, insulated metal wires and other components as needed.
The optical cable is composed of three parts: a reinforcing core, a cable core, a sheath and an outer sheath. There are two types of cable core structure: single-core type and multi-core type: single-core type has two types: full type and tube bundle type; There are two types of multi-core types: ribbon and unit. The outer sheath is available in metal armor and non-armor.

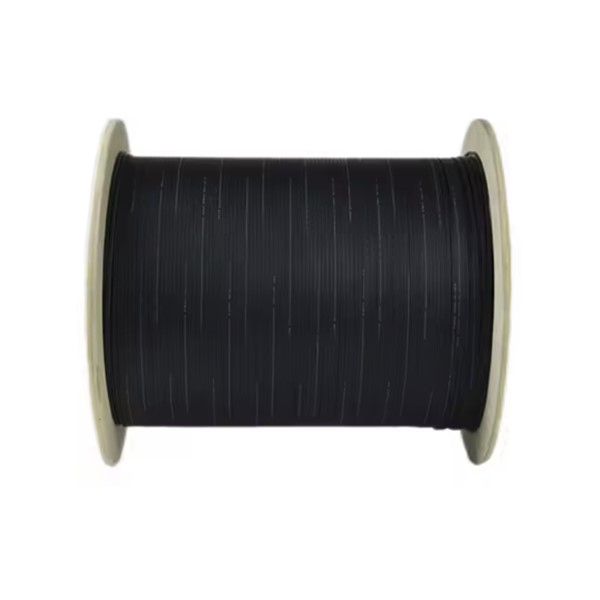

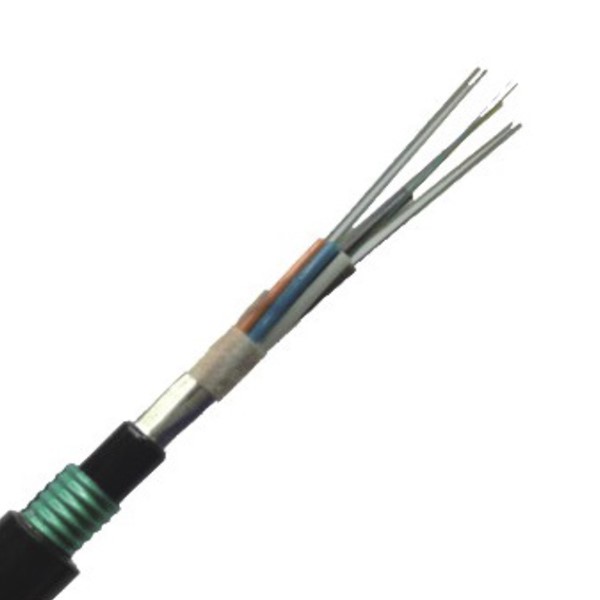

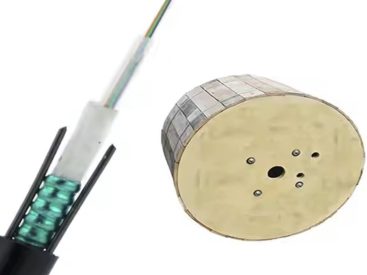

GYFTZY-14~18Xn Optic Cable Product Pictures
GYFTZY-14~18Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km) | Tensile force is allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Bend radius Static/Dynamic (mm) |
|
| GYFTZY-2~6Xn | 2~6 | 1 | 5 | 123 | 400/1000 | 300/1000 | 10D/20D | |
| GYFTZY-8~12Xn | 8~12 | 2 | 4 | 123 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 3 | 123 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 2 | 123 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 1 | 123 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 0 | 123 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 6 | 131 | 600/1500 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 5 | 131 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 4 | 131 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 3 | 131 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 2 | 131 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 1 | 131 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 0 | 131 | ||||
| GYFTZY-44~48Xn | 44~48 | 4 | 2 | 137 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 1 | 137 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 0 | 137 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 7 | 155 | 1000/3000 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 6 | 155 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 5 | 155 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 4 | 155 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 3 | 155 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 2 | 155 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 1 | 155 | ||||
| GYFTZY-44~48Xn | 44~48 | 8 | 0 | 155 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 3 | 162 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 2 | 162 | ||||
| GYFTZY-74~84Xn | 74~84 | 7 | 1 | 162 | ||||
| GYFTZY-86~96Xn | 86~96 | 8 | 0 | 162 | ||||
| GYFTZY-98~108Xn | 98~108 | 9 | 1 | 192 | ||||
| GYFTZY-110~120Xn | 110~120 | 10 | 0 | 192 | ||||
| GYFTZY-122~132Xn | 122~132 | 11 | 1 | 228 | ||||
| GYFTZY-134~144Xn | 134~144 | 12 | 0 | 228 | ||||
| Fiber type | Attenuation （+20℃） | Bandwidth | Numerical Aperture | Fiber optic cable cut-off wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYFTZY-14~18Xn Optic Cable Product Features
