GYFTZY-122~132Xn Optic Cable is Loose sleeve stranded non–metallic reinforced core non–armored flame retardant optical cable featuring high strength, low loss, high bandwidth and environmental protection, it can be widely used in telecommunications, electric power, railway transportation and petrochemical industries
GYFTZY-122~132Xn Optic Cable Product Overview
The structure of the GYFTZY fiber optic cable is that a 250μm fiber is sleeved into a loose tube made of high–modulus material, which is filled with a water–repellent compound. At the center of the core is a glass fibre reinforced plastic (FRP) tube (and filler rope) twisted around the central reinforcing core to form a compact and round core, and the gaps in the core are filled with water-blocking filling. The cable core is extruded with a layer of flame retardant sheath to form a cable.
GYFTZY loose sleeve stranded fiber optic cable is a unique structure of optical cable, which is composed of optical fiber, loose sleeve layer and stranded structure. Among them, optical fiber is the core part of the optical cable, which is responsible for transmitting optical signals. The loose sleeve layer is a protective layer around the optical fiber, which can protect the optical fiber from interference and damage from the external environment. The stranded structure is the outer part of the fiber optic cable, which is made of multiple steel wires stranded to provide strength and tensile performance to the fiber optic cable.

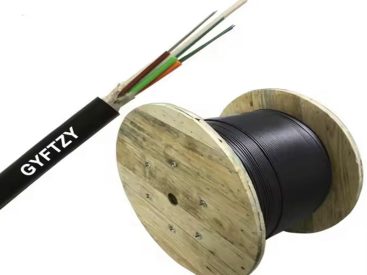

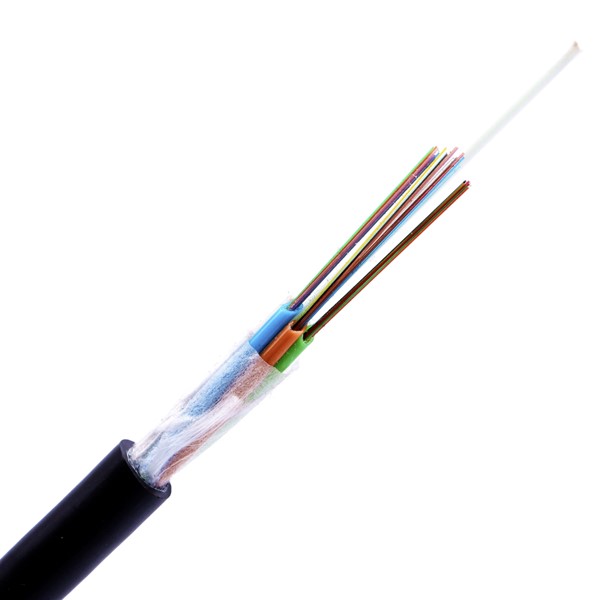

GYFTZY-122~132Xn Optic Cable Product Pictures
GYFTZY-122~132Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km) | Tensile force is allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Bend radius Static/Dynamic (mm) |
|
| GYFTZY-2~6Xn | 2~6 | 1 | 5 | 123 | 400/1000 | 300/1000 | 10D/20D | |
| GYFTZY-8~12Xn | 8~12 | 2 | 4 | 123 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 3 | 123 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 2 | 123 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 1 | 123 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 0 | 123 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 6 | 131 | 600/1500 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 5 | 131 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 4 | 131 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 3 | 131 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 2 | 131 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 1 | 131 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 0 | 131 | ||||
| GYFTZY-44~48Xn | 44~48 | 4 | 2 | 137 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 1 | 137 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 0 | 137 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 7 | 155 | 1000/3000 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 6 | 155 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 5 | 155 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 4 | 155 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 3 | 155 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 2 | 155 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 1 | 155 | ||||
| GYFTZY-44~48Xn | 44~48 | 8 | 0 | 155 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 3 | 162 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 2 | 162 | ||||
| GYFTZY-74~84Xn | 74~84 | 7 | 1 | 162 | ||||
| GYFTZY-86~96Xn | 86~96 | 8 | 0 | 162 | ||||
| GYFTZY-98~108Xn | 98~108 | 9 | 1 | 192 | ||||
| GYFTZY-110~120Xn | 110~120 | 10 | 0 | 192 | ||||
| GYFTZY-122~132Xn | 122~132 | 11 | 1 | 228 | ||||
| GYFTZY-134~144Xn | 134~144 | 12 | 0 | 228 | ||||
| Fiber type | Attenuation （+20℃） | Bandwidth | Numerical Aperture | Fiber optic cable cut-off wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYFTZY-122~132Xn Optic Cable Product Features
●Reasonable design and control of the excess length of the optical fiber in the loose tube, so that the optical cable has excellent tensile performance and temperature performance
●The cable core is filled with grease to ensure the longitudinal water blocking effect
●The whole cable is non-metallic, free from electromagnetic interference
●The sheath is made of low-smoke, halogen-free, flame-retardant polyethylene, which can be used in entry and tunnels.

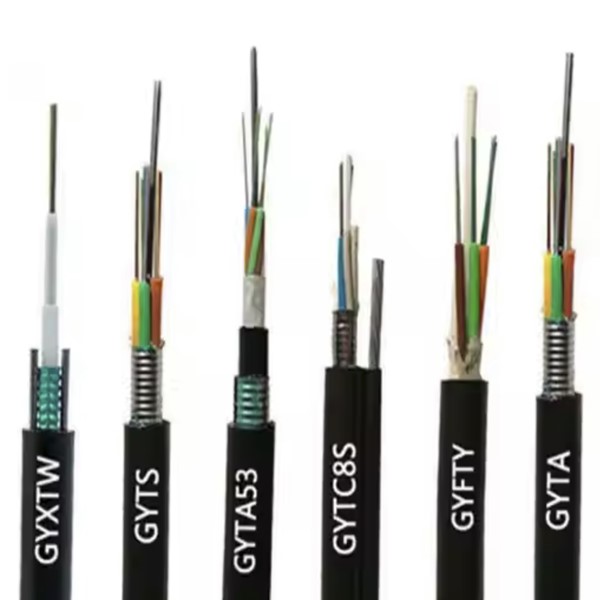

GYFTZY-122~132Xn Optic Cable Product And More Optic Cables
