Description
DC power cables consist of the power cable for a 350 W/600 W DC power module, the power cable for a 1000 W DC power module, and the power cable for a 1200 W DC power module.
DC Power Cable Product Overview
DC power cables consist of the power cable for a 350 W/600 W DC power module, the power cable for a 1000 W DC power module, and the power cable for a 1200 W DC power module. It is applicable to Huawei switches S5731/5731S/5732/5735/5735S/S6730/6730S
Huawei CloudEngine/CE6820/6863/6881/6881E Huawei full-service intelligent routersNetEngine 8000 F1A-8H20Q
Huawei’s next-generation intrusion prevention system IPS6500E
Huawei’s next-generation firewall USG6600/USG6635E for 10 Gigabit campuses
Huawei DC power modules PDC1000S12-DB/DF/CB/CF/PDC1000S56-CB

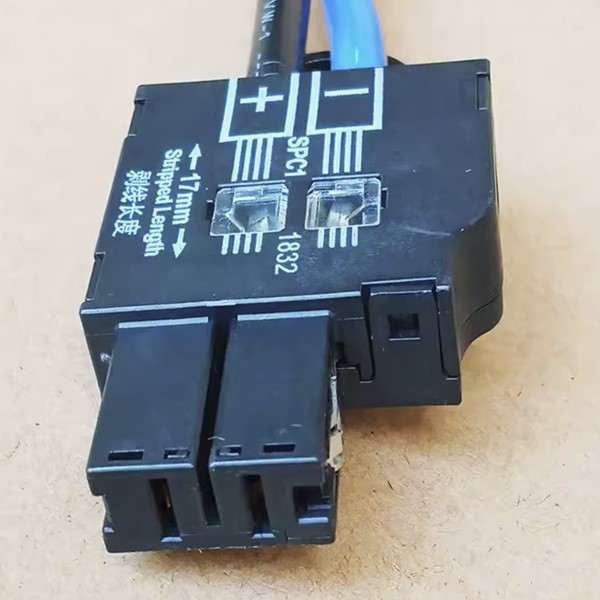

DC Power Cable Product Pictures
DC Power Cable Pin Assignments
Pin assignments of the power cable for a 350 W/600 W DC power module
| X1 | X2 | X3 | Length | Conductor Cross-Sectional Area |
| 2 female | Cord end terminal 4^2 grey | Cord end terminal 4^2 grey | 3 m | 3.332 mm2 (12AWG) |
Pin assignments of the power cable for a 1000 W DC power module
| X1 | X2 | X3 | Length | Conductor Cross-Sectional Area |
| 2 female | Cord end terminal 4^2 grey | Cord end terminal 4^2 grey | 3 m | 4 mm2 (14AWG) |
Pin assignments of the power cable for a 1200 WDC power module
| X1 | X2 | X3 | Length | Conductor Cross-Sectional Area |
| 2 female | Cord end terminal 6^2 black | Cord end terminal 6^2 black | 3 m | 6 mm2 (10AWG) |
