Description
Huawei CE88-D16Q is 16-Port 40GE Interface Card (QSFP+), and Provides data packet processing and traffic management on 16 40GE QSFP+ optical ports. It can be install in any slot of the CE8860-4C-EI, CE8861-4C-EI, or CE8868-4C-EI chassis.

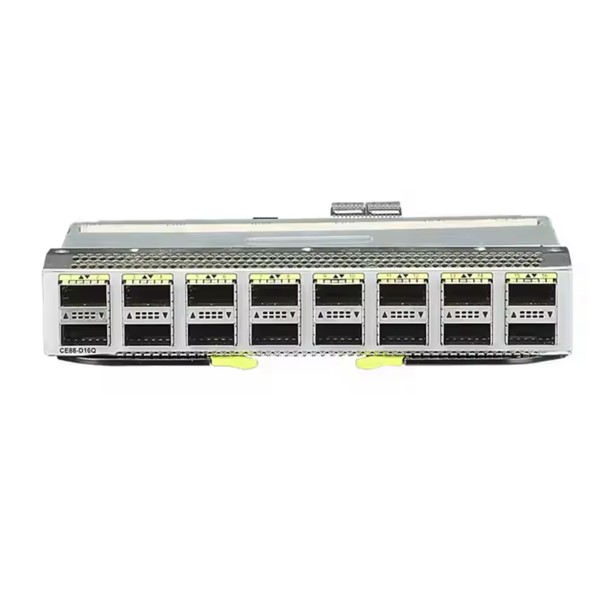

Huawei CE88-D16Q Product Pictures
Huawei CE88-D16Q Product Specifications
| Part Number | 03023CRR |
| Card Model | CE88-D16Q |
| Card Description | 16-port 40GE interface card (QSFP+) |
| Basic function | Provides data packet processing and traffic management on 16 40GE QSFP+ optical ports. |
| Port split | Each QSFP+ optical port can be split into two 10GE ports. The two 10GE cannot work at 1 Gbit/s. With the port split function, each card can provide up to 32 10GE optical ports. |
| Hot swap | Supported |
| Service port stacking | Ports on the card can be used as stack ports. |
| Connector type | Depends on the optical module used. |
| Optical attributes | Depends on the QSFP+ optical module used. See 40GE QSFP+ Optical Modules. |
| Physical specifications | Dimensions (W x D x H): 210.0 mm x 205.2 mm x 41.8 mm (8.3 in. x 8.1 in. x 1.6 in.) Weight: 1.3 kg (2.87 lb) Typical power consumption: 27 W Maximum power consumption: 58 W Typical heat dissipation: 92 BTU/hr Maximum heat dissipation: 198 BTU/hr |
| Environment parameters | Operating temperature: 0°C to 40°C (32°F to 104°F) Relative humidity: 5% RH to 95% RH Storage temperature: -40°C to +70°C (-40°F to +158°F) |
| CE7800, CE6800, and CE5800 series switches and the CE8850EI | Not supported |
| CE8860-4C-EI | Supported in V100R006C00 and later versions |
| CE8861-4C-EI | Supported in V200R005C10 and later versions |
| CE8868-4C-EI |
