ZXHN F673AV2 FTTH

Description

ZXHN F673AV2 FTTH is GPON ONU with 4GE port 1tel port and WIFI Dual-band 2.4G 5GHZ

MODELY	fanahafana					Dimension/pcs
	LAN	Telephone	WIFI	PPPOE	FIRMWARE
F673A v2	4GE	1vilaniny fandraofan-davenona	2.4&5.0	SUPPORT	ENGLISH	240*200*58mm/0.50kgs

ZXHN F673AV2 FTTH Product Overview

ZXHN F673AV2 FTTH is mainly used in the construction of FTTH (fibre-to-the-home) and FTTO (fiber-to-the-office) tranga, and this model provides operators with green environmental protection, azo itokisana ambony, mora fandidiana sy fikojakojana, and meeting various application scenarios. Even gigabit bandwidth brings endless possibilities for users’ home network business.

ZXHN F673AV2 FTTH features high-performance forwarding capabilities to ensure excellent experience with VoIP, Serivisy Internet sy horonan-tsary HD. Ary noho izany, Izy io dia manome vahaolana faran'izay tsara amin'ny terminal sy serivisy manohana ny ho avy ho an'ny fametrahana FTTH.

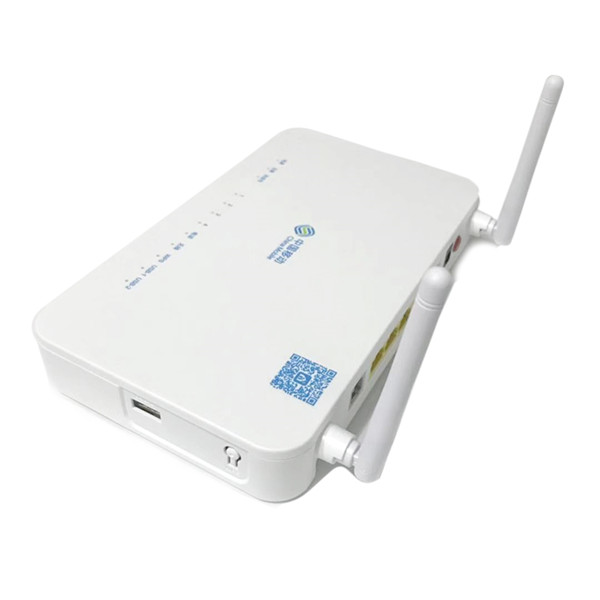

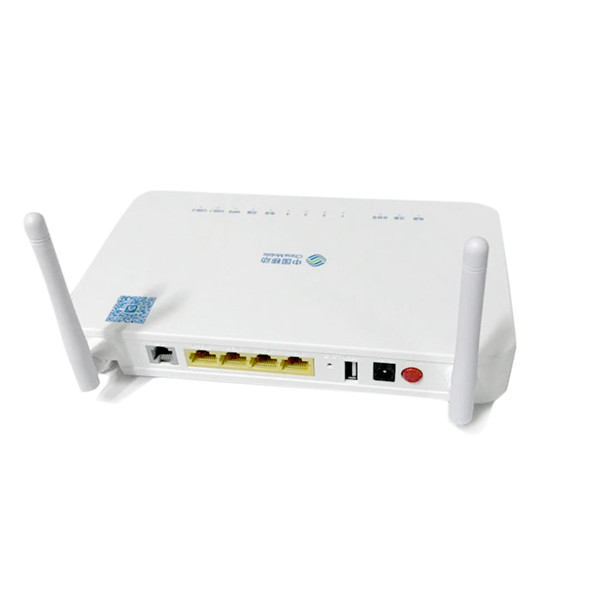

Sary ZXHN F673AV2 FTTH

ZXHN F673AV2 FTTH Toetran'ny vokatra

MODELY	F673V2
Seranana fibre	4GE+1POT+1USB+WIFI,SC single-mode,
halavan'ny onjam	Tx 1310nm, Rx 1490nm
Fibre interface tsara	SC/UPC
RX fahatsapana	<-27dBm (1490nm)
WLAN	IEEE802.11b/g/n,2*2 MIMO, 2.4G/5G WIFI,antena ivelany(2dBi)
	2.4GHz: 2 x 2 MIMO 802.11b/g/n ,5GHz: 2 x 2 MIMO 802.11a/n/ac
LAN	1*10/100/1000Mbps adaptive Ethernet seranana, feno / antsasaky duplex, RJ45 interface tsara
L2 fahaiza-mandroso	Mandefa fonosana amin'ny halavany amin'ny hafainganam-pandehan'ny tariby
IPv4 L3 fahafahana mandroso	2Gbit/s miaraka amin'ny fonosan'ny halavany amin'ny lalana midina
	1Gbit/s miaraka amin'ny fonosana lava rehetra mankany ambony
IPv6 L3 fahafahana mandroso	2Gbit/s miaraka amin'ny fonosan'ny halavany amin'ny lalana midina
	1Gbit/s miaraka amin'ny fonosana lava rehetra mankany ambony
Fomba fanamboarana	NMS, Malagasy, ny TR069
Voice protocol	SIP, H.248
DC hery	Fampidirana adaptatera: 100-240 V AC, 50 – 60 Hz ;
	Output adaptatera: 11 – 14 V DC, 1 ny
bokotra	Mamerina, fahefana
fahefana	≤8W
hetsika	Temperature miasa: -0-+40℃
	hamandoana miasa:5-95%(tsy condensation)
lafiny	250*220*65MG(lava* sakany* haavony)
Lanja afa-karatsaka	≤0.8Kg

ZXHN F673AV2 FTTH Toetran'ny vokatra

GPON endri-javatra

Module optika Class C+

Fomba fanamarinana fiarovana: SN,
tenimiafina na tenimiafina SN+

FEC ambony / ambany

Toetra azo itokisana

Rafitra roa ho fiarovana rindrambaiko

Fiarovana karazana B sy fitadiavana ONT rogue

Fanaraha-maso ny bateria Lithium sy ny fanaraha-maso ny bateria backup

Toetra fikojakojana

Fitantanana eo an-toerana mampiasa tranonkala sy fitantanana lavitra mampiasa TR069 sy OMCI

Fanaraha-maso hery optique

802.1ag Ethernet OAM

Loop-line fitsapana ny seranan-tsambo POTS, antso emulation sy PPPoE dialup emulation

Endri-javatra mitsitsy angovo maitso

Fanitsiana fanjifana herinaratra dynamic

Miaraka amin'ny bateria backup, ny tolotra azo antoka dia azo fidina moramora

ZXHN F673AV2 FTTH sy maodely bebe kokoa

EPON ONT

F401 EPON ONT, 1 LAN English Firmware

F411 EPON ONT, 1 L AN+ 1*VOICE English Firmware SIP

F412 EPON ONT, 2 LAN+VOICE English Firmware SIPF

F420 EPON ONT, 4 LAN+ 2VOICE English Firmware SIP

F460 EPON ONT, 4 L AN+ 2VOICE+WIFI English Firmware SIP

F427 EPON ONT, 4 L AN+ 2VOICE + WlFI English Firmware SIPZTE GPON ONT

GPON ONT

F601 GPON ONT, 1 LAN English Firmware

F612 GPON ONT, 2 L AN+VOICE English Firmware SIP

F600 GPON ONT, 4 L AN English Firmware

F620 GPON ONT, 4 L AN+2VOICE English Firmware SIP

F620G GPON ONT, 4 GE+2VOICE English Firmware SIP

F660 V5.2 GPON ONT, 4 L AN+ 2VOICE+WlFI+USB English Firmware SIP

F609 GPON ONT, 4 GE+2VOlCE+WlFI+USB English Firmware SIP

F660 V6.0 GPON ONT, 1 GE+3FE+2VOlCE+WlFI+USB English Firmware SIP

F625 GPON ONT, 4 LAN+2VOICE+RF(SASANY) English Firmware SIP

F668 GPON ONT, 4 L AN+2FEO+RF(SASANY) +WlFI English Firmware SIP

ZXHN F663NV3a FTTH 1GE+3FE LAN port + 2.4G WIFI English Firmware

ZXHN F663NV9 FTTH 2GE+2FE LAN port + 2.4G WIFI English Firmware

F670L GPON ONU 4GE + 1tel + USB + WIFI tarika roa ac wifi 2.4G &5h

F680 GPON ONU GPON 4GE+1TEL+2.4G&5.0G WIFI+2USB

Ireo singa mifandraika amin'ny ZXHN F673AV2 FTTH

miala tsiny, tsy misy attachement misy !
