Description
ZTE GFXH Service Board is 16-port XG-PON OLT interface board with N1/N2a module for ZTE ZXA10 C600/C650/C680 OLT equipment.
ZTE GFXH Service Board Product Overview
ZTE GFXH Service Board is an 16-port 10G GPON OLT interface board, which cooperates with ONU to realize GPON access service.

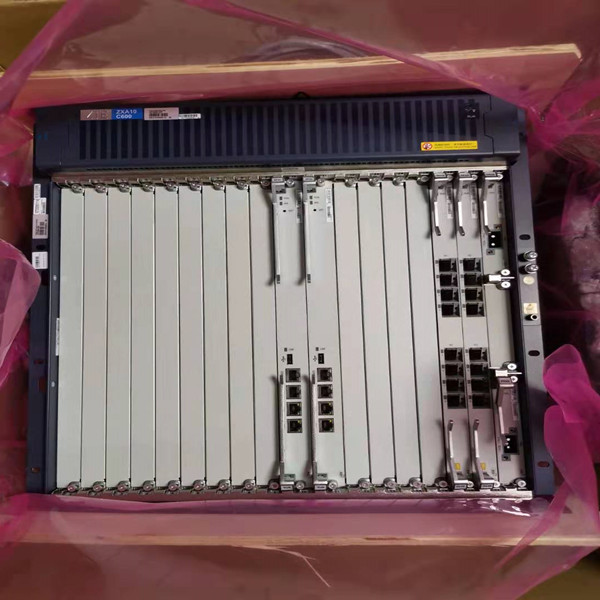

ZTE ZXA10 C600 OLT is a 19-inch, 11U height unified platform with 17 service slots that supports multiple access technologies including GPON, XG-PON, XGS-PON, Combo PON, 10G-EPON and GE P2P, as well as smooth migration to 50G PON, and provides L2 switch, VLAN service, L3 routing protocol and service processing capabilities, supporting flexible configurations and suits multiple application scenarios. Ity OLT ity dia tonga chassis misy board 2xcontrol, 8x10GE uplink, 2tariby herinaratra xDC ary tariby herinaratra 2PCS DC, 1tariby PCS earth.
ZTE GFXH Service Board Sarin'ny vokatra
ZTE GFXH Service Board Specifications vokatra
| Marika | ZTE |
| zavatra | GFXH |
| Port | 16 |
| Type | N1 Module: Single Fibre Bidirectional Optical Module N1 |
| N2a Module: Single Fibre Bidirectional Optical Module N2a | |
| Ny halavan'ny onjam miasa | Tx: 1577 nm, levitra: 1270 nm |
| Karazana Encapsulation | SFP+ |
| Vidin'ny seranan-tsambo | Tx: 10 Gbit/s, levitra: 2.488 Gbit/s |
| Hery Optical Output Minimum | N1 Module: 2dBm |
| N2a Module: 4dBm | |
| Maximum Output Optical Power | N1 Module: 6dBm |
| N2a Module: 8dBm | |
| Maximum Receiver Sensitivity | N1 Module: -27.5dBm |
| N2a Module: -29.50dBm | |
| Karazana mpampitohy optika | SC/UPC |
| Karazana fibre optique | afa-tsy fomba |
| Vokatr'izay | 20.00 km |
| Hery optika saturation | N1 Module: -7dBm |
| N2a Module: -9dBm | |
| Taham-pahafatesana | 8.2dB |
| lanja | 1.68kg |
| lafiny (W x D x H) | 393.1 MG(H) × 23.9 MG(W) × 214 MG(D) |
ZTE GFXH Service Board Product Features
- Manome fanaraha-maso tafahoatra & switch karatra eo amin'ny fiaramanidina fanaraha-maso, ary manohana ny fampifandanjana enta-mavesatra matrix roa eo amin'ny fiaramanidina mandroso.
- Tohano ny ISSU sy ny NSR.
- Manohana karatra GPON 16-port, 16-seranan-tsambo XGS-PON / XG-PON / Combo PON / 10G-EPON karatra, 16-karatra 10GE port sy karatra GE P2P 48 port.
- Manohana serivisy marobe ao anatin'izany ny VoIP, HSI, IPTV, VPN, ary backhaul finday.
- Tohano ny fiasan'ny CFM voafaritry ny 802.1ag.
- Support Type-B/C PON fiarovana, Fiarovana ny serivisy Ethernet sy IP, ary fiarovana tafahoatra ny switch & karatra fanaraha-maso, karatra hery, MPANKAFY, ary ny interface uplink.
- Manome fiarovana fitaovana manankarena, fiarovana ny rafitra, fiarovana ny tambajotra sy ny fiarovana ny serivisy.
ZTE GFXH Service Board Product sy Board Service More
| PON | XG-PON | XGS-PON | XG-PON sy GPON Combo | XGS-PON sy GPON Combo | Port | ||
| ZTE | C300/C320/C350 | GTGO | GTX | GTTO | GTBO | 8 | |
| GTGH | 16 | ||||||
| C600/C650/C680 | GFGH | GFXH | GFTH | GFBN/GFBH | GFCH | 16 | |
ZTE GFXH Service Board Product Applications
