Description
Tady Patch SS-OP-D-LC-M-5 dia tariby Fibre Patch miaraka amin'ny LC/PC,LC/PC,Multi-mode,5m,A1b,2MG
Patch Cord SS-OP-D-LC-M-5 vokatra Overview
Tady fibre optique (fantatra ihany koa amin'ny hoe connector fibre optika) Midika izany fa ny plug connector dia napetraka amin'ny faran'ny roa amin'ny tariby optika mba hahatsapana ny fifandraisana mavitrika amin'ny lalana optika; Ny plug amin'ny tendrony iray dia antsoina hoe pigtail. Optical Fibre Patch Cord/Cable dia mitovy amin'ny coaxial cable, afa-tsy ny tsy misy fiarovana harato. Ao amin'ny afovoany dia misy fotony fitaratra izay ivezivezen'ny hazavana. Amin'ny fibre multimode, ny savaivony ny fototra dia 50μm ~ 65μm, izay tokony ho ny hatevin'ny volon'olombelona. Ny savaivony ny tokana-mode fibre fototra dia 8μm ~ 10μm. Ny ivelan'ny fotony dia voahodidin'ny valopy fitaratra misy fanondro refractive ambany kokoa noho ny fotony mba hitazonana ny fibre ao anaty atiny.. Eo ivelany dia misy palitao plastika manify mba hiarovana ny valopy.
(1) FC karazana fibre optique jumper: Ny fomba fanamafisana ivelany dia satroka metaly, ary ny fomba fastening dia screw buckle. Matetika izy io no ampiasaina amin'ny lafiny ODF
(2) SC karazana fibre optique patch cord: ny connector mifandray amin'ny GBIC Optical Module, mahitsizoro ny akorany, ary ny fomba famatorana dia plug-in sy unplugged pin latch, izay tsy mila ahodina
(3) ST karazana fibre optique jumper: matetika ampiasaina amin'ny fibre optique fizarana frame, boribory ny akorany, ary ny fomba fastening dia screw buckle.
(4) LC karazana fibre optic patch tady: ny connector mampifandray ny SFP Module, izay vita amin'ny jack modular mora ampiasaina (RJ) latching mekanisma

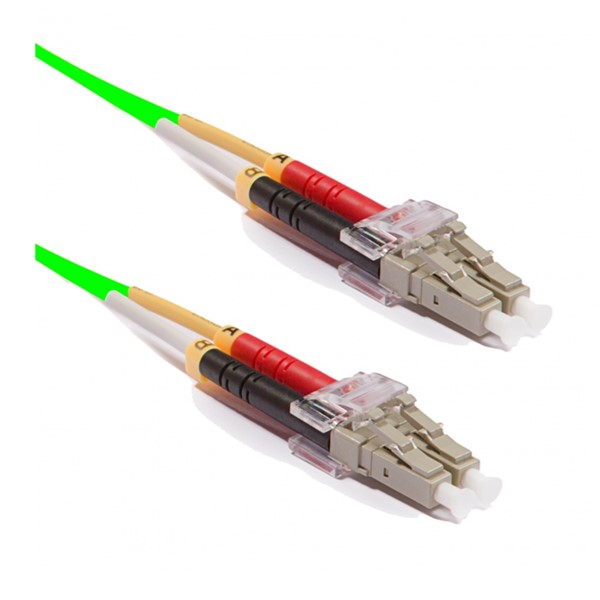

Sarin'ny vokatra SS-OP-D-LC-M-5
Ireo singa mifandraika amin'ny SS-OP-D-LC-M-5
| Karazana mpampitohy | LC UPC mankany LC UPC |
| Fibre Grade | Miondrika Insensitive |
| Isan'ny fibre | Duplex |
| Fibre Mode | OM3 50/125μm |
| halavan'ny onjam | 850/1300nm |
| 10G Ethernet Distance | 300m ny 850nm |
| Fatiantoka fampidirana | ≤0.3dB |
| Fatiantoka miverina | ≥30dB |
| Min. Miondrika Radius (Fibre Core) | 7.5MG |
| Min. Miondrika Radius (Cable fibre) | 20/10D (Dynamic/Static) |
| Attenuation amin'ny 850nm | 3.0dB/km |
| Attenuation amin'ny 1300nm | 1.0dB/km |
| Cable Jacket | Riser (OFNR) |
| Cable ivelany savaivony (nY) | 2.0MG |
| Polarity | ny (Tx) mankany B (levitra) |
| Temperature miasa/fitehirizana | fandidiana: -20 hatramin’ny 70°C (-4 ho 158℉)
fitahirizana: -40 hatramin'ny 80 ℃ (-40 ho 176℉) |
Ireo singa mifandraika amin'ny SS-OP-D-LC-M-5
- Fatiantoka ambany ambany
- Reproducibility tsara
- Ny fatiantoka miverina dia lehibe
- Fampisehoana interplugging tsara
- Toerana tsara
- Mahery tensile fampisehoana
Patch Cord SS-OP-D-LC-M-5 vokatra sy tariby fibre bebe kokoa
| Description | Laharan'ny ampahany | MODELY | Mpandrindra X1 | Mpandrindra X2 | halavan'ny tariby | Miondrika radius |
| Tady Patch,SC/PC,SC/PC,afa-tsy fomba,5m,G.652D,3MG | 14130098 | SS-OP-D-SC-S-5 | SC/PC | SC/PC | 5 m | 30 MG |
| Tady Patch,LC/PC,SC/PC,afa-tsy fomba,5m,G.652D,2MG | 14130193 | SS-OP-LC-SC-S-5 | LC/PC | SC/PC | 5 m | 30 MG |
| Tady Patch,LC/PC-LC/PC,Singlemode,G.652D,2MG,5m | 14130195 | SS-OP-D-LC-S-5 | LC/PC | LC/PC | 5 m | 30 MG |
| Tady Patch,LC/PC,SC/PC,afa-tsy fomba,10m,G.652D,2MG | 14130196 | SS-OP-LC-SC-S-10 | LC/PC | SC/PC | 10 m | 30 MG |
| Tady Patch,LC/PC,FC/PC,afa-tsy fomba,10m,G.652D,2MG | 14130197 | SS-OP-LC-FC-S-10 | LC/PC | FC/PC | 10 m | 30 MG |
| Tady Patch,LC/PC,LC/PC,afa-tsy fomba,10m,G.652D,2MG | 14130199 | SS-OP-D-LC-S-10 | LC/PC | LC/PC | 10 m | 30 MG |
| Tady Patch,LC/PC,FC/PC,Multi-mode,10m,A1b,2MG | 14130221 | SS-OP-LC-FC-M-10 | LC/PC | FC/PC | 10 m | 30 MG |
| Tady Patch,LC/PC,LC/PC,Multi-mode,10m,A1B,2MG | 14130222 | SS-OP-D-LC-M-10 | LC/PC | LC/PC | 10 m | 30 MG |
| Tady Patch,LC/PC,SC/PC,Multi-mode,10m,A1b,2MG | 14130223 | SS-OP-LC-SC-M-10 | LC/PC | SC/PC | 10 m | 30 MG |
| Optical adapter-LC/PC-LC/PC-Blue-Shell:Plastic-Sleeve:Zirconia-Square | 14130248 | Sary QW1P0FIBER06 | LC/PC | LC/PC | – | – |
| Tady Patch,LC/PC,LC/PC,afa-tsy fomba,20m,G.652D,2MG | 14130251 | SS-OP-D-LC-S-20 | LC/PC | LC/PC | 20 m | 30 MG |
| Tady Patch,LC/PC,SC/PC,Multi-mode,30m,A1b,2MG | 14130275 | SS-OP-LC-SC-M-30 | LC/PC | SC/PC | 30 m | 30 MG |
| Tady Patch,LC/PC,SC/PC,afa-tsy fomba,30m,G.652D,2MG | 14130276 | SS-OP-LC-SC-S-30 | LC/PC | SC/PC | 30 m | 30 MG |
| Tady Patch,LC/PC,SC/PC,Multi-mode,20m,A1b,2MG | 14130279 | SS-OP-LC-SC-M-20 | LC/PC | SC/PC | 20 m | 30 MG |
| Tady Patch,LC/PC,SC/PC,afa-tsy fomba,20m,G.652D,2MG | 14130280 | SS-OP-LC-SC-S-20 | LC/PC | SC/PC | 20 m | 30 MG |
| Tady Patch,LC/PC,LC/PC,Multi-mode,20m,A1b,2MG | 14130295 | SS-OP-D-LC-M-20 | LC/PC | LC/PC | 20 m | 30 MG |
| Tady Patch,LC/PC,LC/PC,Multi-mode,5m,A1b,2MG | 14130296 | SS-OP-D-LC-M-5 | LC/PC | LC/PC | 5 m | 30 MG |
| Tady Patch,LC/PC,SC/PC,Multi-mode,50m,A1b,2MG | 14130311 | SS-OP-LC-SC-M-50 | LC/PC | SC/PC | 50 m | 30 MG |
| Tady Patch,LC/PC,SC/PC,afa-tsy fomba,50m,G.652D,2MG | 14130312 | SS-OP-LC-SC-S-50 | LC/PC | SC/PC | 50 m | 30 MG |
| Tady Patch,LC/PC,LC/PC,afa-tsy fomba,6m,G.652D,2MG | 14130360 | SS-OP-D-LC-S-6 | LC/PC | LC/PC | 6 m | 30 MG |
| Fizarana Cable Optical,MPO/PC,MPO/PC,MULTI-MODE,2m,8 CORES,0m/0m,GJFH-8A1A.2(OM3),3.5MG,LSZH,43MM SHORT MPO,MITONDRA INDRINDRA | 14130823 | Sary F00MPMP01 | MPO/PC | MPO/PC | 2 m | 18 MG |
| Fizarana Cable Optical,MPO/PC,MPO/PC,Multimode(OM3, Miondrika Insensitive),30m,8 Cores,0m/0m,GJFH 8A1a,3.5MG,LSZH,42mm MPO fohy,an-trano | 14130823-002 | FMMM03001 | MPO/PC | MPO/PC | 30 m | 17.5 MG |
| Fizarana Cable Optical,MPO/PC,MPO/PC,Multimode(OM3, Miondrika Insensitive),100m,8 Cores,0m/0m,GJFH 8A1a,3.5MG,LSZH,42mm MPO fohy,an-trano | 14130823-003 | FMMM10001 | MPO/PC | MPO/PC | 100 m | 17.5 MG |
| Fizarana Cable Optical,MPO/PC,MPO/PC,MULTI-MODE,15m,8 CORES,0m/0m,GJFH-8A1A.2(OM3),3.5MG,LSZH,60mm MPO,Miondrika tsy mahatsapa | 14130923 | SS-OP-D-MPO12-M-15 | MPO/PC | MPO/PC | 15 m | 18 MG |
| Fizarana Cable Optical,MPO/PC,MPO/PC,Multi-mode,10m,8 cores,GJFH-8A1a.3(OM4),3.5MG,0MG,LSZH,Miondrika Insensitive | 14134486 | MPO12-MPO12-M4-10 | MPO/PC | MPO/PC | 10 m | |
| LC/UPC LC/APC SC/UPC SC/APC FC/APC FC/UPC ST/UPC LSH/APC MTR/UPC G.657.A1 G.657.A2 G.652.D BIF G.651 |
||||||
