Description
Huawei SmartAX EA5800 X17 offers GPON, XG-PON, XGS-PON, P2P GE, and 10GE access, and supports POL, FTTH, FTTB, and FTTC network construction modes.
Huawei SmartAX EA5800 Series appears in 4 sizes: EA5800-X17 EA5800-X15 EA5800-X7 EA5800-X2
Huawei SmartAX EA5800 X17 Product Overview
Huawei SmartAX EA5800 X17 is one of Huawei EA5800 series Based on the distributed architecture, it provides users with broadband, wireless, Video, surveillance and other multi-service unified bearer platforms;Huawei SmartAX EA5800 X17 offers GPON, XG-PON, XGS-PON, P2P GE, and 10GE access, and supports POL, FTTH, FTTB, and FTTC network construction modes. . Ary noho izany, it simplifies network architecture and reduces OPEX.it provides a unified carrying platform for multiple services over one fibre network, such as broadband, wireless, Video, ary ny fanaraha-maso.

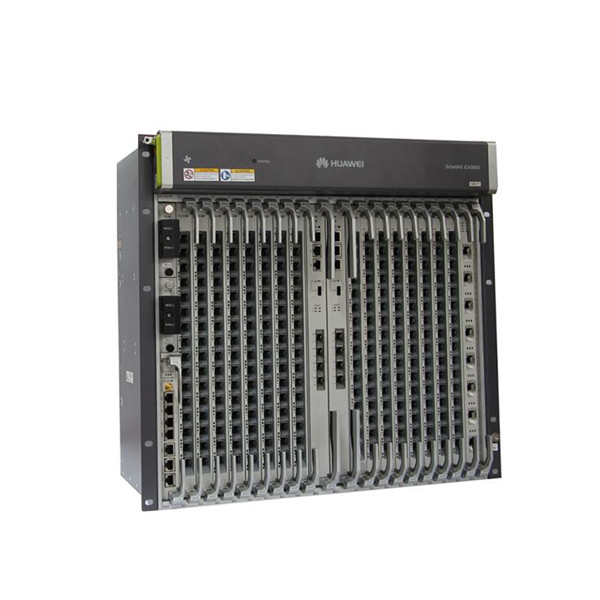

Huawei SmartAX EA5800 X17 Product Pictures
Huawei SmartAX EA5800 X17 Product Specifications
| Marika | Huawei |
| MODELY | EA5800-X17 |
| Supported Cabinet | N63E-22 |
| Board Configuration | Control board slots |
| Service board or upstream interface board slots | |
| Universal interface board slot | |
| Powerboard slots | |
| lafiny | 11U ambony ary 21 santimetatra ny sakany |
| (W x D x H) | Tsy tafiditra ao anatin'izany ny brackets: 493 mm x 287 mm x 486 MG |
| Including mounting brackets: 535 mm x 287 mm x 486 MG | |
| Maximum Input Current | 60ny |
| Fomba famatsiana herinaratra | Fanohanana herinaratra DC (roa ho an'ny backup) |
| Sahan'ny Voltage miasa | -38.4V hatramin'ny -72V DC |
| Volavolan'ny naoty | -48V/-60V |
| Fahaizana manova ny birao fanaraha-maso (fomba fizarana entana) | 3.6 Tbit/s |
| Bandwidth ambony indrindra isaky ny Service Slot (fomba fizarana entana) | 100 Gbit/s |
| System Layer 2 Ny tahan'ny fandefasana fonosana (fomba fizarana entana) | 5,298 solombavambahoaka |
| GPON seranan-tsambo / XG(S)-Ports PON | 272 |
| Seranan-tsambo GE/FE | 816 |
| 10 GE Ports | 408 |
Huawei SmartAX EA5800 X17 Product Features
- Based on the distributed architecture, it provides users with broadband, wireless, Video, surveillance and other multi-service unified bearer platforms;
- Providing GPON, XG-PON, XGS-PON, GE and 10GE access, support multiple network construction modes including POL, FTTH, FTTB, FTTC, realize a fibre-optic network coverage, simplifying network architecture and reduce OPEX ;
- Supporting three major product specifications, large, medium and small, to meet the needs of different scenarios.
- Supporting GPON, 10G PON, smoothly evolve to 40G/100G PON
- Supporting 4*GE/10GE upstream ports embedded in Main Control Board MPSC
- Supporting 16 port GPON interface card GPHF, GPSF
- Supporting 8 port 10GPON interface card XGHD, TWED
- Supporting 262143 adiresy MAC, 65536 tabilao ARP
- Supporting over 8 times MAC address and ARP table more than MA5600T
- Supporting 1:64 eOTDR
- Supports DOCSIS 3.1 Malagasy
Huawei SmartAX EA5800 X17 and EA5800-X15 EA5800-X7 EA5800-X2
| # | EA5800-X17 | EA5800-X15 | EA5800-X7 | EA5800-X2 |
| Kabinetra tohanana | N63E-22 | N66E-22 | N63E-22, N66E-22 | N63E-22 |
| lafiny | 11U ambony ary 21 santimetatra ny sakany | 11U ambony ary 19 santimetatra ny sakany | 6U ambony ary 19 santimetatra ny sakany | 2U ambony ary 19 santimetatra ny sakany |
| (W x D x H) | Tsy tafiditra ao anatin'izany ny brackets: 493 mm x 287 mm x 486 MG | Tsy tafiditra ao anatin'izany ny brackets: 442 mm x 287 mm x 486 MG | Tsy tafiditra ao anatin'izany ny brackets: 442 mm x 268.7 mm x 263.9 MG | Tsy tafiditra ao anatin'izany ny brackets: 442 mm x 268.7 mm x 88.1 MG |
| Lanja ambony indrindra (ao anatin'izany ny fametahana brackets) | 45 kg | 35 kg | 26 kg | 9.4 kg |
| Maximum Input Current | 60ny | 60ny | 40ny | Famatsiana herinaratra DC: 20ny |
| famatsiana herinaratra AC: 8ny | ||||
| Fomba famatsiana herinaratra | Fanohanana herinaratra DC (roa ho an'ny backup) | Fanohanana herinaratra DC (roa ho an'ny backup) | Fanohanana herinaratra DC (roa ho an'ny backup) | Fanohanana herinaratra DC (roa ho an'ny backup) |
| famatsiana herinaratra AC + bateria ho an'ny backup | ||||
| Sahan'ny Voltage miasa | -38.4V hatramin'ny -72V DC | -38.4V hatramin'ny -72V DC | -38.4V hatramin'ny -72V DC | Famatsiana herinaratra DC: -38.4V hatramin'ny -72V |
| famatsiana herinaratra AC: 100V hatramin'ny 240 V | ||||
| Volavolan'ny naoty | -48V/-60V | -48V/-60V | -48V/-60V | Famatsiana herinaratra DC: -48V/-60V |
| famatsiana herinaratra AC: 110V/220V | ||||
| Fahaizana manova ny birao fanaraha-maso (fomba fizarana entana) | 3.6 Tbit/s | 3.6 Tbit/s | 3.6 Tbit/s | 480 Gbit/s |
| Bandwidth ambony indrindra isaky ny Service Slot (fomba fizarana entana) | 100 Gbit/s | 100 Gbit/s | 100 Gbit/s | 80 Gbit/s |
| System Layer 2 Ny tahan'ny fandefasana fonosana (fomba fizarana entana) | 5,298 solombavambahoaka | 5,298 solombavambahoaka | 5,298 solombavambahoaka | 714 solombavambahoaka |
| Isan'ny ambony indrindra amin'ireo mpampiasa horonan-tsary 4K miaraka | 16,000 | 16,000 | 8,000 | 2,000 |
| Isan'ny adiresy MAC ambony indrindra | 262,143 | 262,143 | 262,143 | 262,143 |
| Isan'ny ARP/Route ambony indrindra | 131,072 | 131,072 | 131,072 | 131,072 |
| GPON seranan-tsambo / XG(S)-Ports PON | 272 | 240 | 112 | 32 |
| Seranan-tsambo GE/FE | 816 | 720 | 336 | 96 |
| 10 GE Ports | 408 | 360 | 168 | 16 |
Huawei SmartAX EA5800 X17 Ordering Info
| Sokajy | MODELY | Description |
| Control Boards | H902MPLAE | Huawei SmartAX EA5800 X17 Main Processing Board |
| H901MPSCE | Huawei SmartAX EA5800 X17 Main Processing Board | |
| Universal Interface Boards | H901CIUA | Huawei SmartAX EA5800 X17 Combo Interface Transfer Board |
| Service Boards | H901XGHD | Huawei SmartAX EA5800 X17 8-port Advanced XG-PON OLT Interface Board |
| H901OGHK | Huawei SmartAX EA5800 X17 48-port Advanced GE/FE Optical Interface Board | |
| H901OXHD | Huawei SmartAX EA5800 X17 8-port Advanced 10GE Optical Interface Board | |
| H902OXHD | Huawei SmartAX EA5800 X17 8-port Advanced 10GE Optical Interface Board | |
| H901GPSFE | Huawei SmartAX EA5800 X17 16-port GPON OLT Interface Board | |
| H901OXEG | Huawei SmartAX EA5800 X17 24 port Aggregationed 10GE/GE Optical Interface Board | |
| H901TWEDE | Huawei SmartAX EA5800 X17 8-port Enhanced XGS-PON OLT Interface Board | |
| H901XSHF | Huawei SmartAX EA5800 X17 16-port XGS-PON OLT Interface Board | |
| H902GPHF | Huawei SmartAX EA5800 X17 16-port GPON OLT Interface Board | |
| Upstream Interface Board | H901NXED | Huawei SmartAX EA5800 X17 8-port Enhanced 10GE Uplink Interface Board |
| Power Boards | H901PILA | Huawei SmartAX EA5800 X17 Power Transfer Board |
| H901PISA | Huawei SmartAX EA5800 X17 Power Transfer Board | |
| H901PISB | Huawei SmartAX EA5800 X17 Power Transfer Board | |
| H902PISB | Huawei SmartAX EA5800 X17 Power Transfer Board | |
| FAN Monitoring Boards | H901FMLA | Huawei SmartAX EA5800 X17 Huawei SmartAX EA5800 X17-X17 fan tray |

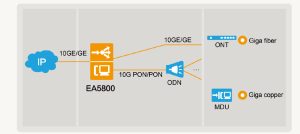

Huawei SmartAX EA5800 X17 Product Applications
