Apraksts
SIMCom SIM7600SA-H-PCIE is a LTE Cat 4 module supporting LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc and delivering maximum 150Mbps downlink rate and 50Mbps uplink rate.
SIMCom SIM7600SA-H-PCIE Product Overview
SIMCom SIM7600SA-H-PCIE adopts mini PCIE form factor, and integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, and supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.
Meanwhile, SIMCom SIM7600SA-H-PCIE integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, rūpnieciskie maršrutētāji, and remote diagnostics etc.

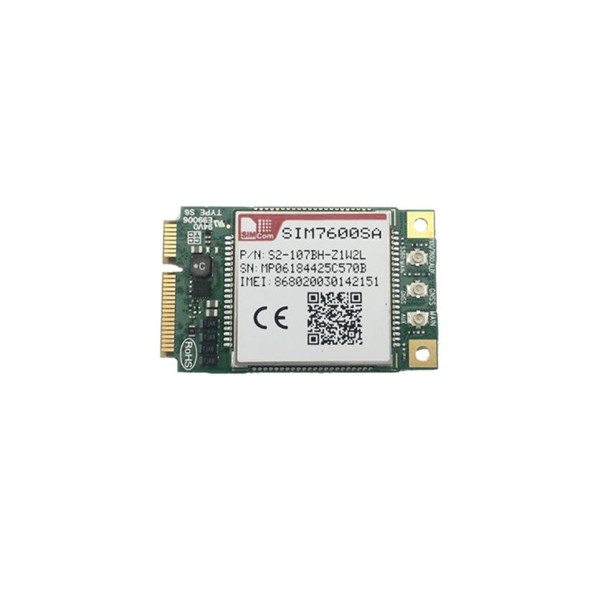

SIMCom SIM7600SA-H-PCIE Product Picture
SIMCom SIM7600SA-H-PCIE Product Specifications
| Produkts | SIM7600SA-H-PCIE | |
| Formas faktors | Mini PCIE | |
| Izmēri(mm) | 50.8*31*5.35 | |
| Frekvenču joslas | LTE-FDD | B1/B2/B3/B4/B5/ |
| B7/B8/B28/B66 | ||
| LTE-TDD | B40 | |
| WCDMA | B1/B2/B5/B8 | |
| GSM | 850/900/1800/1900MHz | |
| Temperatūra | -40℃ ~ +85℃ | |
| GNSS | Neobligāti | |
| Barošanas spriegums(V) | 3.0~ 3.6 | |
| Elektrības patēriņš(mA) | LTE | 2.3 |
| WCDMA, | 3.3 | |
| DRX=9 | ||
| GSM,BS_PA_MFRMS=2 | 2.8 | |
| LTE(Mb/s) | 150(DL)/50(UL) | |
| HSPA+(Mb/s) | 42(DL)/5.76(UL) | |
| WCDMA(Kb/s) | 384(DL)/384(UL) | |
| GPRS/EDGE(Kb/s) | 236.8(DL)/236.8(UL) | |
| Protokols | TCP/IP/IPV4/IPV6/ | |
| Multi-PDP/FTP/FTPS/ | ||
| HTTP/ HTTPS/DNS | ||
| TLS | ● | |
| File System | ● | |
| Audio Record/Play | o | |
| TTS | o | |
| DTMF | o | |
| LBS | ● | |
| PĒJA | ● | |
| Jamming Detection | ● | |
| Android RIL | Android 5.0/6.0/ | |
| 7.0/8.0/9.0 | ||
| USB draiveris | Microsoft Windows | |
| 2007/8/10 | ||
| Linux/Android | ||
| WWAN (RNDIS) | ● | |
| MBIM | Win8/Win10 | |
| NDIS | Linux/Windows 7/8/10 | |
| Open Linux | o | |
| Programmaparatūras jaunināšana | USB/FOTA | |
| SIM karti | 1.8V/3.0V | |
| UART | ● | |
| USB | ● | |
| PCM | o | |
| Analog Audio | o | |
| Embedded SIM card socket | o | |
| Diversity Receiver | ● | |
| Regulējošais | RoHSREACHFCCNCCACMACE(SARKANS)Anatels | |
SIMCom SIM7600SA-H-PCIE Product Features
- Mini-PCIE interface with strong compatibility
- Multi-constellation GNSS receiver support
- Suitable for LTE, UMTS and GSM networks with global coverage
- Abundant software functions: PĒJA, LBS, TLS, VoLTE
- AT commands of the SIM7600-H-PCIE series are compatible with the SIM7500/SIM7600 series modules
SIMCom SIM7600SA-H-PCIE and More 7600 Series Modules
SIMCom SIM7600SA-H-PCIE Product Applications
