Apraksts

SIMCom SIM7600JC-H 4G Module is a LTE Cat 4 module with LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc and delivers 150Mbps downlink rate and 50Mbps uplink rate.

SIMCom SIM7600JC-H 4G Module Product Overview

SIMCom SIM7600JC-H 4G Module is a LTE Cat 4 module delivering 150Mbps downlink rate and 50Mbps uplink rate. It adopts LCC1 form factor and compatible with SIM5320/SIM5360 series (UMTS/HSPA+ modules), and SIM7600 series (LTE modules), which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs. Kas vēl, SIM7600-H integrates main industrial standard interfaces, with powerful expansibility, ieskaitot bagātīgas saskarnes, piemēram, UART, USB, 2C, GPIO. Tāpēc, it suitable for main IoT applications such as telematics, surveillance devices and remote diagnostics etc.

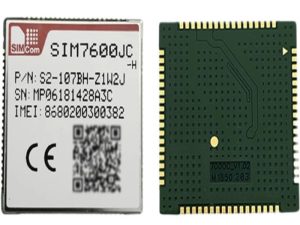

SIMCom SIM7600JC-H 4G Module Product Pictures

SIMCom SIM7600JC-H price and specs lcc cat4 ycictSIMCom SIM7600JC-H 4g lte module price and specs ycict

SIMCom SIM7500SA LGA Module price and specs LTE Cat 1 module LGA max 10Mbps downlink and 5Mbps uplink ycictSIMCom SIM7600G-H R2 4G Module simcom cat4 ycict

SIMCom SIM7600JC-H 4G Module Product Specifications

Zīmols SIMCom
Produkts SIM7600JC-H
Formas faktors LCC, 87PIN
Izmēri(mm) 30.0*30.0*2.9
Frekvenču joslas LTE-FDD B1/B3/B8/B18/B19/B26
LTE-TDD
WCDMA
GSM
Temperature GNSS -40℃ ~ +85℃ Optional
Barošanas spriegums(V) 3.4~ 4.2
Elektrības patēriņš(mA) LTE 2.3
WCDMA, DRX=9
GSM,BS_PA_MFRMS=2
LTE(Mb/s) 150(DL)/50(UL)
Protokols TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/HTTPS/DNS
Android RIL Android 5.0/6.0/ 7.0/8.0/9.0
USB draiveris Microsoft Windows 7/8/10 Linux/Android
MBIM Win8/Win10
NDIS Linux/Windows 7/8/10
Programmaparatūras jaunināšana USB/FOTA
SIM karti 1.8V/3.0V
Regulējošais Telec/JATE/RoHS/REACH
Pārvadātājs Docomo/Softbank

SIMCom SIM7600JC-H 4G Module Product Features

  • LCC¹ form factor with abundant interfaces
  • Daudzas programmatūras funkcijas: PĒJA, LBS, TLS, VoLTE*
  • Multi-constellation GNSS receiver support*
  • Piemērots LTE, UMTS and GSM networks with global coverage
  • AT commands of the SIM7600-H series are compatible with the SIM7500/SIM7600 series modules

SIMCom SIM7600JC-H 4G Module Product and more models

SIM7600A-H LCC/LCC+LGA 87/119Pin
SIM7600V-H LCC/LCC+LGA 87/119Pin
SIM7600SA-H LCC/LCC+LGA 87/119Pin
SIM7600JC-H LCC/LCC+LGA 87/119Pin
SIM7600E-H LCC/LCC+LGA 87/119Pin
SIM7600NA-H LCC/LCC+LGA 87/119Pin
SIM7600G-H R2 LCC/LCC+LGA 87/119Pin

SIMCom SIM7600JC-H 4G Module Product Applications
