Apraksts
Huawei SFP EPON OLT PX20+ is 1.25G EPON Transceiver Module (SMF, 1490nmTx/1310nmRx, 20km, SC)。This SFP Module supports data rate of typical 1.25 Gbps for GEPON OLT application up to 20km transmission distance, it’s designed meeting with Telecom EPON equipment technical requirement like H801EPBA, H802EPBC 8ports: H802EPBD, H805EPBD, H806EPBD, H807EPBD, H808EPSD 16ostas: H803EPFD
Huawei SFP EPON OLT PX20++ Product Overview
Huawei SFP EPON OLT PX20++ is designed for low-cost point to multipoint (P2MP) Šķiedra uz mājām, Business or Curb (FTTX) systems employing high-speed burst mode TDM receivers/transmitters in 1250 Mb/s symmetrical duplex data links. The device is based on the IEEE 802.3ah specification for bi-directional communications over a single fibre and incorporates a high perform

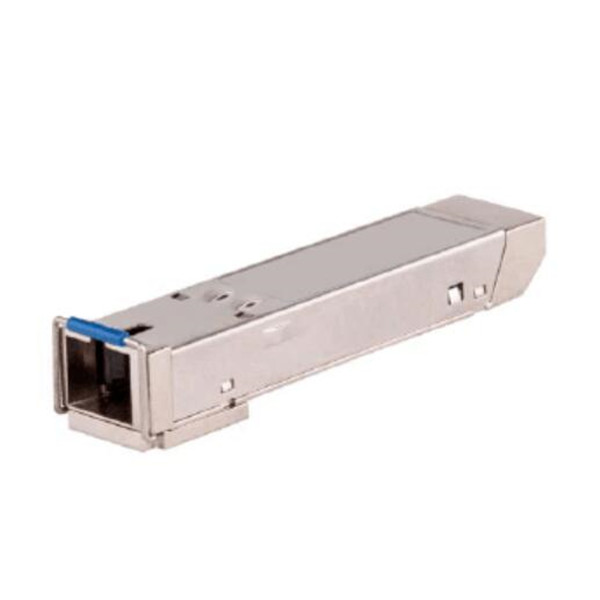

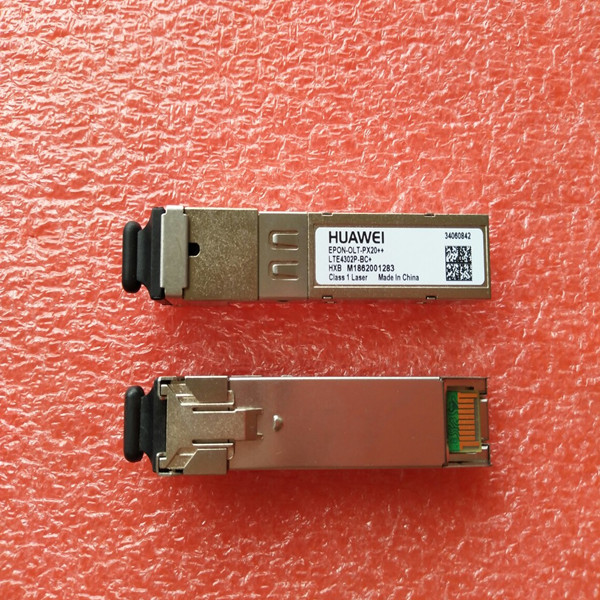

Huawei SFP EPON OLT PX20+ Product Pictures
Huawei SFP EPON OLT PX20++ Product Specifications
|
Zīmols |
Huawei |
| Modeļa numurs: |
EPON OLT PX20++ |
| Viļņa garums: |
1490TX/1310RX |
| Data transfer rate: |
1.25Gbps/1.25Gbps |
| Attālums: |
20KM |
| Fibre Connector: |
SC |
| Enerģijas padeve | 3.3V |
| Darbības temperatūra | 0℃-70℃ |
| Modelis | PX20+,PX20++,PX20+++ |
| Pārraides attālums | 10/20/30km |
Huawei SFP EPON OLT PX20++ Product Features
- SFP with SC/PC Connector Transceiver
- 1490 nm DFB Tx
- 1310 nm APD Rx
- Digital diagnostics SFF-8472 Compliant
- 1250 Mbps continuous mode Transmission
- 1250 Mbps Burst mode receiver Data Rate
- Provide fast RSSI function
- Operation case temperature: -5~70°C
- Complies with RoHS directive (2002/95/EK
Huawei SFP EPON OLT PX20++ and More Products
| modelis | MA5680T MA5683T MA5608T |
| Uplink board | H801GICF H801GICG H801GICK |
| Module of uplink board | SFP, SFP(RJ-45), CSSFP, SFP+, XFP |
| Vadības panelis | SCUL SCUK/SCUN SCUN |
| EPON Service board | 4ostas: H801EPBA, H802EPBC |
| 8ostas: H802EPBD, H805EPBD, H806EPBD, H807EPBD, H808EPSD | |
| 16ostas: H803EPFD | |
| Module of EPON service board | PX20 PX20+ PX20++ |
| GPON Service board | 4ostas: H801GPBC |
| 8ostas: H802GPBD, H805GPBD, H806GPBD, H807GPBD, H806GPBH, H807GPBH | |
| 16ostas: H801GPFD , H802GPFD , H803GPFD, H805GPFD | |
| Module of GPON Service board | B+ Class c+ Class c++ |
| 10GE Uplink board | H801X1CA H801X2CA H801X2CS |
| 10GE EPON Service board | 8ostas: H802 XEBD, H801XEBD |
| 10GE GPON Service board | 8ostas: H801 XGBD |
Huawei SFP EPON OLT PX20++ and More Related Models
Huawei SFP EPON OLT PX20++ Product Applications
