Huawei S1720-28GWR-4X-E Switch
- Apraksts
- Izziņa
- Pielikums
Apraksts
Huawei S1720-28GWR-4X-E Switch is a next-generation energy-saving Ethernet access switch, which is designed for small and medium-sized enterprises, Interneta kafejnīcas, viesnīcas, un skolas.
Huawei S1720-28GWR-4X-E Switch Product Overview
The switch offers Downlink: 24 Ethernet 10/100/1000 ostas, Augšupsaite: 4 10 Gig SFP+ and AC power supply. It has forwarding performance: 96Mpps and switching Capacity: 168Gbps. Huawei S1720-28GWR-4X-E Switch is ideal for small to medium-sized businesses, Internet cafes, viesnīcas, schools, and others. Atkarībā no vadības veidiem, S1700 sērijas slēdži tiek klasificēti kā nepārvaldāmi slēdži, tīmeklī pārvaldīti slēdži, un pilnībā pārvaldīti slēdži. They are easy to install and maintain and provide rich services, helping customers build secure, uzticams, and high-performance networks.

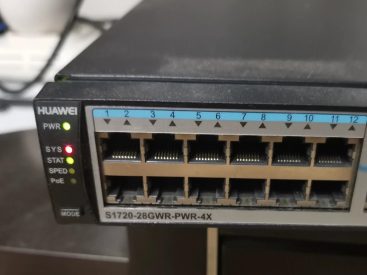

Huawei S1720-28GWR-4X-E Switch Product Pictures
Huawei S1720-28GWR-4X-E Switch Product Specifications
| Produkta modelis | S1720-10GW-2P-E S1720-10GW-PWR-2P-E |
S1720-28GWR-4P-E S1720-28GWR-PWR-4P-E S1720-28GWR-PWR-4TP-E S1720-28GWR-4X-E S1720-28GWR-PWR-4X-E S1720-52GWR-4P-E S1720-52GWR-PWR-4P-E S1720-52GWR-4X-E S1720-52GWR-PWR-4X-E |
S1720X-16XWR-E S1720X-32XWR-E |
| Ierīču pārvaldība | SNMP Web sistēmas tīkla vadība (HTTPS) DHCP klients User password protection Restaurācija ar vienu taustiņu CLI configuration (S1720GWE, S1720GWR-E, and S1720X-XWR-E series) |
||
| Pārslēgšanas jauda | 68 Gbit/s | S1720-28GWR-P/TP sērija: 68 Gbit/s S1720-28GWR-X sērija: 168 Gbit/s S1720-52GWR-P series: 336 Gbit/s S1720-52GWR-X: 336 Gbit/s |
680 Gbit/s |
| Pārsūtīšanas veiktspēja | 15 Mps | S1720-28GWR-P/TP sērija: 42 Mps S1720-28GWR-X sērija: 96 Mps S1720-52GWR-P series: 78 Mps S1720-52GWR-X series: 132 Mps |
S1720X-16XWR-E: 240 Mps S1720X-32XWR-E: 252 Mps |
| Fiksētie porti | Lejupsaite: 8 x 10/100/1,000 Base-T elektriskie porti Augšupsaite: 2 x 1,000 Base-X optiskie porti |
S1720-28GWR-P sērija Lejupsaite: 24 x 10/100/1,000 Base-T elektriskie porti Augšupsaite: 4 x 1,000 Base-X optiskie porti S1720-28GWR-TP sērija Lejupsaite: 24 x 10/100/1,000 Base-T elektriskie porti Augšupsaite: 4 x 1,000 Base-X optiskie porti, 2 no kuriem ir 10/100/1,000 Base-T kombinētie porti S1720-28GWR-X sērija Lejupsaite: 24 x 10/100/1,000 Base-T elektriskie porti Augšupsaite: 4 x 10G Base-X optiskie porti S1720-52GWR-P series Lejupsaite: 48 x 10/100/1,000 Base-T elektriskie porti Augšupsaite: 4 x 1,000 Base-X optiskie porti S1720-52GWR-X series Lejupsaite: 48 x 10/100/1,000 Base-T elektriskie porti Augšupsaite: 4 x 10G Base-X optiskie porti |
S1720X-32XWR-E: 32 x 10G Base-X optiskie porti Piezīme: These ports can be used for both upstream and downstream transmission. |
| VLAN funkcijas | 4K VLANs Piekļuves ports Maģistrāles ports Hibrīda ports Pārvaldības VLAN Balss VLAN |
||
| IP maršrutēšana | IPv4 un IPv6 statiskā maršrutēšana RIP, RIPng, and OSPF (S1720-E series) |
||
| Ierīces apkope | Remote Network Monitoring (RMON) “Sistēmas žurnāls Ping and traceroute Virtuālā kabeļa pārbaude (VCT) Saites slāņa atklāšanas protokols (LLDP) “ |
||
Huawei S1720-28GWR-4X-E Switch Product Features
- S1700 ir viegli pārvaldīt un uzturēt, being equipped wit h a one key operation button on the front panel.
- Web managed S1700 models come with a web network management system, atvieglojot slēdžu konfigurēšanu.
- Fully managed S1700 models allow for the use of an Simple Network Management Protocol (SNMP) balstīta tīkla pārvaldības sistēma (NMS) centralizētai konfigurācijai un pārvaldībai.
- Web managed and fully managed S1700 models provide telemetry technology to collect device data in real time and send the data to Huawei campus network analyzer Campu sInsight. CampusInsight analizē tīkla datus, pamatojoties uz viedo kļūdu identificēšanas algoritmu, accurately displays the real time network status, efektīvi norobežo un savlaicīgi nosaka defektus, un identificē tīkla problēmas, kas ietekmē lietotāja pieredzi, precīzi garantējot lietotāja pieredzi.
Huawei S1720-28GWR-4X-E Switch Product and More Models
98010542 S1700-16G (16 Ethernet 10/100/1000 ostas, AC 110/220V)
98010455 S1700-24-AC (24 Ethernet 10/100 ostas, AC 110/220V)
98010436 S1724G-AC (24 Ethernet 10/100/1000 ostas, AC 110/220V)
98010495 S1700-24GR (24 Ethernet 10/100/1000 ostas, AC 110/220V)
98010456 S1700-52R-2T2P-AC (48 Ethernet 10/100 ostas, 2 Ethernet 10/100/1000 ostas un 2 Gig SFP, AC 110/220V)
98010642 S1700-52GR-4X (48 Ethernet 10/100/1000 ostas, 4 10 Koncerts SFP+, AC 110/220V)
98010574 S1720-10GW-2P (8 Ethernet 10/100/1000 ostas, 2 Gig SFP, AC 110/220V)
98010576 S1720-10GW-PWR-2P (8 Ethernet 10/100/1000 PoE+ porti, 2 Gig SFP, AC 110/220V)
98010580 S1720-28GWR-4P (24 Ethernet 10/100/1000 ostas, 4 Gig SFP, AC 110/220V)
98010587 S1720-28GWR-4X (24 Ethernet 10/100/1000 ostas, 4 10 Koncerts SFP+, AC 110/220V)
98010592 S1720-28GWR-PWR-4P (24 Ethernet 10/100/1000 PoE+ porti, 4 Gig SFP, 370W PoE AC 110/220V)
98010599 S1720-28GWR-PWR-4X (24 Ethernet 10/100/1000 PoE+ porti, 4 10 Koncerts SFP+, 370W PoE AC 110/220V)
98010610 S1720-52GWR-4P (48 Ethernet 10/100/1000 ostas, 4 Gig SFP, AC 110/220V)
98010611 S1720-52GWR-4X (48 Ethernet 10/100/1000 ostas, 4 10 Koncerts SFP+, AC 110/220V)
98010623 S1720-52GWR-PWR-4P (48 Ethernet 10/100/1000 PoE+ porti, 4 Gig SFP, 370W PoE AC 110/220V)
98010624 S1720-52GWR-PWR-4X (48 Ethernet 10/100/1000 PoE+ porti, 4 10 Koncerts SFP+, 370W PoE AC 110/220V)
98010636 S1720-28GWR-PWR-4TP (24 Ethernet 10/100/1000, 2 Gig SFP un 2 divējāda lietojuma 10/100/1000 vai SFP, 8 porti PoE+, 124W PoE AC)
Huawei S1720-28GWR-4X-E Switch Product Applications
