Huawei CE-SFU16G-GK plate

Apraksts

Huawei CE-SFU16G-GK Board is Switch Fabric Unit GK and functions as the switching unit of the device and is responsible for line-rate switching of the system data plane.

Huawei CE-SFU16G-GK Board Product Overview

Huawei CE-SFU16G-GK Board is Switch Fabric Unit GK and functions as the switching unit of the device and is responsible for line-rate switching of the system data plane.

CloudEngine 16800 is Huawei’s first data center switch for the AI era. Built-in AI chip, carrying the original iLossless intelligent lossless switching algorithm, real-time learning and training of the entire network traffic, achieving network zero packet loss and E2Eμs delay, and achieving the highest throughput. The software platform is based on Huawei’s VRP8 operating system. On the basis of providing stable, uzticams, and high-performance L2/L3 layer switching services, it builds an intelligent, minimalist, secure and open data center cloud network platform for customers.

CloudEngine 16800 series provides three product forms: CloudEngine 16816, CloudEngine 16808, and CloudEngine 16804.

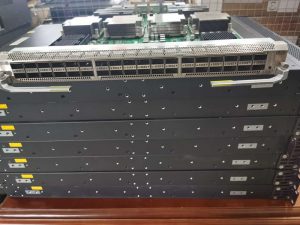

Huawei CE-SFU16G-GK Board Product Pictures

Huawei CE-SFU16G-GK Board Product Specifications

Lieta	Specifikācija
Daļas numurs	3059632
Modelis	CE-SFU16G-GK
Apraksts	CE16816 Switch Fabric Unit GK
Sietspiede	CE-SFU16G-GK
Pirmā atbalstītā versija	V200R019C10
Izmēri bez iepakojuma (AxPxD)	1116.2 mm x 42.4 mm x 389.2 mm (43.94 iekšā. x 1.67 iekšā. x 15.32 iekšā.)
Svars bez iepakojuma	22.4 Kilograms (49.38 Mārciņas)
Procesors	Quad-core, 1.4 GHz clock speed
Zibspuldze	Standarta 128 MB
Atmiņa	Standarta 2 GB
Tipisks enerģijas patēriņš	524 W
Maksimālais enerģijas patēriņš	661 W
Tipiska siltuma izkliede	1789 BTU/stundā
Maksimālā siltuma izkliede	2257 BTU/stundā
Product certification	Safety standards compliance
	EMC standards compliance
	Environmental standards compliance

Huawei CE-SFU16G-GK Board Product Features

• CloudEngine 16800 adopts Huawei’s new generation of VRP8 operating system, based on the industry’s leading full-service fine-grained distributed architecture technology, builds a high-performance and highly reliable software platform, and provides sustainable online services
• High-performance fine-grained distributed architecture: As a high-end software system platform, VRP8 adopts a full-service fine-grained distributed architecture. Various network protocols and services can be processed in multi-instance and parallel processing, giving full play to the advantages of multi-CPU and multi-core parallel processing. Advantages to maximize business performance and reliability
• Intelligently adjust the ECN thresholds of different queues according to the changes in real-time network traffic
• Intelligent prediction of network congestion, fast feedback, reduce retransmission and throughput drop caused by network packet loss, and obtain the maximum benefit between delay and throughput.
• Patented front and rear air duct design, strict isolation of cold and hot air ducts, fully meet the standard of data center computer room
• The fan supports intelligent partition speed regulation, heat dissipation on demand, energy saving and noise reduction.
• Use the industry’s highly efficient digital power module, the efficiency is as high as 96%
• Real-time power measurement, keeping track of the system power consumption status at any time, and intelligently control the power module to enter the dormant state according to the system power consumption status to reduce energy consumption
• According to changes in business traffic load, the energy consumption of the main components of the CloudEngine 16800 is adjusted on demand to dynamically save energy

Huawei CE-SFU16G-GK Board Mapping Between Card and SFU

Device Model	Kart	SFU	Number of SFUs Required for Linerate Forwarding
CE 16804/CE16808/ CE16816	36*100GE	CE-SFU04G-G/ CE-SFU08G-G/CE-SFU16G-G	5
	36*40GE	CE-SFU04F-G/ CE-SFU08F-G/CE-SFU16F-G	4
		CE-SFU04G-G/ CE-SFU08G-G/CE-SFU16G-G	4
	48*10GE	CE-SFU04F-G/ CE-SFU08F-G/CE-SFU16F-G	4
		CE-SFU04G-G/ CE-SFU08G-G/CE-SFU16G-G	4
	18*100GE	CE-SFU04F-G/ CE-SFU08F-G/CE-SFU16F-G	5
		CE-SFU04G-G/ CE-SFU08G-G/CE-SFU16G-G	5
	24*40GE	CE-SFU04F-G/ CE-SFU08F-G/CE-SFU16F-G	4
		CE-SFU04G-G/ CE-SFU08G-G/CE-SFU16G-G	4

Huawei CE-SFU16G-GK Board Product And More Related Models

CE-SFU04G-G (CE16804 Slēdža auduma bloks G)

CE-SFU04G-GK (CE16804 Switch Fabric Unit GK)

CE-SFU04F-G (CE16804 Slēdža auduma bloks F)

CE-SFU04F1-G (CE16804 Switch Fabric Unit F1)

CE-SFU08G-G (CE16808 Slēdža auduma bloks G)

CE-SFU08G-GK (CE16808 Switch Fabric Unit GK)

CE-SFU08F-G (CE16808 Slēdža auduma bloks F)

CE-SFU08F1-G (CE16808 Switch Fabric Unit F1)

CE-SFU16G-G (CE16816 slēdža auduma bloks G)

CE-SFU16G-GK (CE16816 Switch Fabric Unit GK)

CE-SFU16F-G (CE16816 slēdža auduma bloks F)

Huawei CE-SFU16G-GK Board Product Application
