Apraksts
H3C LS-6850-56HF Switch is a high-density intelligent switch developed for data centers and cloud computing networks with 48×25G SFP28 ports, 8×100G QSFP28 ports, and 2×1G SFP ports.
H3C LS-6850-56HF Switch Product Overview
The switch provides powerful hardware forwarding capacity and abundant data center features. It offers up to 48*25G ports and 8*100G ports. Tajā pašā laikā, H3C LS-6850-56HF supports modular power modules and fan trays. By using different fan trays, the switch can provide field-changeable airflows.
Papildus, S6850 series switch provides multiple reliability protection at both switch and link levels. With over current, overvoltage, and overheat protection, all models have a redundant pluggable power module, which enables flexible configuration of AC or DC power modules based on actual needs. The entire switch supports fault detection and alarm for power supply and fan, allowing fan speed to change to suit different ambient temperatures.
H3C LS-6850-56HF Switch is an ideal product for high-density 25GE switching and aggregation at data centers and cloud computing networks. It can also operate as a TOR access switch on an overlay or integrated network.

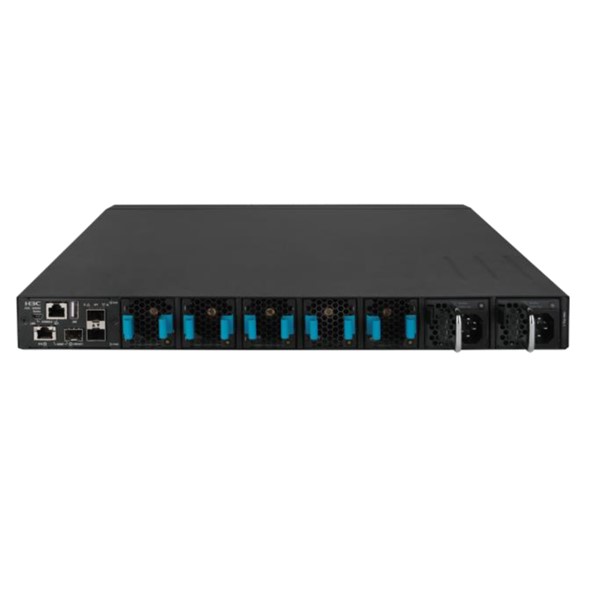

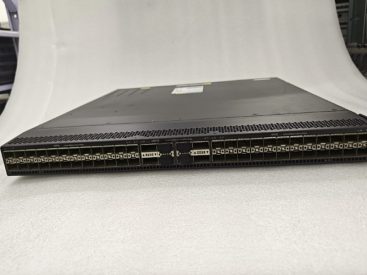

H3C LS-6850-56HF Switch Product Pictures
H3C LS-6850-56HF Switch Product Specifications
| Lieta | S6850-56HF | S6850-56HF | S6850-2C |
| PID | LS-6850-56HF | LS-6850-56HF-H3 | LS-6850-2C |
| Izmēri (A × P × D) | 43.6 × 440 × 460 mm (1.72 × 17.32 × 18.11 iekšā) | Without package: 44 × 440 × 400 mm (1.73 × 17.32 × 15.75 iekšā) | 44.2 × 440 × 660 mm (1.74 × 17.32 × 18.11 iekšā) |
| With package: 150 × 658 × 556 mm (5.91 × 25.91 × 21.89 iekšā) | |||
| Svars | ≤ 15 Kilograms (33.07 Mārciņas) | ≤ 10 Kilograms (22.05 Mārciņas) | ≤ 16 Kilograms (35.27 Mārciņas) |
| Serial console port | 1 | 1 | 1 |
| Out-of-band management port | One GE copper port and one GE fiber port | 1 × copper management Ethernet port | One GE copper port and one GE fiber port |
| Mini USB console port | 1 | – | 1 |
| USB ports | 1 | 1 | 1 |
| QSFP28 port | 8 | 8 | 2 |
| SFP28 port | 48 | 48 | – |
| SFP port | 2 | – | – |
| Expansion slot | – | – | 2 |
| Procesors | 2.4GHz@4Core | 2.2GHz@4Core | 2.2GHz@4Core |
| Flash/SDRAM | 4GB/8GB | 4GB/8GB | 4GB/8GB |
| Latency | <1μs | <1μs | <1μs |
| Pārslēgšanas jauda | 4 Tb/s | 4 Tb/s | 3.6Tb/s |
| Forwarding capacity | 2024 Mps | 2024 Mps | 2024 Mps |
| Buferis(byte) | 32M | 32M | 32M |
| AC-input voltage | 90v AC to 264v AC | 90v AC to 264v AC | 90v AC to 264v AC |
| DC-input voltage | –40v DC to –72v DC | 190v DC to 310v DC | –40v DC to –72v DC |
| Power module slot | 2 | 2 | 2 |
| Fan tray slot | 5 Hot-swappable fan, fan speed adjustable and wind invertible | 4 Hot-swappable fan, fan speed adjustable and wind invertible | 5 Hot-swappable fan, fan speed adjustable and wind invertible |
| Air flow direction | From front to rear or from rear to front | From front to rear or from rear to front | From front to rear or from rear to front |
| Tipisks enerģijas patēriņš (Fully configured with copper cables, plkst 50% slodze) | Single AC input: 201 W Dual AC inputs: 224 W Single DC input: 198 W Dual DC inputs: 210 W |
Single AC input: 143 W Dual AC inputs: 150 W |
With two LSWM18CQ modules: 282 W With two LSWM18CQMSEC modules: 326 W With two LSWM116Q modules: 260 W With two LSWM18QC modules: 230 W With two LSWM124XG2Q modules: 286 W With two LSWM124XGT2Q modules: 348 W With two LSWM124XG2QFC modules: 286 W With two LSWM124XG2QL modules: 242 W With two LSWM124TG2H modules: 282 W With two LSWM116FC modules: 260 W |
| Maksimālais enerģijas patēriņš (Fully configured with transceiver modules, plkst 100% slodze) | Single AC input: 405 W Dual AC inputs: 413 W Single DC input: 400 W Dual DC inputs: 408 W |
Single AC input: 424 W Dual AC inputs: 429 W |
With two LSWM18CQ modules: 421 W With two LSWM18CQMSEC modules: 451 W With two LSWM116Q modules: 385 W With two LSWM18QC modules: 325 W With two LSWM124XG2Q modules: 385 W With two LSWM124XGT2Q modules: 511 W With two LSWM124XG2QFC modules: 385 W With two LSWM124XG2QL modules: 337 W With two LSWM124TG2H modules: 421 W With two LSWM116FC modules: 385 W |
| Maximum thermal consumption | Single AC input: 1382 BTU/st Dual AC inputs: 1409 BTU/st Single DC input: 1365 BTU/st Dual DC inputs: 1392 BTU/st |
1464 BTU/st | With two LSWM18CQ modules: 1436 BTU/st With two LSWM18CQMSEC modules: 1539 BTU/st With two LSWM116Q modules: 1314 BTU/st With two LSWM18QC modules: 1109 BTU/st With two LSWM124XG2Q modules: 1314 BTU/st With two LSWM124XGT2Q modules: 1744 BTU/st With two LSWM124XG2QFC modules: 1314 BTU/st With two LSWM124XG2QL modules: 1150 BTU/st With two LSWM124TG2H modules: 1436 With two LSWM116FC modules: 1314 BTU/st |
| Darbības temperatūra | 0-45℃(32°F līdz 113 °F) | ||
| Darba mitrums | 5% uz 95%, nekondensējošs | ||
| MTBF(gadā) | 33.2 | 78.7 | 34 |
| MTTR(stunda) | 1 | 0.5 | 1 |
H3C LS-6850-56HF Switch Product Features
- H3C S6850 switch adopts the next-generation chip with more flexible Openflow FlowTable, more resources and accurate ACL matching, which greatly improves the software-defined network (SDN) capabilities and meet the demand of data center SDN network.
- H3C S6850 switch can interconnect with H3C SeerEngine-DC Controller through standard protocols such as OVSDB, Netconf and SNMP to implement network automatic deployment and configuration.
- Support realtime monitoring of buffer and port queues, allowing for visible and dynamic network optimization.
- Support PTP (Precision Time Protocol) to achieve highly precise clock synchronization
- H3C S6850 switch supports VXLAN (Virtual Extensible LAN), which provides two major benefits, higher scalability of Layer 2 segmentation and better utilization of available network paths.
- H3C S6850 switch supports MP-BGP EVPN (Multiprotocol Border Gateway Protocol Ethernet Virtual Private Network) which can run as VXLAN control plane to simplify VXLAN configuration, eliminate traffic
H3C LS-6850-56HF Switch and More Models
LS-6850-56HF: 48×25G SFP28 ports, 8×100G QSFP28 ports, and 2×1G SFP ports.
LS-6850-56H-H3: 48×25G SFP28 ports, 8×100G QSFP28
LS-S6850-2C: 2 pakalpojumu sloti, 2×100G QSFP28 ports.
H3C LS-6850-56HF Switch Ordering Info
| PID | Apraksts |
| LS-6850-56HF | H3C S6850-56HF L3 Ethernet Switch with 48 SFP28 Ports and 8 QSFP28 porti |
| LS-6850-56HF-H3 | H3C S6850-56HF L3 Ethernet Switch with 48 SFP28 Ports and 8 QSFP28 porti |
| LS-6850-2C | H3C S6850-2C L3 Ethernet Switch with 2*QSFP28 Ports and 2*Interface Module Slots |
| Jauda | |
| LSVM1AC650 | 650W Maiņstrāvas barošanas avota modulis |
| SW-A-PSR550-12A-B | 550W Maiņstrāvas barošanas avota modulis(Strāvas paneļa sānu izplūdes gaisa plūsma)(Platinum) |
| LSVM1DC650 | 650W līdzstrāvas barošanas avota modulis |
| Fan | |
| LSWM1FANSAB | Ventilatora modulis (SW, 4056, DC, Air Inlets in Panel) |
| FAN-40B-1-D | H3C ventilatora modulis(4056,Air Outlets in Fan Tray Panel) |
| LSWM1FANSA | Ventilatora modulis (SW, 4056, DC, Air Inlets in Panel) |
| Module | |
| LSWM18QC | 8-Port QSFP Plus Interface Card |
| LSWM124XG2Q | 24-Port SFP Plus and 2-Port QSFP Plus Interface Card with MACSec |
| LSWM124XGT2Q | 24-Port 10GBASE-T and 2-Port QSFP Plus Interface Card with MACSec |
| LSWM124XG2QL | 24-Port SFP Plus and 2-Port QSFP Plus Interface Card |
| LSWM124XG2QFC | 24 Ports SFP Plus and 2 Ports QSFP Plus Interface Card with FC |
| LSWM18CQ | H3C 8-Port 100G Ethernet Optical Interface Module(QSFP28) |
| LSWM116Q | H3C 16-Port 40G Ethernet Optical Interface Module(QSFP Plus) |
| LSWM124TG2H | H3C 24-Port 25G Ethernet Optical Interface (SFP28) and 2-Port 100G Ethernet Optical |
| Interfeiss (QSFP28) Module | |
| LSWM18CQMSEC | H3C 8-Port 100G MACSEC Ethernet Optical Interface Module(QSFP28) |
| Transceiver | |
| SFP-GE-LH80-SM1550 | 1000BASE-LH80 SFP raiduztvērējs, Viens režīms (1550nm, 80km, LC) |
| SFP-FE-LX-SM1310-A | 100BASE-LX SFP raiduztvērējs, Viens režīms (1310nm, 15km, LC) |
| SFP-FE-SX-MM1310-A | 100BASE-FX SFP Transceiver, Vairāku režīmu (1310nm, 2km, LC) |
| SFP-FE-LH40-SM1310 | 100BASE-LH40 SFP raiduztvērējs, Viens režīms (1310nm, 40km, LC) |
| SFP-GE-LX-SM1310-A | 1000BASE-LX SFP raiduztvērējs, Viens režīms (1310nm, 10km, LC) |
| SFP-GE-LH40-SM1310 | 1000BASE-LH40 SFP raiduztvērējs, Viens režīms (1310nm, 40km, LC) |
| SFP-GE-LH40-SM1550 | 1000BASE-LH40 SFP raiduztvērējs, Viens režīms (1550nm, 40km, LC) |
| SFP-GE-SX-MM850-A | 1000BASE-SX SFP raiduztvērējs, Vairāku režīmu (850nm, 550m, LC) |
| SFP-GE-T | SFP GE Copper Interface Transceiver Module (100m,RJ45) |
| QSFP-100G-LR4-WDM1300 | 100G QSFP28 optiskā raiduztvērēja modulis(1310nm,10km,LR4, WDM,LC) |
| QSFP-100G-LR4L-WDM1300 | 100G QSFP28 optiskā raiduztvērēja modulis (1310nm,2km,LR4L,CWDM4, LC) |
| QSFP-100G-PSM4-SM1310 | 100G QSFP28 optiskā raiduztvērēja modulis (1310nm,500m,PSM4,MPO/APC) |
| QSFP-100G-SR4-MM850 | 100G QSFP28 optiskā raiduztvērēja modulis (850nm,100m OM4,SR4,MPO) |
| QSFP-100G-LR4L-WDM1300 | 100G QSFP28 optiskā raiduztvērēja modulis (1310nm,2km,LR4L,CWDM4, LC) |
| QSFP-100G-LR4-WDM1300 | 100G QSFP28 optiskā raiduztvērēja modulis(1310nm,10km,LR4, WDM,LC) |
| QSFP-40G-LR4-WDM1300 | QSFP+ 40GBASE optiskā raiduztvērēja modulis (1310nm,10km,LR4,LC) |
| QSFP-40G-BIDI-SR-MM850 | QSFP+ 40GBASE BIDI Optical Transceiver Module (850nm,100m,SR) |
| QSFP-40G-LR4L-WDM1300 | QSFP+ 40GBASE optiskā raiduztvērēja modulis (1310nm,2km,LR4L,LC) |
| QSFP-40G-LR4-PSM1310 | QSFP+ 40GBASE optiskā raiduztvērēja modulis (1310nm,10km,MPO/APC,LR4,Parallel Single |
| Režīms) | |
| QSFP-40G-SR4-MM850 | QSFP+ 40GBASE optiskā raiduztvērēja modulis (850nm,100m,SR4, atbalsta 40G līdz 4*10G) |
| QSFP-40G-CSR4-MM850 | QSFP+ 40GBASE optiskā raiduztvērēja modulis (850nm,300m,CSR4, atbalsta 40G līdz 4*10G) |
| SFP-25G-SR-MM850 | 25G SFP28 optiskā raiduztvērēja modulis (850nm,100m,SR,MM,LC) |
| Kabelis | |
| QSFP-100G-D-AOC-10M | 100G QSFP28 līdz 100G QSFP28 10 m aktīvais optiskais kabelis |
| QSFP-100G-D-CAB-1M | 100G QSFP28 līdz 100G QSFP28 1m pasīvais kabelis |
| QSFP-100G-D-AOC-20M | 100G QSFP28 līdz 100G QSFP28 20 m aktīvais optiskais kabelis |
| QSFP-100G-D-CAB-3M | 100G QSFP28 līdz 100G QSFP28 3 m pasīvais kabelis |
| QSFP-100G-D-CAB-5M | 100G QSFP28 līdz 100G QSFP28 5 m pasīvais kabelis |
| QSFP-100G-D-AOC-7M | 100G QSFP28 līdz 100G QSFP28 7 m aktīvais optiskais kabelis |
| QSFP-100G-4SFP-25G-CAB-1M | 100G QSFP28 līdz 4x25G SFP28 1m pasīvais kabelis |
| QSFP-100G-4SFP-25G-CAB-3M | 100G QSFP28 līdz 4x25G SFP28 3 m pasīvais kabelis |
| QSFP-100G-4SFP-25G-CAB-5M | 100G QSFP28 līdz 4x25G SFP28 5 m pasīvais kabelis |
| LSWM1QSTK0 | 40G QSFP+ kabelis 1m |
| LSWM1QSTK1 | 40G QSFP+ kabelis 3m |
| LSWM1QSTK2 | 40G QSFP+ kabelis 5m |
| QSFP-40G-D-AOC-10M | 40G QSFP+ to 40G QSFP+ 10m Active Optical Cable |
| QSFP-40G-D-AOC-20M | 40G QSFP+ to 40G QSFP+ 20m Active Optical Cable |
| QSFP-40G-D-AOC-7M | 40G QSFP+ to 40G QSFP+ 7m Active Optical Cable |
| LSWM1QSTK3 | 40G QSFP+ līdz 4x10G SFP+ kabelis 1 m |
| LSWM1QSTK4 | 40G QSFP+ līdz 4x10G SFP+ kabelis 3 m |
| LSWM1QSTK5 | 40G QSFP+ līdz 4x10G SFP+ kabelis 5 m |
| SFP-25G-D-CAB-1M | 25G SFP28 līdz 25G SFP28 1 m pasīvais kabelis |
| SFP-25G-D-CAB-3M | 25G SFP28 līdz 25G SFP28 3 m pasīvais kabelis |
| SFP-25G-D-CAB-5M | 25G SFP28 līdz 25G SFP28 5 m pasīvais kabelis |
| SFP-25G-D-AOC-3M | 25G SFP28 to 25G SFP28 3m Active Optical Cable |
| SFP-25G-D-AOC-5M | 25G SFP28 to 25G SFP28 5m Active Optical Cable |
| SFP-25G-D-AOC-7M | 25G SFP28 to 25G SFP28 7m Active Optical Cable |
| SFP-25G-D-AOC-10M | 25G SFP28 to 25G SFP28 10m Active Optical Cable |
| SFP-25G-D-AOC-20M | 25G SFP28 to 25G SFP28 20m Active Optical Cable |
H3C LS-6850-56HF Switch Product Applications
