Apraksts
GYDXTS-84~96Xn-12F Optic cable is In-center tube Sheathed fiber optic cable with rodent-proof cable, which is widely used in communication networks, featuring compact structure, stable performance and easy installation.
GYDXTS-84~96Xn-12F Optic cable Product Overview
The structure no GYDXTS optiskais cable ir uz insert multiple optiskais šķiedra strips into a loose tube made no high–modulus polyester material, un uz sleeve ir filled ar waterproof compound. The loose tube ir covered ar water–blocking material uz ensure uz longitudinal water seepage no uz optiskais cable, un uz steel wire ir wrapped into a double–sided chrome–plated plastmasas–coated steel tape (PSP) longitudinal wrap after uz cable, un then uz polyethylene sheath ir extruded outside.

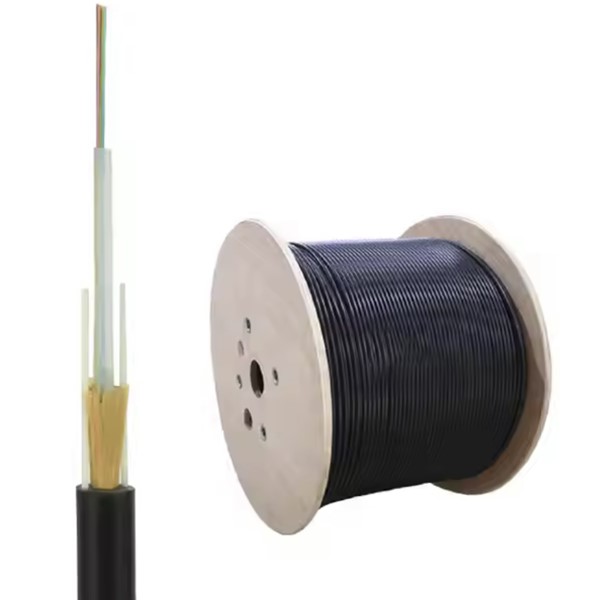

GYDXTS-84~96Xn-12F Optic cable Product Picture
GYDXTS-84~96Xn-12F Optic cable Product Specifications
| Fiber Optic Cable Model (in 2-fiber increments) | Number of fibers | Reference cable weight（kg/km) | Tensile force allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Bend radius Statisks/dinamisks (mm) |
|||
| GYDXTS-36~48Xn-12F | 36~48 | 206 | 1000/3000 | 1000/3000 | 10D/20D | |||
| GYDXTS-60~72Xn-12F | 60~72 | 219 | ||||||
| GYDXTS-84~96Xn-12F | 84~96 | 285 | ||||||
| GYDXTS-108~120Xn-12 | 108~120 | 331 | ||||||
| GYDXTS-132~144Xn-12 | 132~144 | 360 | ||||||
| Šķiedras veids | attenuation | joslas platums | Skaitliskā diafragma | Fiber optic cable cut-off wavelength | ||||
| （+20℃） | ||||||||
| @ 850nm | @1300nm | @1310nm | @ 1550 nm | @ 850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260 nm |
| G.655 | — | — | ≤0.40dB/km | ≤0,23 dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0,015NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0,015NA | — |
GYDXTS-84~96Xn-12F Optic cable Product Features
• Precisely controlled fiber residual length ensures good mechanical and temperature performance of the fiber optic cable
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special paste to protect the optical fiber
• Good resistance to lateral pressure and softness
• A layer of wrapped steel wire ensures the tensile strength of the optical cable and has good anti-rodent performance
• Double-sided chrome-plated plastic-coated steel tape (PSP) improves the moisture permeability of fiber optic cables
• Good water-blocking material to prevent longitudinal water seepage of the fiber optic cable
• Polyethylene (PE) sheath has very good resistance to UV radiation
• Small diameter, easy to lay

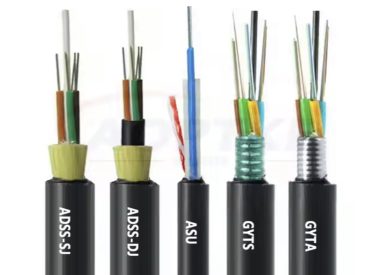

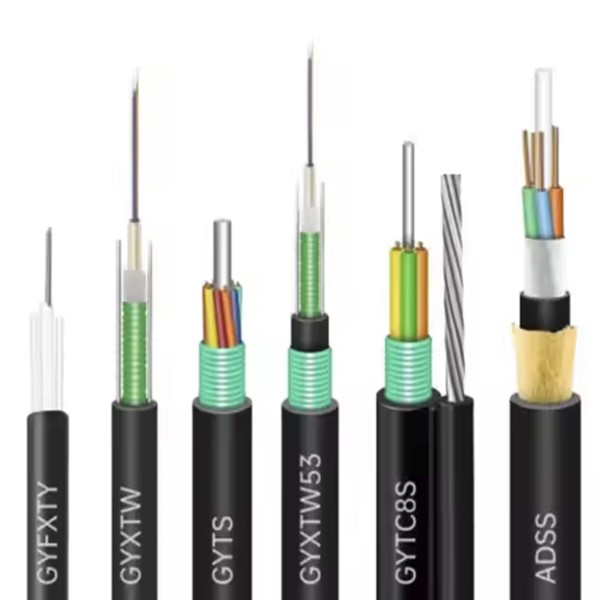

GYDXTS-84~96Xn-12F Optic cable and More Optic Cables
GDVV/GDHH/GDJH type hybrid cable
Hybrid Cable for Access Network (GDTA53)
Hybrid Optical Cable (GDTS) for Access Networks
Hybrid Cable for Access Networks (GDTA)
Skeleton Fiber Optic Ribbon A-Sheathed Fiber Optic Cable (GYDGA)
Center Tube Y-sheathed Anti-Rodent Fiber Optic Cable (GYXTY)
Center Tube Sheathed Fiber Optic Cable with Anti-Rodent (GYDXTS)
In-Tube Sheathed Anti-Rodent Fiber Optic Cable (GYXTS)
Centro 53 Sheathed Anti-Rodent Cable(GYXTY53)
Loose tube type single thin round steel wire armored optical cable(GYXTA33)
Fiber Bundle Center Tube Sheathed Anti-Rodent Fiber Optic Cable (GYSXTS)
Fiber Bundle Air Blowing Micro Cable (GYCFSY)
Non-metallic central tube lightning and rodent protection optical cable(GYQFXTY)
Non-metallic central tube 73 sheathed lightweight lightning and rodent fiber optic cable (GYQFXTY73)
Flame retardant fiber optic cable for central tube coal mine (MGXTW)
Flame retardant optical cable for loose sleeve stranded coal mine (MGTS)
GYDXTS-84~96Xn-12F Optic cable Product Applications
- Communication network: The central bundle tube optical cable is one of the commonly used transmission media in the communication network, which can be used in the fields of fiber to the home, local area network, metropolitan area network, utt.
- Intelligent transportation: In the field of intelligent transportation, a large amount of data and signals need to be transmitted, and the central bundle tube optical cable can provide high-speed and stable data transmission services.
- Industrial automation: In the field of industrial automation, a large number of control signals and monitoring data need to be transmitted, and the central bundle tube optical cable can provide efficient and reliable data transmission services.
- Power industry: The power industry needs to transmit a large amount of power data and signals, and the central tube fiber optic cable can provide safe and reliable data transmission services.
- Radio and television: The radio and television field needs to transmit a large number of audio and video signals, and the central tube fiber optic cable can provide high-quality and stable signal transmission services.

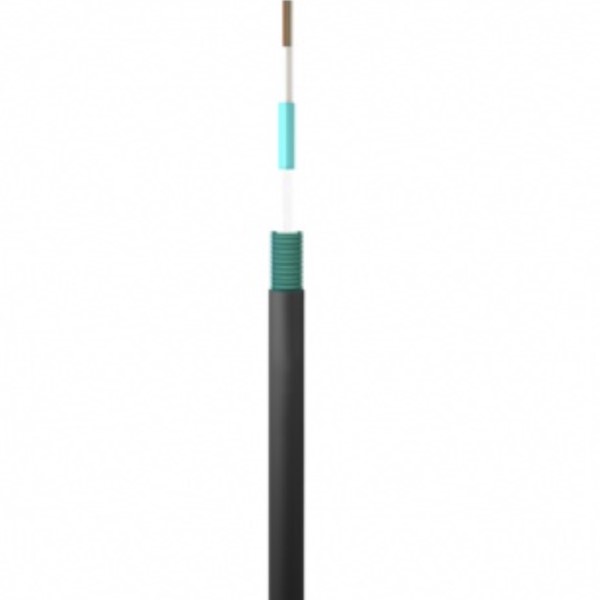

GYDXTS-84~96Xn-12F Optic cable Product Structure
