설명
SIMCom SIM8260A 5G Module is a Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module supporting R16 5G NSA/SA.
SIMCom SIM8260A 5G Module Product Overview
SIMCom SIM8260A 5G Module is a Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module supporting R16 5G NSA/SA. The module adopts LGA form factor. AT commands of the SIM8260A are compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market. 게다가, SIM8260A has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. 이 모듈은 고객의 애플리케이션에 대해 뛰어난 유연성과 통합 용이성을 제공합니다.. The product is designed for applications that need high throughput data communication in a variety of radio propagation condition, ideally suited for many applications.

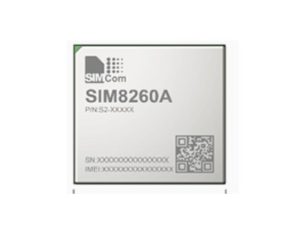

SIMCom SIM8260A 5G Module Product Pictures
SIMCom SIM8260A 5G Module Product Specifications
| 상표 | SIMCom |
| 모델 | SIM8260A |
| 폼 팩터 | LGA |
| 치수(mm) | 41.0*43.6*2.8 |
| 주파수 대역: | 5G 서브-6G: n1/n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n71/n77/n78/n79 LTE-FDD: B1/B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71 LTE-TDD: B38/B41/B42/B43/B46*/B48 WCDMA: 지하 1층/지층 2층/지층 4층/지층 5층 GPS: GPS/GLONASS/Beidou/갈릴레오/QZSS |
| 온도 | -30℃ ~ +70℃ |
| 데이터 전송 | 하위 6G SA: 2.4Gbps(DL)/1Gbps(UL) Sub-6G NSA: 3.4Gbps(DL)/600Mbps(UL) LTE: 1.6Gbps(DL)/200Mbps(UL) HSPA+: 42Mbps (DL)/5.76Mbps(UL) |
| 규약 | TCP/IP/IPV4/IPV6/다중 PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 |
| 인터페이스 | SIM 카드: 1.8V/2.95V USB PCM 2C 다양성 수신기 |
| 인증 | 규제: CE(빨간색)*/FCC*/RoHS*/REACH* |
SIMCom SIM8260A 5G Module Product Features
- LGA form factor with abundant interfaces
- 높은 처리량의 데이터 통신
- AT commands of the SIM8260A are compatible with SIM7912G/SIM8200X-M2 series modules
SIMCom SIM8260A 5G Module product and More Modules
SIMCom SIM8260A 5G 모듈 제품 애플리케이션
