Huawei XGBD 10G Service Board

설명

Huawei XGBD 10G Service Board is 8-port 10G GPON Port Interface Card with Optical Module inserted for Huawei MA5683T, MA5680T, MA5800T OLT products.

Huawei XGBD 10G Service Board Product Overview

Huawei XGBD 10G Service Board is an 8-port 10G GPON interface card and provides 10G GPON service access for ONT products. This board can maximum access 8*256 10G GPON subscribers. Huawei OLT is the global first optical line terminal which integrates the functionality of the aggregation switch and edge router. It can provide high-density GPON, 10GPON and Ethernet P2P optical access, triple-play service, TDM/ATM/Ethernet leased line services for business customers and high precision clock, and high-density GE/10GE interfaces for cascading remote access equipment.

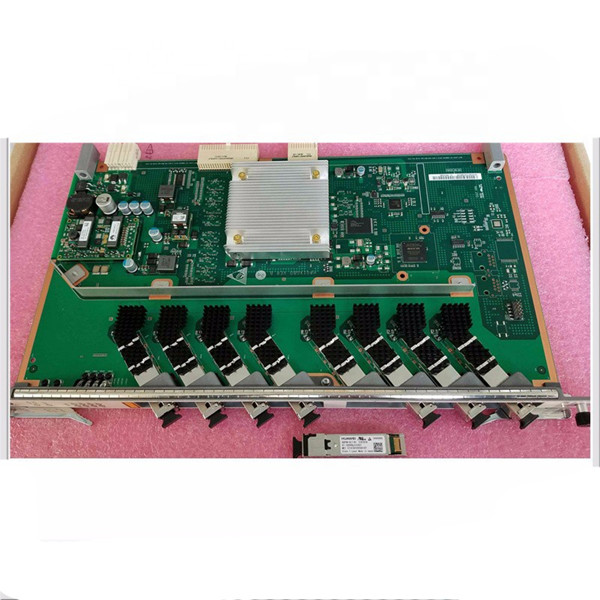

Huawei XGBD 10G Service Board Product Pictures

Huawei XGBD 10G Service Board Product Specifications

Interface Model	H801XGBD	H802XGBC
포트	8	4
포트 유형	SFP+。	XFP。
SFP	Single-fibre bidirectional 10G GPON OLT optical module.	Single-fibre bidirectional 10G GPON OLT optical module.
GEM Port	Each port supports 3840 GEM 포트.	Each port supports 3840 GEM 포트.
T-CONT	Each port supports 2048 T-CONT.	Each port supports 2048 T-CONT.
분할 비율	Supports a maximum of 1:256 분할 비율.	Supports a maximum of 1:256 분할 비율.
	The actual split ratio depends on the optical module model and fibre distance.	The actual split ratio depends on the optical module model and fibre distance.
Optical module management	Supports querying optical module parameters: 온도, 바이어스 전류, 전압, 수신된 광전력, and transmitted optical power	Supports querying optical module parameters: 온도, 바이어스 전류, 전압, 수신된 광전력, and transmitted optical power
RSSI detection, light module illumination control	지원하다	지원하다
온도 쿼리 및 고온 경보	지원하다	지원하다
High-temperature automatic shutdown	지원하다	지원하다

Huawei XGBD 10G Service Board Product Features

• 지원하다 8 10G GPON SFP interfaces
• Support single fibre bi-directional 10G GPON OLT optical module
• 최대 지원 1: 256 분할 비율. (메모: The actual splitting ratio depends on the optical module type and fiber distance.)
• support query optical module parameters: 온도, 바이어스 전류, 전압, receive optical power, send optical power.
• Support RSSI detection
• Support optical module lighting control
• Support temperature query and high-temperature alarm
• Support high-temperature automatic shutdown

Huawei XGBD 10G Service Board and More Boards

GPBD	8GPON 포트 (SFP 광학 모듈:클래스 B+,C+,C++), 버전 802/805/806/807
GPBH	8GPON 포트 (SFP 광학 모듈:클래스 B+,C+,C++),버전 806/807
EPBD	8에폰 포트 (SFP 광학 모듈:PX20+), 버전 802/808/809
EPSD	8에폰 포트 (SFP 광학 모듈:PX20+),
GPFD	16GPON 포트 (SFP 광학 모듈:클래스 B+,C+,C++),
EPFD	16에폰 포트 (SFP 광학 모듈:PX20+),
XGBD	8*10G GPON Port (SFP 광학 모듈:XGPON N1/XGPON N2),
XEBD	8*10G EPON Port (SFP 광학 모듈:10GEPON PRX30/10GEPON PR30),
GPHF	16 GPON 포트 (SFP 광학 모듈:클래스 B+,C+,C++),
GPSF	16 GPON 포트 (SFP 광학 모듈:클래스 B+,C+,C++),
GPLF	16 GPON 포트 (SFP 광학 모듈:클래스 B+,C+,C++),
EPHF	16 에폰 포트 (SFP 광학 모듈:PX20+),
XEHD	8 10G EPON Port (SFP 광학 모듈:PX30 PRX30),
젤드	8 10G EPON Port (SFP 광학 모듈:PX30 PRX30),
XGHD	8 XG-PON Port (SFP 광학 모듈:XGPON N1),
XGLD	8 XG-PON Port (SFP 광학 모듈:XGPON N1),
XGLF	16 XG-PON Port (SFP 광학 모듈:XGPON N1),
XGSF	16 XG-PON Port (SFP 광학 모듈:XGPON N1),

Huawei XGBD 10G Service Board Product Applications
