설명
Huawei XELD 10G Service Board is 8 Ports10GE Epon Service card for Huawei MA5680 OLT
Huawei XELD 10G Service Board Product Overview
Huawei XELD 10G Service Board is 8 Ports10GE Epon Service card for Huawei MA5680 OLT
Huawei SmartAX MA5800 series OLT products include MA5800-X17, MA5800-X15, MA5800-X7, 그리고 MA5800-X2 모델.
The MA5800 multi-service access device is the industry’s first distributed architecture intelligent aggregation OLT platform, NG-PON용 차세대 OLT로 자리매김. The MA5800 is dedicated to helping customers build a “더 넓게, 더 빠르게, 더 똑똑하게” access network that provides a better business experience for their users.
The MA5800 provides GPON, XG-PON, XGS-PON, 10G-에폰, and P2P 10GE/GE access, and supports multiple network construction modes including FTTH, FTTD, FTTB, and FTTC to meet home access and enterprise access. The requirements of various service scenarios, such as mobile bearer and Wi-Fi hotspot backhaul, realize a full service of the optical fiber network.
The MA5800 combines the functions of an OLT and an aggregation switch to support unified aggregation of ONTs, MDUs, and campus switches as a large-capacity aggregation device, helping to simplify the network architecture and reduce OPEX.

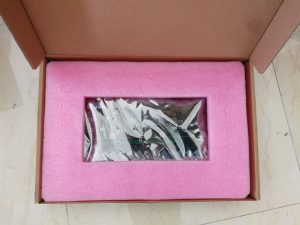

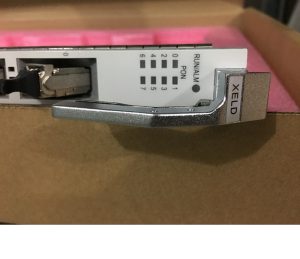

Huawei XELD 10G Service Board Product Pictures
Huawei XELD 10G Service Board Product Specifications
| 상표 | 화웨이 |
| 사양 | 젤드 |
| Port quantity | 8 |
| MAX Split ratio | 1: 128 |
| 전송 속도 | 80기가비트/초 |
| Rate model | Symmetric Rate model |
| Asymmetric Rate Model | |
| Maximum Number of LLID | 256 |
| Maximum Number of Service Flows Supported by the Board | 16368 |
| Maximum frame length | 2052 바이트 |
| Maximum Number of MAC | 16384 |
| Maximum differential fibre distance (킬로미터) | 60 |
| 작동 온도 | -40℃~+65℃ |
| Maximum Power waste | 65승 |
| 치수 (폭 x 깊이 x 높이) | 490 mm x 325mm |
| High-temperature automatic concern | 예 |
| Rogue ONT Detection and Isolation Support | 예 |
| Board supporting downstream FEC | 예 |
| Board supporting upstream FEC | 예 |
Huawei XELD 10G Service Board Product Feature
- 지원 8 10G EPON SFP interfaces
- Support single fibre bi-directional 10G EPON OLT optical module
- 최대 지원 1: 128 분할 비율. (메모: The actual splitting ratio depends on the optical module type and fiber distance.)
- support query optical module parameters: 온도, 바이어스 전류, 전압, receive optical power, send optical power.
- Supports RSSI detection
- Supports optical module lighting control
- Support temperature query and high-temperature alarm
- Support high-temperature automatic shutdown
- Supports up and down rate symmetry mode and asymmetric rate mode
- Supports Type B single home protection
Huawei XELD 10G Service Board and More Service Boards
| GPBD | 8GPON 포트 (SFP 광학 모듈:클래스 B+,C+,C++), 버전 802/805/806/807 |
| GPBH | 8GPON 포트 (SFP 광학 모듈:클래스 B+,C+,C++),버전 806/807 |
| EPBD | 8에폰 포트 (SFP 광학 모듈:PX20+), 버전 802/808/809 |
| EPSD | 8에폰 포트 (SFP 광학 모듈:PX20+) |
| GPFD | 16GPON 포트 (SFP 광학 모듈:클래스 B+,C+,C++) |
| EPFD | 16에폰 포트 (SFP 광학 모듈:PX20+) |
| XGBD | 8*10G GPON Port (SFP 광학 모듈:XGPON N1/XGPON N2) |
| XEBD | 8*10G EPON Port (SFP 광학 모듈:10GEPON PRX30/10GEPON PR30) |
| GPHF | 16 GPON 포트 (SFP 광학 모듈:클래스 B+,C+,C++) |
| GPSF | 16 GPON 포트 (SFP 광학 모듈:클래스 B+,C+,C++) |
| GPLF | 16 GPON 포트 (SFP 광학 모듈:클래스 B+,C+,C++) |
| EPHF | 16 에폰 포트 (SFP 광학 모듈:PX20+) |
| XEHD | 8 10G EPON Port (SFP 광학 모듈:PX30 PRX30) |
| 젤드 | 8 10G EPON Port (SFP 광학 모듈:PX30 PRX30) |
| XGHD | 8 XG-PON Port (SFP 광학 모듈:XGPON N1) |
| XGLD | 8 XG-PON Port (SFP 광학 모듈:XGPON N1) |
| XGLF | 16 XG-PON Port (SFP 광학 모듈:XGPON N1) |
| XGSF | 16 XG-PON Port (SFP 광학 모듈:XGPON N1) |
Huawei XELD 10G Service Board Product Applications
