설명
Huawei CR5D0L2XFA70 보드는 2포트 10GBase LAN/WAN-SFP+ 유연한 카드 A입니다.(P50-A.하위 슬롯 1개 점유)
Huawei CR5D0L2XFA70 Board Product Overview
Huawei CR5D0L2XFA70 Board is 2-Port 10GBase LAN/WAN-SFP+ Flexible Card A(P50-A.하위 슬롯 1개 점유) for NE40 Series Rourer.
Huawei CR5D0L2XFA70 Board is based on a 2T hardware platform design, a large-capacity 2T routing line card, a mature wide-area SDN solution, a programmable NP chip and a VRP software platform, and features high performance, 저전력 소비, and evolution. The leading SRv6 technology realizes the intelligent connection of the network, and can be applied to the core nodes of enterprise WAN, large enterprise access nodes, 캠퍼스 상호 연결 및 융합 노드, and various large IDC network outlets.
NE40E supports innovative IP hard pipe technology to provide enterprises with high-quality IP dedicated line solutions. Strictly isolate soft and hard pipes through hardware to ensure that the bandwidth of hard pipes is not preempted. Realize rigid pipes similar to SDH. 동시에, IP FPM technology is used to realize flow-level service quality perception. Graphical displays are provided through network management and uTraffic to monitor business operation status in real time. , Realize the controllable, manageable and visible IP dedicated line business.

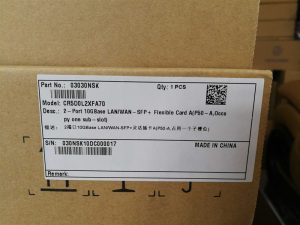

Huawei CR5D0L2XFA70 Board Product Pictures
Huawei CR5D0L2XFA70 Board Product Specifications
| 상표 | 화웨이 |
| 부품 번호 | 03030NSK |
| 모델 | CR5D0L2XFA70 |
| 설명 | 2-Port 10GBase LAN/WAN-SFP+ Flexible Card A(P50-A,Occupy one sub-slot) |
| Attributes | 하드웨어 |
| 정가(USD) | 141,661.25 |
| 범주 | Line Card |
| 제품 계열 | 네트워킹 |
| 제품군 | 라우터 |
| Overview | Line Card |
| 하위 제품군 | NetEngine NE80E Router |
| 제품 시리즈 | NE80E(엔터프라이즈 네트워크) |
| 어옴 | PCS |
| 순 치수(D*W*H mm) | 200*169*18 |
| 일반적인 전력(여) | 18.4 |
Huawei CR5D0L2XFA70 Board Product Features
- 장비 수준의 신뢰성: NE40E provides redundant backup of key components. Key components support hot swap and hot backup, NSR (Non-Stop Routing), NSF (논스톱 포워딩) and ISSU and other technologies to ensure uninterrupted business operation. NE40E supports 200ms packet buffer, no packet loss during burst traffic, ensuring high-quality service experience for users.
- 네트워크 수준의 신뢰성: NE40E provides IP/LDP/VPN/TE fast rerouting/Hot-Standby, IGP, BGP and multicast routing fast convergence, virtual routing redundancy protocol (VRRP, 가상 라우터 중복 프로토콜), fast ring network protection protocol (RRPP, 신속한 링 보호 프로토콜), TRUNK link sharing and backup, hardware BFD link 3.3ms fast detection, MPLS/Ethernet OAM, routing protocol/port/VLAN Damping and other technologies to ensure the stability of the entire network and provide end-to-end 200ms protection switching, no service interruption.
- 서비스 수준 신뢰성: The VPN FRR and E-VRRP technologies provided by NE40E, VLL FRR and Ethernet OAM technologies, and PW Redundancy and E-Trunk or E-APS technologies can be applied to L3VPN and L2VPN networking solutions to ensure redundancy at the service level. Excessive backup makes the business stable and reliable without interruption.
Huawei CR5D0L2XFA70 Board Product and More Service Unit
| 03030LYU | CR5D0EEGFE70 | 20-port 1000Base-X-SFP flexible card E (P40-E) |
| 3053421 | CR5D00L8XX70 | 8-port 10GBase LAN/WAN-XFP integrated line processing board (LPUI-41) |
| 3053422 | CR5D00L4XX71 | 4-port 10GBase LAN/WAN-XFP integrated line processing board (LPUI-41) |
| 3053542 | CR5D0L4XXA70 | 4-port 10GBase LAN/WAN-XFP integrated line processing board (LPUI-41, 1588v2 지원) |
| 3053423 | CR5D00EMGF70 | 48-port 100/1000Base-X-SFP integrated line processing board (LPUI-41) |
| 3053543 | CR5D0EKGFA70 | 40-port 100/1000Base-X-SFP integrated line processing board (LPUI-41, 1588v2 지원) |
| 3053420 | CR5DL2XEFG70 | 2-port 10GBase LAN/WAN-XFP and 24-port 100/1000Base-X-SFP integrated line processing board (LPUI-41) |
| 3053544 | CR5DL2XEEG7A | 2-port 10GBase LAN/WAN-XFP and 20-port 100/1000Base-X-SFP integrated line processing board (LPUI-41, 1588v2 지원) |
| 3054447 | CR5DLPUF5070 | Flexible card line processing board (LPUF-50, 4 하위 슬롯) |
| 03030NSK | CR5D0L2XFA70 | 2-port 10GBase LAN/WAN-SFP+ flexible card A (P50-A, occupying a sub-slot) |
| 03030PTB | CR5D00C8CF71 | 8-Port Channelized STM-1c POS-SFP Flexible Card (P50) |
| 03030PVG | CR5D00C4CF70 | 4-Port Channelized STM-1c POS-SFP Flexible Card (P50) |
| 3054393 | CR5DLPUF5170 | Flexible card line processing board (LPUF-51,2 sub-slots) |
| 03030QKN | CR5D0EEGEA70 | 20-port 10/100/1000Base-RJ45 flexible card A (P51-A) |
| 03030PMC | CR5D0L5XFA70 | 5-port 10GBase LAN/WAN-SFP+ flexible card A (P51-A, occupying 2 하위 슬롯) |
| 03030PME | CR5D0L2XFA71 | 2-port 10GBase LAN/WAN-SFP+ flexible card A (P51-A) |
| 03030PMA | CR5D0EFGFA70 | 24-port 100/1000Base-X-SFP flexible card A (P51-A) |
| 03030PYG | CR5D0L5XFE70 | 5-port 10GBase LAN/WAN-SFP+ flexible card E (P51-E, occupying 2 하위 슬롯) |
| 03030PYF | CR5D0L2XFE70 | 2-port 10GBase LAN/WAN-SFP+ flexible card E(P51-E) |
| 03030PYE | CR5D0EFGFE70 | 24-port 1000Base-X-SFP flexible card E (P51-E) |
| 3054395 | CR5D0L5XFA71 | 5-port 10GBase LAN/WAN-SFP+ integrated line processing board (LPUI-51) |
| 3054397 | CR5D0L4XFA70 | 4-port 10GBase LAN/WAN-SFP+ integrated line processing board (LPUI-51) |
| 3054412 | CR5DL2XEFG7A | 2-port 10GBase LAN/WAN-SFP+ and 24-port 100/1000Base-X-SFP integrated line processing board (LPUI-51) |
| 3054400 | CR5D0EMGFA70 | 48-port 100/1000Base-X-SFP integrated line processing board (LPUI-51) |
| 3054520 | CR5D0L5XFA7L | 5-port 10GBase LAN/WAN-SFP+ integrated line processing board L (LPUI-51-L) |
| 3054528 | CR5D0EMGFA7L | 48-port 100/1000Base-X-SFP integrated line processing board L (LPUI-51-L) |
Huawei CR5D0L2XFA70 Board Product Applications
