GYTS-8~12Xn Optic Cable is Loose sleeve stranded lightly armored optical cable

GYTS-8~12Xn Optic Cable Product Overview

GYTS optical cable is a communication cable with the same transmission speed as light, GYTS optical cable has wide bandwidth, fast transmission speed, good confidentiality, anti-electromagnetic field interference, good insulation, long life and good chemical stability. GYTS optical cables are mainly divided into two types: GYTS multi-mode optical cables and GYTS single-mode optical cables.
The structure of GYTS optical cable is to put 9/125μm single-mode fiber or 50/125μm, 62.5/125μm multi-mode fiber (silica) into a loose tube made of high-grade water-blocking material, and the loose tube is filled with water-blocking compound material. The center of the cable core is a metal reinforcing core, and for multi-core optical cables, the reinforcing core needs to be supplemented with a layer of PE jacket. Loose tubes and filler ropes are intertwined around a central reinforcing core, with a compact and rounded core. The gaps in the core are filled with water-blocking fillers. Double-sided wrinkled steel belt (PSP) 세로로 감싼 다음 폴리에틸렌 외피로 압출하여 케이블을 형성합니다..

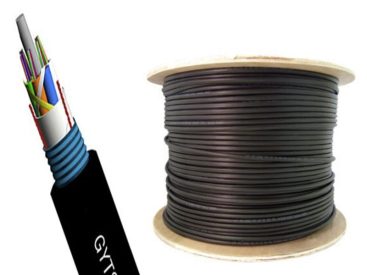

GYTS-8~12Xn Optic Cable Product Pictures

GYTS-8~12Xn Optic Cable ycictGYTS-8~12Xn Optic Cable Light-armored ycict

GYTS-8~12Xn Optic Cable GYTS Optic fiber cableGYTS Light-armored optic cable ycict

GYTS-8~12Xn Optic Cable Product Specifications

Fiber Optic Cable Model (2개 섬유 증분) 섬유의 수 케이싱 수 채우기 로프의 수 기준 케이블 무게
(kg/km)		 인장력이 허용됩니다.
장기/단기
(N)		 허용 가능한 압착력
장기/단기
(N/100mm)		 굴곡 반경
정적/동적
(mm)
GYTS-2~6Xn 2~6 1 4 96 600/1500 300/1000 10D/20D
GYTS-8~12XN 8~12 2 3 96
GYTS-14~18Xn 14~18 3 2 96
GYTS-20~24Xn 20~24 4 1 96
GYTS-26~30Xn 26~30 5 0 96
GYTS-32~36Xn 32~36 6 0 105
GYTS-38~48Xn 38~48 4 1 111
GYTS-50~60Xn 50~60 5 0 111
GYTS-62~72Xn 62~72 6 0 138
GYTS-74~84Xn 74~84 7 1 168
GYTS-86~96Xn 86~96 8 0 168
GYTS-98~108Xn 98~108 9 1 195
GYTS-110~120Xn 110~120 10 0 195
GYTS-122~132Xn 122~132 11 1 228
GYTS-134~144Xn 134~144 12 0 228
GYTS-146~216Xn 146~216 13~18 5~0 228
GYTS-288Xn 288 24 0 283
섬유 종류 attenuation （+20℃） 대역폭 조리개 광섬유 케이블 차단 파장
@850nm @1300nm @1310nm @1550nm @850nm @1300nm
G.652 — — 0.36dB/km 이하 0.22dB/km 이하 — — — ≤1260nm
G.655 — — 0.40dB/km 이하 0.23dB/km 이하 — — — ≤1450nm
50/125μm ≤3.0dB/km 1.0dB/km 이하 — — ≥500MHz·km ≥500MHz·km 0.200±0.015NA —
62.5/125μm ≤3.3dB/km 1.0dB/km 이하 — — ≥200MHz·km ≥500MHz·km 0.275±0.015NA —

GYTS-8~12Xn Optic Cable Product Features

  • 까지 144 fiber cores.
  • The loose tube stranding technology make the fibers have good secondary excess length and allow
  • The fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
  • Corrugated steel tape armored and PE outer sheath providing property crush resistance and gun shot resistance features.
  • Metal strength member provides excellent strain performance.
  • Low dispersion and attenuation
  • Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
  • The armoring of corrugated steel tape make cable have nice properties of moisture resistance and crush resistance
  • With small cable diameter, light cable weight, easily to lay
  • The jacket also can be made of HFFR, which cable model is GYTZS
  • 작동 온도: -40 ~ +60 씨

GYTS-8~12Xn Optic Cable and More Optic Cables

  • 경장갑 케이블(GYXTW)
  • 실내외 유니튜브 비금속 마이크로 케이블 (제트기)
  • Unitube 비장갑 케이블(GYXY)
  • Unitube 비금속 비장갑 케이블(GYFXY)
  • 두 개의 FRP 공중 광섬유 케이블 (내 인생)
  • 연선 느슨한 튜브 비장갑 케이블(GYTA)
  • 연선 느슨한 튜브 경장갑 케이블(GYTS)
  • 연선 느슨한 튜브 기갑 케이블(GYTY53)
  • 연선 느슨한 튜브 기갑 케이블(GYTA53)
  • 비금속 강도 부재 비장갑 케이블(GYFTY)
  • 비금속 강도 부재 비외장 케이블(함께)
  • 비금속 강도 부재 외장 케이블(GYFTY53)
  • 비금속 강도 부재 외장 케이블(GYFTA53)
  • 수치 8 케이블(GYXTC8S)
  • 수치 8 케이블 ( GYFTC8S)
  • 수치 8 케이블(GYTC8A)
  • 수치 8 케이블(GYTC8S)
  • 모든 유전체 자립형 공중 케이블(ADSS)

GYTS-8~12Xn Optic Cable Product Applications

  • Long-distance communication and Local communication
  • Especially suitable for occasions with high requirements for moisture-proof and rodent-proof

GYTS-8~12Xn Optic Cable Product Structure
