PLC スプリッター SC/UPC 1*2 Insert Type is 1×2 PLC Fiber Optic Splitter Box SC/UPC Connector Insert Type Applied for optical networks
PLC スプリッター SC/UPC 1*2 Insert Type Overview
Optical fiber splitter (also called optical splitter) is an optical fiber convergence device that realizes the coupling, branching and distribution of optical signals in the optical network system. It is one of the most important passive components in the optical fiber link, with multiple inputs and multiple outputs, and a splitter has M inputs and N outputs are represented by M*N. Combining multiple optical signals into one signal is called a synthesizer.
According to the production process, there are planar waveguide optical fiber splitter (PLC Splitter) and fused taper splitter (FBTSplitter), the optical splitting platform launched by the company can completely copy one or more copies of data to downstream equipment without affecting the transmission of the original link to ensure the stability and reliability of data acquisition. The product adopts modular design, supports various types of optical splitter integration, and the splitting ratio can be optional, which can meet the data imaging and acquisition of all applications, and the product has passed the Telcordia GR-1221-CORE test and meets RoHS requirements.

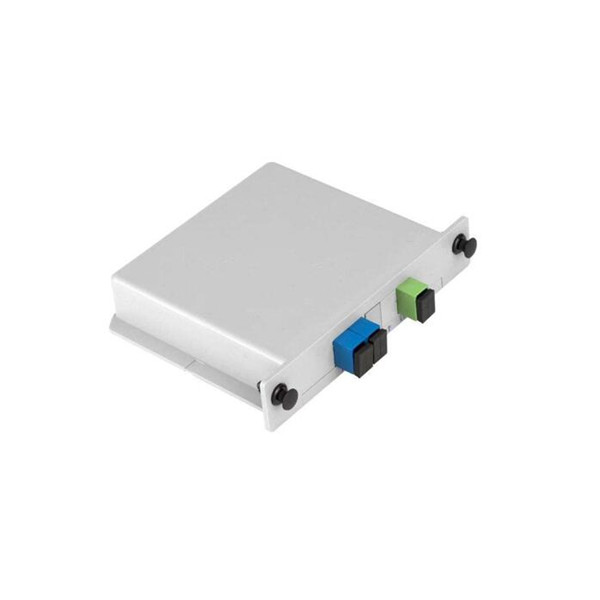

PLC スプリッター SC/UPC 1*2 タイプ画像を挿入します
PLC スプリッター SC/UPC 1*2 タイプ仕様を挿入します
| 1*nタイプPLC仕様を挿入します | |||||||
| アイテム | 1X2 | 1X4 | 1X8 | 1x16 | 1x32 | 1x64 | ユニット |
| 挿入損失 | ≤4.2 | ≤7.20 | ≤10.5 | ≤13.5 | ≤16.9 | ≤20.5 | dB |
| 均一 | ≤0.6 | ≤0.6 | ≤0.8 | ≤1.1 | ≤1.5 | ≤2.0 | dB |
| モジュラーパッケージサイズ | 100x80x10 | 120x80x18 | 140x115x18 | んん | |||
| (ABSブラックボックス) | ねじ穴の間隔: 74×70 | ねじ穴の間隔: 80×74 | クルーホール間隔: 106×100 | ||||
| (長さ×幅×高さ) | |||||||
| 波長をテストします | 1310&1490&1550 | nm | |||||
| 動作波長範囲 | 1260～1650 | nm | |||||
| 偏光依存性損失 | < 0.2 | < 0.3 | dB | ||||
| 方向性 | >55 | dB | |||||
| リターンロス | >55 | dB | |||||
| 動作温度 | -40～+85 | ℃ | |||||
| 保管温度 | -40～+85 | ℃ | |||||
| 2*nタイプPLC仕様を挿入します | |||||||
| アイテム | 2X2 | 2X4 | 2X8 | 2x16 | 2x32 | 2x64 | ユニット |
| 挿入損失 | ≤4.2 | ≤8.0 | ≤11.0 | ≤14.3 | ≤17.5 | ≤20.5 | dB |
| 均一 | 0.6 | ≤1.5 | ≤1.5 | ≤1.8 | ≤2.3 | ≤2.5 | dB |
| モジュラーパッケージサイズ | 100x80x10 | 120x80x18 | 140x115x18 | んん | |||
| (ABSブラックボックス) | ねじ穴の間隔: 74×70 | ねじ穴の間隔: 80×74 | クルーホール間隔: 106×100 | ||||
| (長さ×幅×高さ) | |||||||
| 波長をテストします | 1310&1490&1550 | んん | |||||
| 動作波長範囲 | 1260～1650 | nm | |||||
| 偏光依存性損失 | < 0.2 | < 0.3 | dB | ||||
| 方向性 | >55 | dB | |||||
| リターンロス | >55 | dB | |||||
| 動作温度 | -40～+85 | ℃ | |||||
| 保管温度 | -40～+85 | ℃ | |||||
PLC スプリッター SC/UPC 1*2 タイプの機能を挿入します
- 低PDL
- 低い挿入損失
- コンパクトなデザイン
- High Reliability and Stability
- 良好なチャネル間の均一性
- 広い動作波長:From 1260nm to 1650nm
- 幅広い動作温度: From -40°C to 85°C
PLC スプリッター SC/UPC 1*2 タイプアプリケーションを挿入します
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
PLC スプリッター SC/UPC 1*2 タイプトポルギーを挿入します
