GYTA-38~48Xn Optic Cable is Stranded Loose Tube Non-armored Cable
GYTA-38~48Xn Optic Cable Product Overview
GYTA fiber optic cable is constructed with 250 micron fibers packed into a loose casing made of high-modulus material, filled with a waterproof compound.The center of the cable core is a metal reinforced core, for some fiber optic cable core number, metal reinforced core outside also need to squeeze a layer of polyethylene (PE).Loose casing (and filling rope) is twisted around the center stiffener to form a compact and round cable core, with gaps in the core filled to block water filler.APL coated aluminum strip (APL) longitudinally wrapped and extruded polyethylene sheathed cable.

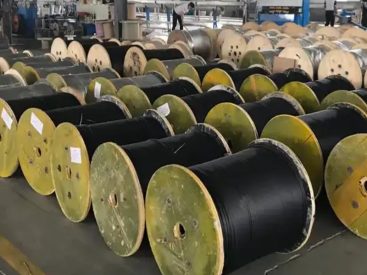

GYTA-38~48Xn Optic Cable Product Pictures
GYTA-38~48Xn Optic Cable Product Specifications
| Fiber Optic Cable Model (in 2-fiber increments) | Number of fibers | Number of casings | Number of fill ropes | Reference cable weight （kg/km） |
Tensile force is allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Bend radius 静的/動的 (んん) |
|
| GYTA-2~6Xn | 2~6 | 1 | 4 | 76 | 600/1500 | 300/1000 | 10D/20D | |
| GYTA-8~12Xn | 8~12 | 2 | 3 | 76 | ||||
| GYTA-14~18Xn | 14~18 | 3 | 2 | 76 | ||||
| GYTA-20~24Xn | 20~24 | 4 | 1 | 76 | ||||
| GYTA-26~30Xn | 26~30 | 5 | 0 | 76 | ||||
| GYTA-32~36Xn | 32~36 | 6 | 0 | 85 | ||||
| GYTA-38~48Xn | 38~48 | 4 | 1 | 90 | ||||
| GYTA-50~60Xn | 50~60 | 5 | 0 | 90 | ||||
| GYTA-62~72Xn | 62~72 | 6 | 0 | 113 | ||||
| GYTA-74~84Xn | 74~84 | 7 | 1 | 136 | ||||
| GYTA-86~96Xn | 86~96 | 8 | 0 | 136 | ||||
| GYTA-98~108Xn | 98~108 | 9 | 1 | 163 | ||||
| GYTA-110~120Xn | 110~120 | 10 | 0 | 163 | ||||
| GYTA-122~132Xn | 122～132 | 11 | 1 | 190 | ||||
| GYTA-134~144Xn | 134~144 | 12 | 0 | 190 | ||||
| GYTA-146~216Xn | 146～216 | 13~18 | 5~0 | 190 | ||||
| GYTA-288Xn | 288 | 24 | 0 | 239 | ||||
| ファイバーの種類 | attenuation | 帯域幅 | 開口数 | Fiber optic cable cut-off wavelength | ||||
| （+20℃） | ||||||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125μm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125μm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYTA-38~48Xn Optic Cable Product Features
- Precise control of the residual length of the optical fiber ensures that the optical cable has good tensile performance and temperature characteristics.
- ルースチューブ素材自体が耐水性が高く、強度も高い, and the tube is filled with special ointment, which is critical to protect the optical fiber, and has good pressure resistance and flexibility.
- PE sheath has good resistance to ultraviolet radiation and environmental stress cracking.
- 光ケーブルの防水性能を確保するために次のような対策を講じています。:
- Single wire centre reinforcement;
- Loose cannula filled with special fiber paste;
- 100% core filling;
- GYTA double-sided plastic coated aluminum tape (APL) to improve the moisture permeability of fiber optic cables;
- Good water-blocking materials to prevent longitudinal water seepage of the optical cable.
GYTA-38~48Xn Optic Cable Product Applications
- Long-distance communication backbone network: the backbone optical cable of inter-city or intercity communication.
- Local access network: connects the community and business building to the nearest convergence point to achieve the last 100 meters of optical signal transmission.
- Emergency & Military Communications: Due to its excellent reliability and robustness, it is suitable for temporary installation or fixed lines under extreme conditions.
