説明
F890L FTTH WiFi 6 4 Antenna is an Wi-Fi 6 ルーティング型光ネットワーク端末 4 GEポート, 1 POTSポート, 2 USBポート, plus 2.4G and 5G Wi-Fi connectivity, which is a perfect option for broadband access.
F890L FTTH WiFi 6 4 Antenna Product Overview
F890L FTTH WiFi 6 4 Antenna is an intelligent Wi-Fi 6 ルーティング型光ネットワーク端末 4 GEポート, 1 POTSポート, そして 2 USBポート, and 2.4G and 5G Wi-Fi. The modem adopts Gigabit Passive Optical Network (GPON) ウルトラブロードバンドアクセスを提供するテクノロジー, ハイパフォーマンス, ユーザーを幅広くカバー. With high forwarding performance, it ensures an exceptional experience for voice, データ, 高精細度 (HD) video services as well as future-oriented service support capabilities and visualized network management, F890L FTTH WiFi 6 helps enterprises construct powerful all-optical access solutions.
Passive optical networking (ポン) is a communication technology used to deliver optical fiber to end users, including home and business users. The distinguishing feature of passive optical networks is that they implement a point-to-multipoint architecture. It uses passive fiber splitters to enable a single fiber to serve multiple end nodes. The endpoint here is usually an individual customer, not a business customer. Passive optical networks don’t have to provide separate fibers between the hub and the user.

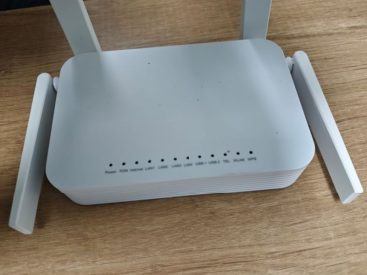

F890L FTTH WiFi 6 4 Antenna Product Pictures
F890L FTTH WiFi 6 4 Antenna Product Specifications
| Moodel | F890L FTTH WiFi 6 4 アンテナ |
| Pon type | GPON |
| 寸法 (高さ×幅×奥行き) | 290 バツ 130 バツ 40 んん (外部アンテナとパッドなし) |
| 重さ | 約 372 g |
| 動作温度 | 0–40℃ |
| 動作湿度 | 5-95%相対湿度 (結露しないこと) |
| 電源アダプタ入力 | 100–240VAC, 50/60 Hz |
| システム電源 | 11–14V DC, 1.5 あ |
| ポート | 4 ×GE, 1 ×缶, 2 × USB 2.0, 2.4G/5G Wi-Fi 6 |
| 最大消費電力 | 18 W |
| アンテナ | 外部アンテナ |
| インストールモード | デスクトップ |
| 省エネ | COC V7 |
| USBポート | USB 2.0 FTP-based network storage File/Print sharing based on SAMBA DLNA function |
| POTSポート | 最大実行時間: 4 G.711A/μ, G.729a/b, および G.722 エンコード/デコード T.30/T.38/G.711 fax mode DTMF 緊急通報 (SIPプロトコルを使用した場合) |
F890L FTTH WiFi 6 4 Antenna Product Features
- Among various broadband access technologies, passive optical networks have become popular technologies due to their advantages of large capacity, 長い伝送距離, 低コスト, and full-service support. The passive optical networks that have been gradually commercialized in the past mainly include TDM-PON (APON, 電話をかける, GPON) and WDM-PON, which have the following common features:
- Good upgradeability, 低コスト, the active equipment is removed from the access network, so as to avoid the impact of electromagnetic interference and lightning, reduce the failure rate of lines and external equipment, and reduce the corresponding operation and maintenance costs;
- The service has good transparency, 高帯域幅, can be applied to signals of any format and rate, and can economically support analog radio and television services, and support triple play (声, ビデオ, データ) サービス;
- 高信頼性, QoS guarantee with different service priorities, adapting to the development trend of IP-based broadband access market and suitable for large-scale applications.
- With the wide application of optical fiber access technologies such as FTTB, FTTC, and FTTZ, passive optical networks have quickly become the most ideal access methods for various FTTx and have been widely used [1].
F890L FTTH WiFi 6 4 Antenna and More Models
F870L FTTH WiFi 5 2 アンテナ
F870L FTTH WiFi 5 4 アンテナ
F890L FTTH WiFi 6 2 アンテナ
F890L FTTH WiFi 6 4 アンテナ
F890L FTTH WiFi 6 4 Antenna Product Applications
