Descrizione
Huawei QSFP-100G-CLR4 Module is 100GBase-CLR4 Optical Transceiver.QSFP28.100G.Single-mode module (1310nm.2km.LC)
Huawei QSFP-100G-CLR4 Module Product Overview
Huawei QSFP-100G-CLR4 Module is a 100G optical module standard formulated by the 100G CLR4 Alliance. It is similar to the 100G QSFP28 CWDM4 optical module. This optical module also uses single-mode coarse wavelength division multiplexing (CWDM) tecnologia, using duplex LC interface, and single-mode optical fiber The transmission distance used together is also 2 km.
The difference is that the 100G QSFP28 CLR4 optical module can be used not only for fiber links with forward error correction (FEC), but also for fiber links without forward error correction (FEC). For fiber optic links with forward error correction (FEC), 100G QSFP28 CWDM4 optical modules and 100G QSFP28 CLR4 optical modules can be used together. In fiber links without forward error correction (FEC), the 100G QSFP28 CLR4 optical module can also maintain low latency and low power consumption. This feature of the 100G QSFP28 CLR4 optical module makes it more popular in high-performance computing, high-frequency trading and other fields.
Huawei QSFP-100G-CLR4 Module Product Pictures
Huawei QSFP-100G-CLR4 Module Product Specifications
| Articolo | Descrizione |
| Marca | Huawei |
| Numero di parte | 02311MNP |
| Modello | QSFP-100G-CLR4 |
| Descrizione | 100Ricetrasmettitore ottico GBase-CLR4.QSFP28.100G.Modulo monomodale (1310nm.2km.LC) |
| Cavo applicabile e distanza massima di trasmissione | Fibra monomodale (G.652): 2 km |
| Fattore di forma del ricetrasmettitore | QSFP28 |
| Velocità di trasmissione | 100GE |
| Lunghezza d'onda centrale (nm) | 1271, 1291, 1311, 1331 |
| Conformità agli standard | 100GBASE-CLR4 (non-standard) |
| Trasmettere potenza (dBm) | -6.5 A +2.5 |
| Massima sensibilità del ricevitore (dBm) | -10.7 |
| Potenza di sovraccarico (dBm) | 2.5 |
| Tasso di estinzione (dB) | 3.5 |
| Temperatura di esercizio | 0da °C a 70 °C (32°F a 158°F) |
| Tipo di connettore | LC |
| UM | PZ |
| Peso della confezione(kg) | 0.064 |
| Volume della confezione(m^3) | 0.000433 |
| Dimensione del pacco(P*L*A mm) | 165*75*35 |
| Dimensione netta(P*L*A mm) | 72*18*11 |
| Linea di prodotto | Enterprise Networking |
| Sottofamiglia di prodotti | Centro centrale |
Huawei QSFP-100G-CLR4 Module Product Features
- Using hot-swappable QSFP28 package
- 4-channel full-duplex transceiver module
- 4-channel uncooled CWDM DFB laser and PIN ROSA
- Comply with QSFP28 MSA and 100G CLR4 MSA standards
- Compatible with InfiniBand EDR standard
- Maximum rate up to 103.125Gbps
- The transmission distance can be up to 2km through single-mode fiber
- Maximum power consumption is less than 3.5W
- Dual LC optical ports
- Operating temperature range from 0 A 70 degrees Celsius
- Power supply voltage 3.3V
- Comply with RoHS environmental protection standards (senza piombo)
Huawei QSFP-100G-CLR4 Module Product And More 100G SFP Module
| NO | Numero di parte | Modello | Descrizione |
| 1 | 02311KNU | QSFP28-100G-LR4 | 100Ricetrasmettitore ottico GBase-LR4,QSFP28,100G,Modulo monomodale (1310nm,10km,LC) |
| 2 | 02311MNM | QSFP28-100G-PSM4 | 100Ricetrasmettitore ottico GBase-PSM4,QSFP28,100G,Modulo monomodale (1310nm,0.5km,MPO) |
| 3 | 02311GBW | QSFP28-100G-SR4 | 100Ricetrasmettitore ottico GBase-SR4,QSFP28,100G,Multimodalità (850nm,0.1km,MPO) |
| 4 | 02311MNP | QSFP-100G-CLR4 | 100Ricetrasmettitore ottico GBase-CLR4.QSFP28.100G.Modulo monomodale (1310nm.2km.LC) |
| 5 | 02311MNN | QSFP-100G-CWDM4 | 100Ricetrasmettitore ottico GBase-CWDM4,QSFP28,100G,Modulo monomodale (1310nm,2km,LC) |
| 6 | 02311RPC | QSFP-100G-ER4-Lite | 100Ricetrasmettitore ottico GBase-ER4-Lite,QSFP28,100G,Modulo monomodale (1310nm,30km(FEC disattivata),40km(FEC ATTIVA),LC) |
| 7 | 02311MNN | QSFP-100G-CWDM4 | 100Ricetrasmettitore ottico GBase-CWDM4,QSFP28,100G,Modulo monomodale (1310nm,2km,LC) |
| 8 | 02311VYC | QSFP-100G-CWDM4-NT | 100Ricetrasmettitore ottico GBase-CWDM4,QSFP28,100G,Modulo monomodale (1310nm,2km,LC,NT) ,20-65C |
| 9 | 02312Stati Uniti d'America | QSFP-100G-CWDM4-ISP | 100Ricetrasmettitore ottico GBase-CWDM4,QSFP28,100G,Modulo monomodale (1310nm,2km,LC,ISP) |

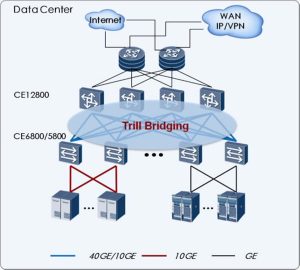

Huawei QSFP-100G-CLR4 Module Product Applications
