Descrizione
Huawei ES5D21X08S00 is eight 10GE SFP+ optical ports for data access and line-rate switching applied for S6720-30C-EI-24S-AC, S6720-30C-EI-24S-DC, S6720-54C-EI-48S-AC, S6720-54C-EI-48S-DC

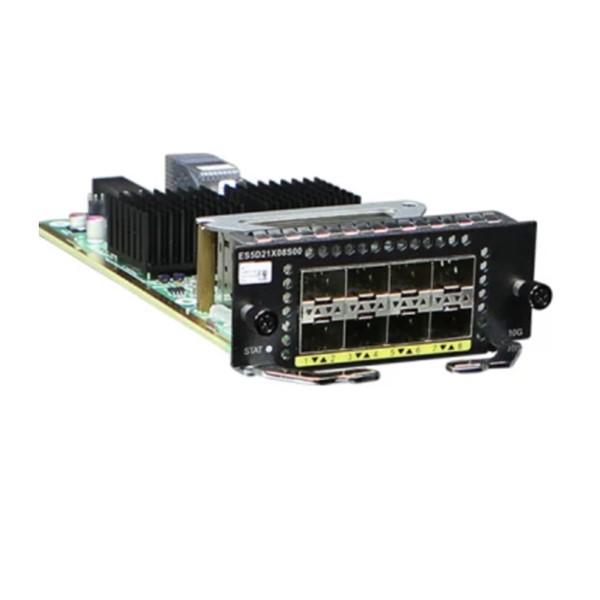

Huawei ES5D21X08S00 Product Pictures
Huawei ES5D21X08S00 Product Specifications
| Numero di parte | 98010738 |
| Card Model | ES5D21X08S00 |
| Software Version | S5730-HI: V200R012C00 to V200R019C10 versions |
| ES5D21X08S00 | 8-port 10GE SFP+ rear optical interface card |
| Basic function | Provides eight 10GE SFP+ optical ports for data access and line-rate switching. |
| Scambio a caldo | Supportato |
| onnector type | LCD/PC |
| Applied Switch | S5730-36C-HI S5730-36C-PWH-HI S5730-44C-HI (can be installed only in slot 1) S5730-44C-PWH-HI (can be installed only in slot 1) S5730-60C-HI S5730-60C-PWH-HI S5730-68C-HI (can be installed only in slot 1) S5730-68C-PWH-HI (can be installed only in slot 1) S5730-44C-HI-24S (can be installed only in slot 1) S5730-36C-HI-24S S5730-60C-HI-48S S5730-68C-HI-48S (can be installed only in slot 1) |
| Optical port attributes | Depend on the optical module. Per dettagli, see GE eSFP Optical Modules (a maximum transmission distance of 40 km), GE SFP Copper Modules, and 10GE SFP+ Optical Modules (a maximum transmission distance of 10 km). |
| Specifiche fisiche | Dimensioni (A x L x P): 40 mmx 100 mmx 208 mm (1.57 In. X 3.94 In. X 8.19 In.) Peso: 0.26 kg (0.57 libbre) Consumo energetico massimo: 35.8 W |
Huawei ES5D21X08S00 and More Cards
ES5D21Q02Q00 (2-Porta 40 Gig QSFP+ Rear Interface Card)
ES5D21Q04Q01 (4-Porta 40 Gig QSFP+ Rear Interface Card)
ES5D21X04S01 (4-Porta 10 GE SFP+ Rear Interface Card)
ES5D21X08S00 (8-Port 10GE SFP+ Rear Optical Interface Card)
| Card Type | Nome della carta | Card Description | Scambio a caldo |
| Front card | ES5D000X2S00 | 2-port 10GE SFP+ optical interface card | Non supportato |
| Front card | ES5D000X4S01 | 4-port 10GE SFP+ optical interface card | Non supportato |
| Front card | ES5D000G4S01 | 4-port GE optical interface card | Non supportato |
| Front card | ES5D00G4SA01 | 4-port GE optical interface card | Non supportato |
| Front card | ES5D00X2SA00 | 2-port GE SFP or 10GE SFP+ optical interface card | Supportato |
| Front card | ES5D00X4SA00 | 4-port GE SFP or 10GE SFP+ optical interface card | Supportato |
| Front card | ES5D00G4SC00 | 4-port GE SFP optical interface card | Supportato |
| Front card | ES5D21G16S00 | 16-port GE SFP optical interface card | Supportato |
| Front card | ES5D21G16T00 | 16-port GE RJ45 interface card | Supportato |
| Rear card | ES5D21G08S00 | 8-port GE SFP optical interface card | Supportato |
| Rear card | ES5D21G08T00 | 8-port GE RJ45 interface card | Supportato |
| Rear card | ES5D21X02S00 | 2-port GE SFP or 10GE SFP+ optical interface card | Supportato |
| Rear card | ES5D00ETPC00 | Stack card | Non supportato |
| Rear card | ES5D00ETPB00 | Extended channel card | Non supportato |
| Rear card | ES5D21L04Q00 | 4-port 40GE QSFP+ optical interface card | Supportato |
| Rear card | ES5D21Q02Q00 | 2-port 40GE QSFP+ optical interface card | Supportato |
| Rear card | ES5D21Q04Q01 | 4-port 40GE QSFP+ optical interface card | Supportato |
| Rear card | ES5D21X04S00 | 4-port 10GE SFP+ optical interface card | Supportato |
| Rear card | ES5D21X04S01 | 4-port 10GE SFP+ optical interface card | Supportato |
| Rear card | ES5D21X02S01 | 2-port 10GE SFP+ optical interface card | Supportato |
| Rear card | ES5D21X02T01 | 2-port 10GBASE-T RJ45 interface card | Supportato |
| Rear card | ES5D21X08T00 | 8-port 10GBASE-T RJ45 interface card | Supportato |
| Rear card | ES5D21X08S00 | 8-port 10GE SFP+ optical interface card | Supportato |
| Rear card | ES5D21VST000 | Dedicated stack card with 2*QSFP+ interface | Supportato |
| Rear card | S7X08000 | 8-port 10GE SFP+ or 2-port 25GE SFP28 optical interface card (only ports 1 E 2 support 25GE) | Supportato |
| Rear card | S7Y08000 | 8-port 25GE SFP28 optical interface card | Supportato |
| Rear card | S7Q02001 | 2-port 40GE QSFP+ optical interface card | Supportato |
| Rear card | S7C02000 | 2-port 100GE QSFP28 optical interface card | Supportato |
