Descrizione
HN8145XR FTTH is an optical terminal XG-PON and Asymmetric 10G EPON Wi-Fi 6 with 4*GE+1*POTS+2*USB+2.4G/5G 11ax WIFI, 5dBi
HN8145XR FTTH Product Overview
HN8145XR FTTH offers an all-optical home solution, which uses XG-PON or asymmetric 10G EPON technology to achieve ultra-broadband access for users, and provides users with Gigabit dual-band Wi-Fi 6 and downlink optical ports.

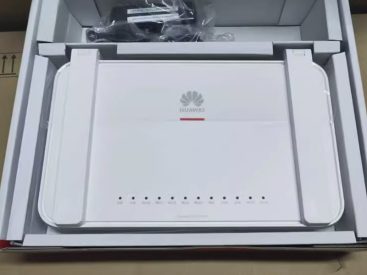

HN8145XR FTTH Product Pictures
HN8145XR FTTH Product Specifications
| Articolo | Specifiche |
| Modello | HN8145XR |
| Porte lato utente | 1 x LATTINE + 4 xGE + 1 xUSB + 2.4G/5G 11ax Wi-Fi 6 |
| Massimo. consumo di energia | 20 W |
| Porta lato rete | XG-PON |
| EPON 10G asimmetrico | |
| Ambiente di lavoro | Temperatura di esercizio: 0ºC a 40ºC |
| Umidità ambientale: 5% A 95% (senza condensa) | |
| Specifiche di potenza | Ingresso adattatore di alimentazione: 170 ～ 240 V CA，50/60 Hz |
| Alimentazione del sistema: 12V CC, 2 UN | |
| Wi-Fi | 2×2 MIMO（2.4G&5G） |
| IEEE 802.11 ascia (2.4G&5G) | |
| WMM(Wi-Fi multimediale) | |
| Guadagno dell'antenna: 5 dBi | |
| Tasso di interfaccia aerea: 574 Mbit/s (2.4G), 2402 Mbit/s (5G) | |
| Dimensioni (lunghezza x larghezza x altezza) | 240mm x 151mm x 40mm |
| Peso | Di 400 G |
HN8145XR FTTH Product Features
- User-side interfaces
1Telefono + 4GE + 1USB + 2.4G &5G Wi-Fi 6+1 optical port
- True Gigabit Wi-Fi
The next-generation Wi-Fi 6 wireless technology supports 2X2 MIMO (2.4GHz&5GHz) and 160MHz bandwidth, with a physical air interface rate of up to 3000Mbps
- 10 trillion uplink
10 Gigabit uplink access, which works with slave FTTR to achieve fiber-to-the-room, realizes true gigabit network in each room
- Seamless roaming
It supports switching between different FTTRs, with no service interruption and a roaming handover time < 50 SM>
- One-click acceleration
It can realize 60+ APP recognition such as live broadcast and video, and one-click acceleration
- One-click management
Remote network visualization, one-click optimization, parental management and other intelligent operation and maintenance functions can be carried out through the APP
HN8145XR FTTH and More Modls
| Ponte ONT | FE | GE | VASI | Wifi | USB | Alcuni |
| EG8010H | – | 1 | – | – | – | – |
| EG8040H | – | 4 | – | – | – | – |
| EG8240H | – | 4 | 2 | – | – | – |
| EG8242H | – | 4 | 2 | – | – | 1 |
| Gateway ONT | ||||||
| EG8120L | 1 | 1 | – | – | – | – |
| EG8045H | – | 4 | – | B / G / N | 1 | – |
| EG8245H | – | 4 | 2 | B / G / N | 1 | – |
| EG8141A5 | 3 | 1 | 1 | UN / B / G / N | 1 | – |
| EG8145V5 | – | 4 | 1 | UN / B / G / N / AC | 1 | – |
| HG8245D | – | 4 | 2 | UN / B / G / N | 1 | – |
| EG8247H | – | 4 | 2 | B / G / N | 1 | 1 |
| HG8245Q | – | 4 | 2 | UN / B / G / N / AC | 2 | – |
| PoE ONT | 30W per porta, 60 / 120W per sistema (4/8 porta) | |||||
| EG8040P | 4 | – | – | – | – | |
| EG8080P | 8 | – | – | – | – | |
| EG8240P | 4 | 2 | – | – | – | |
| EG8280P | 8 | 2 | – | – | – | |
| 10G XPON ONT | 10GE | GE | VASI | Wifi | USB | |
| HN8245Q | – | 4 | 2 | UN / B / G / N / AC | 2 | |
| HN8055Q | 1 | 4 | 2 | UN / B / G / N / AC | 2 | |
| HN8255WS | 4+10GE | 2 | UN / B / G / N / AC | 2 | ||
| HN8346X6 | – | 4 | 1 | UN / B / G / N / AC | 2 | – |
| EG8145X6 | – | 4 | 1 | UN / B / G / N / AC | 2 | – |
| HS8145X6 | 4 | 1 | 2.4G/5G 11ax | 2 | – | |
| HN8346V5 | 4 | 1 | 2.4G/5G11a | 2 | – | |
| HN8145X6 | 4 | 1 | 2.4G/5G 11ax | 2 | – | |
| HN8145XR | – | 4 | 1 | 2.4G/5G 11ax | 1 | – |
HN8145XR FTTH Product Applications
