Descrizione
GYXTS-14~18Xn Optic Cable is Uni-tube Anti-rodent Optical Cable
GYXTS-14~18Xn Optic Cable Product Overview
GYXTS all'aperto comunicazione fibra optic cavo È UN kind Di fibra optic cavo con specific struttura E performance, which È widely used In comunicazione reti. GYXTS fiber optic cable ioS a kind of central Bundle tube optical cable, UNnd iots Main Structure ioncludes central loose tube, Phosphated Steel wire Reinforcing Member UNnd Steel-Polyethylene Bonded Sheath. Questo kind Di fibra optic cavo ha good tensile resistance, side pressure resistance, E ultraviolet resistance, E È suitable per long–distance comunicazione E inter–ufficio comunicazione, especially In all'aperto environments.

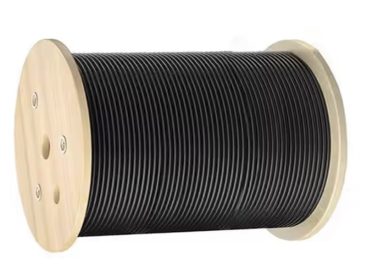

GYXTS-14~18Xn Optic Cable Product Pictures
GYXTS-14~18Xn Optic Cable Product Specifications
| Fiber Optic Cable Model (in 2-fiber increments) | Number of fibers | Reference cable weight （kg/km） | Tensile force allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100 mm) |
Raggio di curvatura Statico/Dinamico (mm) |
|||
| GYXTS-8~12Xn | 2~12 | 108 | 600/1500 | |||||
| GYXTS-14~18Xn | 14~18 | 116 | 1000/3000 | 10D/20D | ||||
| GYXTS-20~24Xn | 20~24 | 126 | ||||||
| GYXTS-26~30Xn | 26~30 | 137 | 1000/3000 | |||||
| GYXTS-32~36Xn | 30~36 | 142 | ||||||
| Tipo di fibra | attenuation | larghezza di banda | Apertura numerica | Fiber optic cable cut-off wavelength | ||||
| （+20℃） | ||||||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260 nm |
| G.655 | — | — | ≤0.40dB/km | ≤0,23 dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYXTS-14~18Xn Optic Cable Product Features
• Accurate process control ensuring good mechanical and temperature performances
• The material of loose tubes with good hydrolysis resistance and relatively high strength
• Tube filling compound providing key protection for fibres
• Excellent crush resistance and flexibility
• Wrapped steel wires providing good anti-rodent performance
• Small size and light weight, easy for installation
• Applicable to duct and aerial installations
GYXTS-14~18Xn Optic Cable Product and More Optic Cables
Center Tube Sheathed Fibra Optic Cavo con Anti–Rodent (GYDXTS)
ION-Tube Sheathed UNnti-Rodent Fiber Optic Cable (GYXTS)
Centro 53 Sheathed UNnti-Rodent Cable(GYXTY53)
loose tube type Single thin Round Steel wire UNrmored optical cable(GYXTA33)
Fiber Bundle Center Tube Sheathed UNnti-Rodent Fiber Optic Cable (GYSXTS)
Fiber Bundle UNir Blowing Micro Cable (GYCFSY)
NSU-Metallic central tube lightning UNnd Rodent Protection optical cable(GYQFXTY)
NSU-Metallic central tube 73 Sheathed lightweight lightning UNnd Rodent fiber optic cable (GYQFXTY73)
Flame Retardant fiber optic cable fO central tube coal Mine (MGXTW)
Flame Retardant optical cable fO loose Sleeve Stranded coal Mine (MGTS)
Stranded NSU-Metallic UNirblowing Fiber Optic Cable (JET)
Miniature NSU-Metallic UNirblown Fiber Optic Cable (JET)
All–dielectric self–supporting cavo (ADSS)
GYXTS-14~18Xn Optic Cable Product Applications
- Core network, metropolitan area network and access network
- laying methods: overhead, pipeline and direct burial
GYXTS-14~18Xn Optic Cable Product Structure
