GYXTA33-14~24Xn Optic Cable is Loose central tube type single thin round steel wire armored ottico cavo
GYXTA33-14~24Xn Optic Cable Product Overview
GYXTA33 optical cable is designed with colored optical fibers housed in a loose tube made of high-modulus, water-resistant material, filled with thixotropic water-blocking gel for enhanced fiber protection. Surrounding the loose tube is a layer of fine circular steel wires twisted to create a compact, round cable core, with interstices filled with water-blocking material for additional moisture resistance. The cable is wrapped longitudinally with coated aluminum tape, extruded with a polyethylene inner sheath, armored with a single layer of fine circular steel wire, and finished with a durable polyethylene outer sheath, ensuring exceptional mechanical strength and environmental protection for a wide range of applications

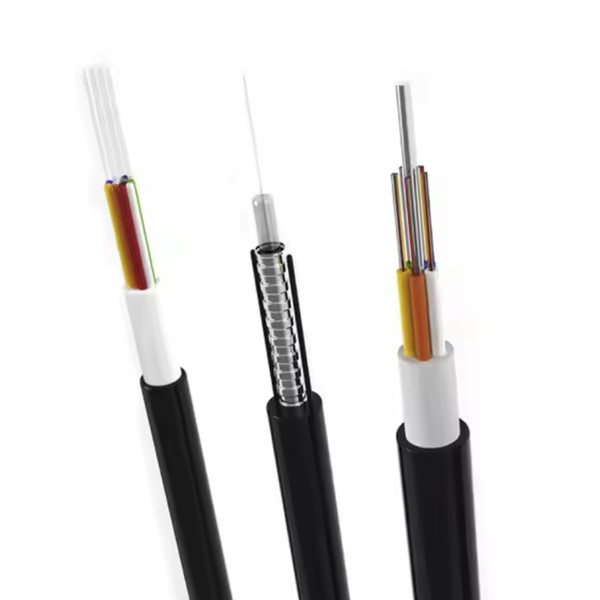

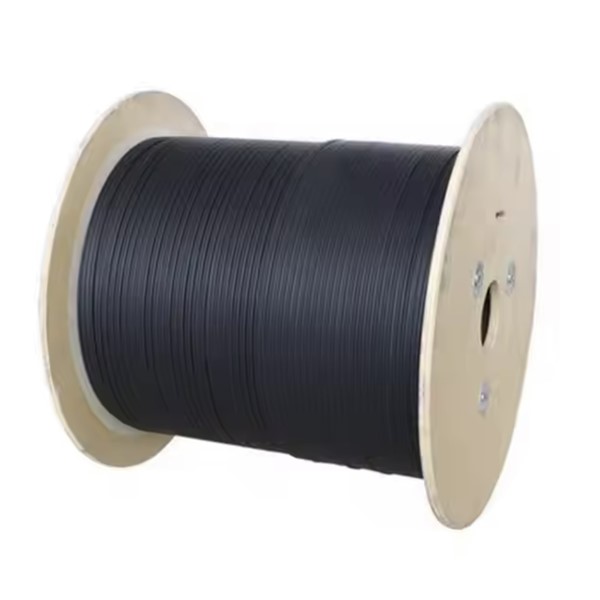

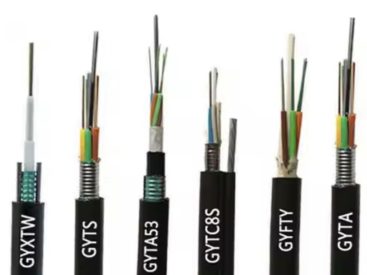

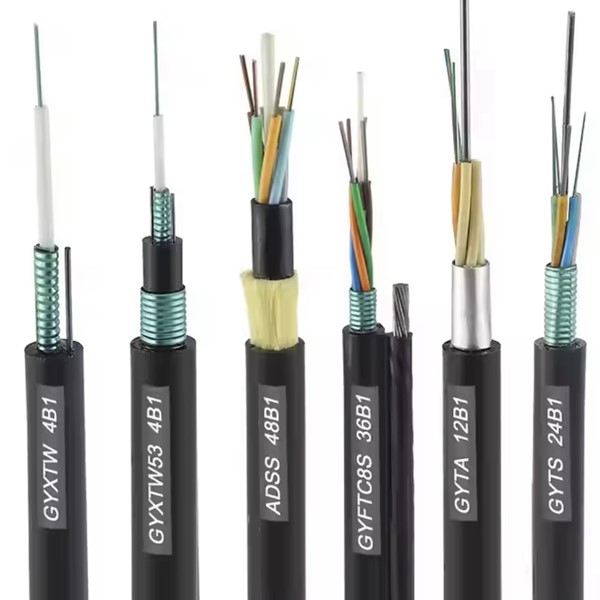

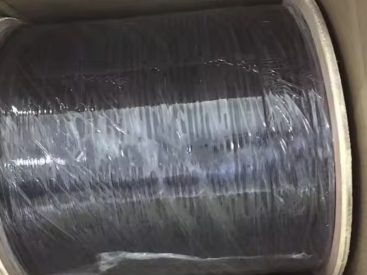

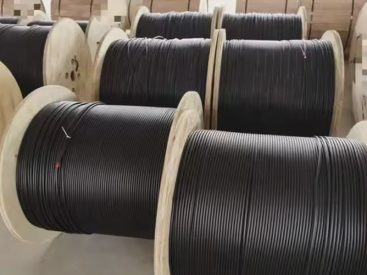

GYXTA33-14~24Xn Optic Cable Product Pictures
GYXTA33-14~24Xn Optic Cable Product Specifications
| Fiber Optic Cable Type (in 2-fiber increments) | Number of fibers | Reference cable weight (kg/km) | Tensile force is allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100 mm) |
Raggio di curvatura Statico/Dinamico (mm) |
|||
| GYXTA33-2~12Xn | 2~12 | 448 | 3000/5000 | 12.5D/25D | ||||
| GYXTA33-14~24Xn | 14~24 | 478 | ||||||
| GYXTA33-26~36Xn | 26~36 | 510 | 4000/10000 | |||||
| Tipo di fibra | Attenuation （+20℃） | Larghezza di banda | Apertura numerica | Fiber optic cable cut-off wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260 nm |
| G.655 | — | — | ≤0.40dB/km | ≤0,23 dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.0dB/km | ≤1.0dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.3dB/km | ≤1.0dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYXTA33-14~24Xn Optic Cable Product Features
- Good mechanical performance and excellent temperature stability.
- Double-layer fine circular steel wire armor enhances tensile strength.
- Loose tube material provides high hydrolysis resistance and exceptional pressure resistance.
- Special grease inside the tube ensures crucial protection for optical fibers.
- Moisture-resistant coated aluminum tape offers enhanced durability.
- Compact size, lightweight design, and easy installation.
GYXTA33-14~24Xn Optic Cable Product and More Optic Cables
N central tube type unarmored fiber optic cable (GYXY)
Central Tube Light Armoured Fiber Optic Cable (GYXS/GYXTW)
Loose sleeve stranded light armored fiber strip cable (GYDTS)
Stranded loose jacket unarmoured fiber optic cable (GYDTA)
Stranded Loose Jacket Non-Metallic Reinforced Core Non-Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
Loose sleeve stranded reinforced core armored flame retardant optical cable(GYTZA53)
Loose sleeve stranded non-metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (INSIEME)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
GYXTA33-14~24Xn Optic Cable Product Applications
- Direct-Burial Installations: The cable’s steel wire armor provides high tensile strength and crush resistance, making it ideal for direct burial without additional protective conduits.
- Underwater and Subterranean Deployments: Designed to withstand sub-aquatic pressure, the GYXTA33 is suitable for installations beneath rivers, lakes, or other water bodies, as well as deep underground pathways.
- Long-Distance Communication Networks: Its low attenuation and chromatic dispersion characteristics make it suitable for long-haul transmission in backbone networks.

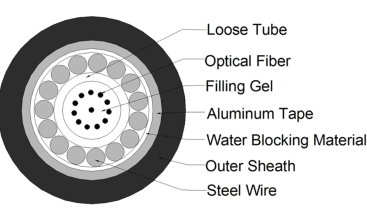

GYXTA33-14~24Xn Optic Cable Product Structures
