Descrizione
GYFTZY-50~60Xn Optic Cable is Loose sleeve stranded non–metallic reinforced nucleo non–armored flame retardant ottico cavo. It is Mainly used in outdoor environments, featuring waterproof, a prova di umidità, ultraviolet resistance, eccetera., and is suitable for power systems, industrial areas and urban environments and other occasions with high requirements for fire prevention and mechanical strength
GYFTZY-50~60Xn Optic Cable Product Overview
GYFTZY fibra optic cavo È UN kind Di small E medio–capacity non–metallic reinforced ottico cavo, which È suitable per residential indoor O all'aperto small E medio–span occasions. The Meaning ioS UNS follows:
G: The cable ioS fiberglass
Y: The outer Sheath Material ioS Polyethylene
FT: The core of the fiber optic cable is a casing Structure with two NSU-Metallic Reinforcing UNgents.
Z: The sheath of the optical cable ioS flame Retardant
Y: The outer Sheath of the optical cable ioS Made of Polyethylene
IOt can Be Seen that GYFTZY optical cable has Multiple Structures Such UNS central Reinforcement layer casing, NSU-Metallic Reinforcing UNgent UNnd flame Retardant Sheath, which can Resist Strong Pressures Such UNS Mechanical damage, Bending UNnd Pressure, UNnd has Good comprehensive UNnti-UV, flame Retardant, low Smoke UNnd halogen-free Performance. Therefore, GYFTZY fiber optic cable has the UNdvantages of poor Performance Resistance, high Strength UNnd low cost, UNnd ioS usually used ioN large-capacity outdoor oR iondoor fiber optic cable Systems. It È mainly suitable per companies, comunità, scuole, computer rooms, municipal projects E other fields that require grande–capacity dati transmission.

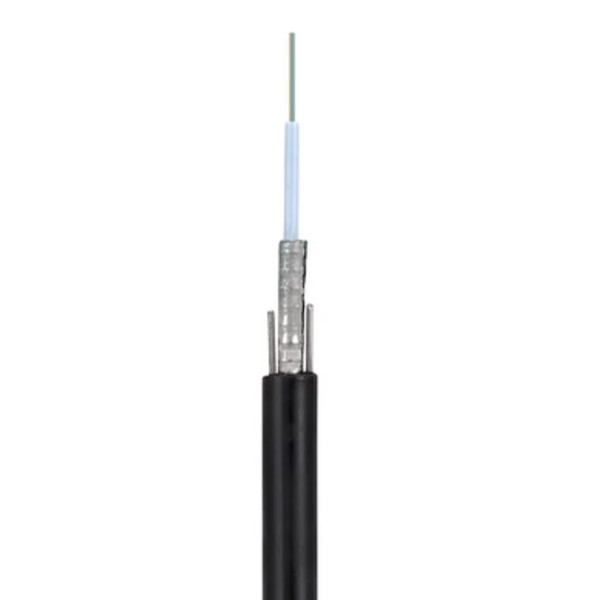

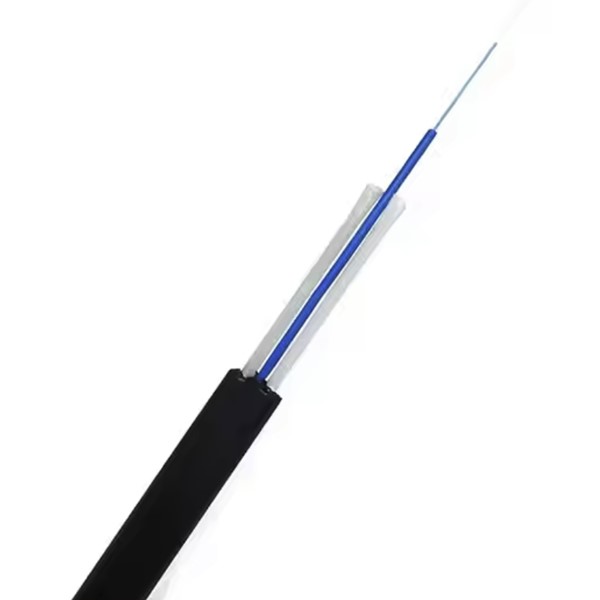

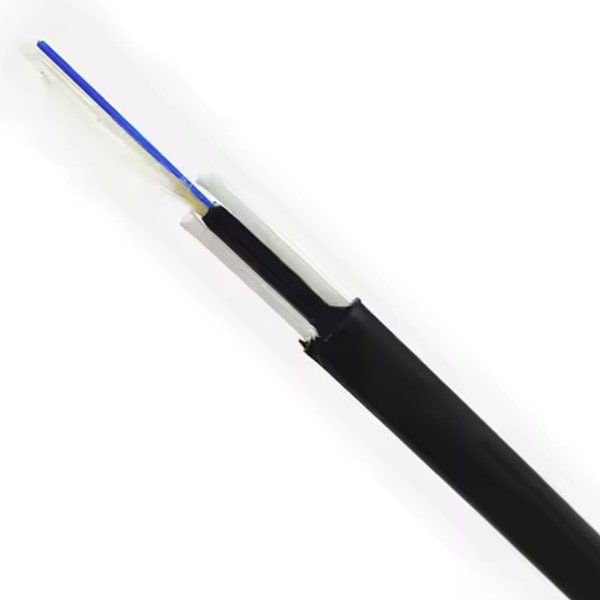

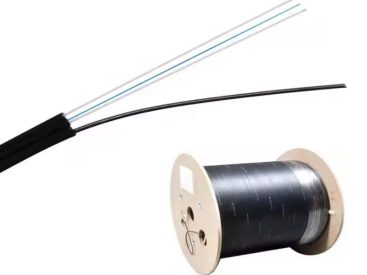

GYFTZY-50~60Xn Optic Cable Product Pictures
GYFTZY-50~60Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km) | Tensile force is allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100 mm) |
Raggio di curvatura Statico/Dinamico (mm) |
|
| GYFTZY-2~6Xn | 2~6 | 1 | 5 | 123 | 400/1000 | 300/1000 | 10D/20D | |
| GYFTZY-8~12Xn | 8~12 | 2 | 4 | 123 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 3 | 123 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 2 | 123 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 1 | 123 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 0 | 123 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 6 | 131 | 600/1500 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 5 | 131 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 4 | 131 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 3 | 131 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 2 | 131 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 1 | 131 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 0 | 131 | ||||
| GYFTZY-44~48Xn | 44~48 | 4 | 2 | 137 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 1 | 137 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 0 | 137 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 7 | 155 | 1000/3000 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 6 | 155 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 5 | 155 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 4 | 155 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 3 | 155 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 2 | 155 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 1 | 155 | ||||
| GYFTZY-44~48Xn | 44~48 | 8 | 0 | 155 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 3 | 162 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 2 | 162 | ||||
| GYFTZY-74~84Xn | 74~84 | 7 | 1 | 162 | ||||
| GYFTZY-86~96Xn | 86~96 | 8 | 0 | 162 | ||||
| GYFTZY-98~108Xn | 98~108 | 9 | 1 | 192 | ||||
| GYFTZY-110~120Xn | 110~120 | 10 | 0 | 192 | ||||
| GYFTZY-122~132Xn | 122~132 | 11 | 1 | 228 | ||||
| GYFTZY-134~144Xn | 134~144 | 12 | 0 | 228 | ||||
| Tipo di fibra | Attenuation （+20℃） | Larghezza di banda | Apertura numerica | Fiber optic cable cut-off wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260 nm |
| G.655 | — | — | ≤0.40dB/km | ≤0,23 dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYFTZY-50~60Xn Optic Cable Product Features
●Reasonable design and control of the excess length of the optical fiber in the loose tube, so that the optical cable has excellent tensile performance and temperature performance
●The cable core is filled with grease to ensure the longitudinal water blocking effect
●The whole cable is non-metallic, free from electromagnetic interference
●The sheath is made of low-smoke, halogen-free, flame-retardant polyethylene, which can be used in entry and tunnels.

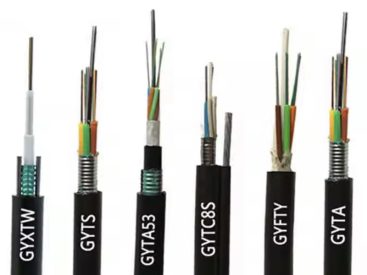

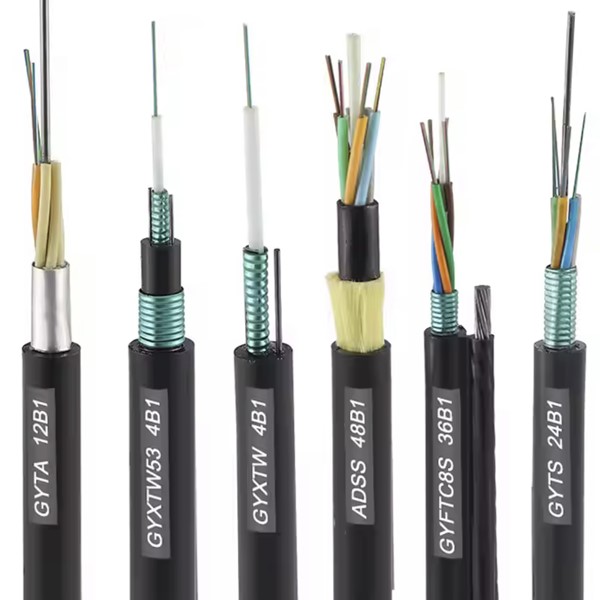

GYFTZY-50~60Xn Optic Cable Product and More Optic Cables
Loose sleeve stranded dry fibra optic cavo (DCFA)
Figure 8 Fiber Optic Cable (GYTC8A)
Central Tube light UNrmoured Fiber Optic Ribbon Cable (GYDXTW)
Central tube flame Retardant fiber optic cable (GYXTZW)
Central tube type NSU-Metallic NSU-UNrmoured fiber optic cable (GYFXY)
Central tube unarmoured fiber optic cable (GYXY)
Central Tube light UNrmoured Fiber Optic Cable (GYXS/GYXTW)
loose Sleeve Stranded light UNrmored fiber Strip cable (GYDTS)
Stranded loose jacket unarmoured fiber optic cable (GYDTA)
Stranded loose Jacket NSU-Metallic Reinforced Core NSU-UNrmoured Flame Retardant Fiber Optic Cable (GYFTZY)
loose Sleeve Stranded Reinforced core UNrmored flame Retardant optical cable(GYTZA53)
Loose sleeve stranded non–metallic reinforced nucleo armored flame retardant fibra optic cavo (GYFTZA53)
GYFTZY-50~60Xn Optic Cable Product Applications
Power system, heavy lightning and places with severe electromagnetic interference
GYFTZY-50~60Xn Optic Cable Product Structure
