Huawei SSND0SLO16 Board is 8papan antarmuka optik xSTM-16 (Saya-16, LC) for OSN3500 OSN7500 Equipment.
Huawei SSND0SLO16 Board Product Overview
Huawei SSND0SLO16 Board is an optical interface board, which can be used on the OptiX OSN7 500 / OSN3500 series equipment to realize the reception and transmission of 8 STM-16 optical signal. Through this board, Huawei SSND0SLO16 Board sends the received optical signals to the cross-side after 0 / E conversion, dan pada saat yang sama, the cross-side electrical signals are sent after E / O conversion. The SDH line board can form a ring network or a chain network with the SLD16 and SLQ16 optical boards in the system.
OSN OptiX 3500 OSN7500 intelligent optical transmission system inherits all the features of MSTP technology, and is compatible with traditional SDH and MSTP networks. Platform transmisi optik multi-layanan 10G/2.5G generasi baru (MSTP) integrating Asynchronous Serial Interface), RPR dan teknologi lainnya. It is mainly used in the backbone and convergence layer of metropolitan area networks, and is the transition from existing SDH equipment to intelligent optical network equipment. Memberikan solusi lengkap.

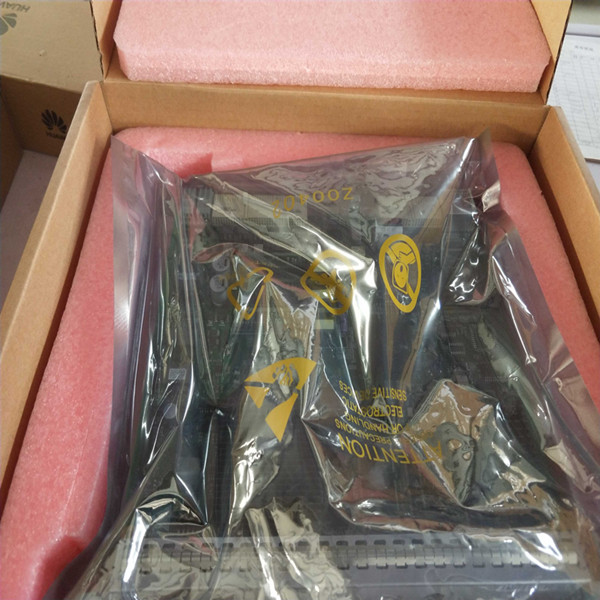

Huawei SSND0SLO16 Board Product Pictures
Huawei SSND0SLO16 Board Product Specifications
| Merek | Huawei |
| Nomor Bagian | 3052880 |
| Model | SSND0SLO16 |
| Keterangan | 8xSTM-16 Papan Antarmuka Optik(Saya-16,LC) |
| Kategori Diskon | Papan Bersama Seri OptiX OSN |
| Lini Produk | Jaringan |
| Sub Keluarga Produk | MSTP |
| Seri Produk | OSN 7500 OSN3500 |
| UOM | buah |
| Dimensi Bersih(D*W*T mm) | 262*25*265 |
| Kekuatan Khas(W) | 21 |
Huawei SSND0SLO16 Board Product Features
- Apply to HuaweiOSN 3500, OSN3500 OSN 7500 equipment to transmit and receive 4×STM-16 optical signals, at transit 2~15km.
- Supports the CWDM and DWDM colored optical interfaces.
- Supports the single-fiber bidirectional optical module
- Supports the VC-12 services, VC-3 services, VC-4 services.
- Support VC-4-4c concatenation services, VC-4-8c concatenation services, and VC-4-16c concatenation services.
- Supports the transparent transmission and termination of the path overheads.
- Supports the setting and query of the J0, J1, J2, dan C2 byte.
- Supports one to four channels of ECC communication.
- Supports the Two-fiber ring MSP.
- Supports the Four-fiber ring MSP, MSP, SNCP, SNCMP, SNCTP.
- Supports the fiber-shared virtual trail protection.
- Supports the fiber-shared MSP and processes eight sets of K bytes.
Huawei SSND0SLO16 Board Product and More Interface Board
| 3052880 | SSND0SLO1601 | 8papan antarmuka optik xSTM-16 (Saya-16, LC) |
| 3052881 | SSND0SLO1602 | 8papan antarmuka optik xSTM-16 (S-16.1, LC) |
| 3052882 | SSND0SLO1603 | 8papan antarmuka optik xSTM-16 (L-16.1, LC) |
| 3052883 | SSND0SLO1604 | 8papan antarmuka optik xSTM-16 (L-16.2, LC) |
| 3052885 | SSN3SLH41(S-1.1 & S-4.1,LC) | 8xSTM-1 & 8papan antarmuka optik xSTM-4 (S-1.1 & S-4.1, LC) |
| 3052886 | SSN3SLH41(S-1.1,LC) | 16papan antarmuka optik xSTM-1 (S-1.1, LC) |
| 3052888 | SSN3SLH41(S-4.1,LC) | 16papan antarmuka optik xSTM-4 (S-4.1, LC) |
| 3052966 | SSND0SLD6402 | 2papan antarmuka optik xSTM-64 (S-64.2b, LC) |
| 3052968 | SSND0SLQ1601 | 4papan antarmuka optik xSTM-16 (Saya-16, LC) |
| 3052969 | SSND0SLQ1602 | 4papan antarmuka optik xSTM-16 (S-16.1, LC) |
| 3052970 | SSND0SLQ1603 | 4papan antarmuka optik xSTM-16 (L-16.1, LC) |
| 3052971 | SSND0SLQ1604 | 4papan antarmuka optik xSTM-16 (L-16.2, LC) |
Huawei SSND0SLO16 Board Product Applications
