Huawei S5735S-L8T4S-A1 Switch is a standard Gigabit Ethernet switch with 8 10/100/1000Port Ethernet Base-T, 4 Gigabit SFP
Huawei S5735S-L8T4S-A1 Switch Product Overview
Huawei S5735S-L8T4S-A1 Switch is a standard Gigabit Ethernet switch with 8 10/100/1000Port Ethernet Base-T, 4 Gigabit SFP. The product is based on a new generation of high-performance hardware and Huawei’s unified VRP (Platform Perutean Serbaguna) software platform. Lebih-lebih lagi, S5735S-L8T4S-A1 outstands with enhanced three-layer features, pengoperasian dan pemeliharaan yang mudah, jaringan Ethernet yang fleksibel, dan fitur IPv6 yang matang. so It is widely used in enterprise campus access and aggregation, akses pusat data dan skenario aplikasi lainnya.
Huawei S5735S-L8T4S-A1 Switch Product Pictures
Huawei S5735S-L8T4S-A1 Switch Product Specifications
| Barang | Spesifikasi |
| Merek | Huawei |
| Model | S5735S-L8T4S-A1 |
| Pelabuhan | 8 10/100/1000Port Ethernet Base-T, 4 Gigabit SFP |
| Tinggi sasis [kamu] | 1 kamu |
| Berat tanpa kemasan [kg(pon)] | 1.38 kg (3.04 pon) |
| Berat dengan kemasan [kg(pon)] | 2.02 kg (4.45 pon) |
| Konsumsi daya tipikal [W] | 21.2 W |
| Pembuangan panas yang khas [BTU/jam] | 72.34 BTU/jam |
| Konsumsi daya maksimum [W] | 26.3 W |
| Pembuangan panas maksimum [BTU/jam] | 89.74 BTU/jam |
| MTBF [tahun] | 71.82 tahun |
| MTTR [jam] | 2 jam |
| Ketersediaan | >0.99999 |
| Kebisingan pada suhu normal (kekuatan akustik) [dB(A)] | 43 dB(A) |
| Kebisingan pada suhu normal (tekanan akustik) [dB(A)] | 31.5 dB(A) |
| Suhu penyimpanan [°C(°F)] | -40°C hingga +70 °C (-40°F hingga +158°F) |
| Kelembaban relatif pengoperasian jangka panjang [RH] | 5% ke 95%, nonkondensasi |
| Ketinggian operasi jangka panjang [M(kaki)] | 0-5000 M (0-16404 kaki) |
| Ketinggian penyimpanan [M(kaki)] | 0-5000 M (0-16404 kaki) |
| Modus catu daya | AC bawaan |
| Nilai tegangan masukan [V] | masukan AC: 100 V AC ke 240 V AC, 50/60 Hz |
| Rentang tegangan masukan [V] | masukan AC: 90 V AC ke 290 V AC, 45 Hz ke 65 Hz |
| Arus masukan maksimum [A] | 0.8 A |
| Penyimpanan | 512 MB |
| Memori kilat | 512 MB |
| Pelabuhan konsol | RJ45 |
| Perlindungan lonjakan port layanan [persegi panjang] | Mode umum: ±7 kV |
| Perlindungan lonjakan pasokan listrik [persegi panjang] | ±6 kV dalam mode diferensial, ±6 kV dalam mode umum |
| Jenis penggemar | Bawaan |
| Mode pembuangan panas | Pembuangan panas dengan kipas angin, penyesuaian kecepatan kipas yang cerdas |
| Arah aliran udara | Asupan udara dari kiri dan depan, kelelahan udara dari kanan |
Huawei S5735S-L8T4S-A1 Switch Product Features
- Support perfect Layer 2 dan Lapisan 3 protokol multicast, dan mendukung PIM SM, DM PIM, PIM SSM, MLD, dan IGMP Snooping untuk memenuhi kebutuhan pengawasan video definisi tinggi multi-terminal dan akses konferensi video.
- Support for OSPF, ISIS, BGP, VRRP and other three-layer features to meet enterprise access, aggregation service bearer requirements, and support more abundant voice, video and data applications.
- Mendukung otentikasi MAC, 802.1x otentikasi, dan otentikasi Portal, dan mewujudkan distribusi kebijakan pengguna yang dinamis (VLAN, QoS, ACL).
- Mendukung pembelajaran ketat entri ARP, yang dapat mencegah pengguna normal tidak dapat mengakses Internet karena serangan spoofing ARP.
- Support complete DoS attack defense and user attack defense. Diantara mereka, the DoS type of anti-attack mainly targets the attack of the switch itself, termasuk Banjir SYN, Tanah, Smurf, Banjir ICMP; the ro-type anti-attack involves DHCP server spoofing attack, pemalsuan IP/MAC, Banjir permintaan DHCP, changing DHCP CHADDR value, dll.. Supports direct discarding of illegal packets that do not conform to binding entries. Using the trusted port feature of DHCPSnooping can also ensure the legitimacy of the DHCP server.
Huawei S5735S-L8T4S-A1 Switch and More S5735S Series Models
Port Ethernet S5735S-L8T4S-A1 8*10/100/1000Base-T, 4 Gigabit SFP
Port S5735S-L8P4S-A1 8*10/100/1000BASE-T, 4*Port GE SFP, PoE+, listrik AC
Port S5735S-L24T4S-A1 24*10/100/1000BASE-T, 4*Port GE SFP, listrik AC
Port S5735S-L24P4S-A1 24*10/100/1000BASE-T, 4*10Port GE SFP+, PoE+, listrik AC.
S5735S-L24T4X-A1 24*10/100/1000BASE-T ports, 4*10Port GE SFP+, listrik AC.
S5735S-L24P4X-A1 24*10/100/1000BASE-T ports, 4*10Port GE SFP+, PoE+, listrik AC.
S5735S-L32ST4X-A1 24*port GE SFP, 8*10/100/1000Port BASE-T, 4*10Port GE SFP+, listrik AC, akses depan
Port S5735S-L48T4S-A1 48*10/100/1000BASE-T, 4*Port GE SFP, listrik AC
Port S5735S-L48P4S-A1 48*10/100/1000BASE-T, 4*Port GE SFP, PoE+, listrik AC
Port S5735S-L48T4X-A1 48*10/100/1000BASE-T, 4*Port GE SFP, listrik AC
Port S5735S-L48P4X-A1 48*10/100/1000BASE-T, 4*10Port GE SFP+, PoE+, listrik AC

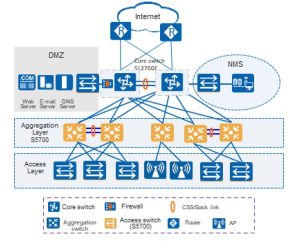

Huawei S5735S-L8T4S-A1 Switch Product Applications
