Keterangan
Huawei S2720-28TP-PWR-EI-L Switch is a next-generation access switch, which provides flexible 100M, GE access ports and GE uplink ports. it has16×Ethernet 10/100 Base-Tx ports, 8×Ethernet 10/100/1000 Port Base-T, 2×Gig SFP ports, 2×combo Gig ports, AC power supply and PoE+
Huawei S2720-28TP-PWR-EI-L Switch Product Overview
Sakelar ini menawarkan kinerja Penerusan: 20.4Mpps dan kapasitas Switching: 68Gbps. Building on next generation, high performance hardware and the Huawei Versatile Routing Platform (VRP), S2720 EI supports intelligent stack (iStack), jaringan Ethernet yang fleksibel, dan kontrol keamanan yang beragam. Lebih-lebih lagi, S2720-28TP-PWR-EI-L provides customers wi th a green, easy to manage, easy to expand, and cost effective 100M to the desktop solution.

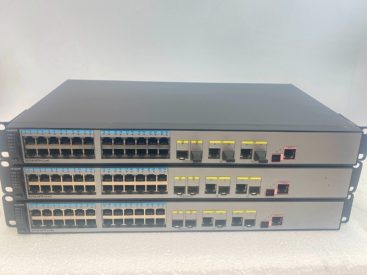

Huawei S2720-28TP-PWR-EI-L Switch Product Pictures
Huawei S2720-28TP-PWR-EI-L Switch Product Specifications
| Model Produk | S2720-12TP-EI S2720-12TP-PWR-EI |
S2720-28TP-PWR-EI-L S2720-28TP-EI S2720-28TP-PWR-EI |
S2720-52TP-EI S2720-52TP-PWR-EI |
| Kapasitas Pengalihan | 68 Gbit/dtk | 68 Gbit/dtk | 336 Gbit/dtk |
| Kinerja Penerusan | 12.6 mpps | 20.4 mpps | 34.8 mpps |
| Port Tetap | tautan bawah: 4 X 10/100 Base-TX Ethernet ports; 4 x port GE | tautan bawah: 16 X 10/100 Base-TX Ethernet ports; 8 x port GE | tautan bawah: 32 X 10/100 Base-TX Ethernet ports; 16 x port GE |
| Tautan ke atas: 4 x port GE | Tautan ke atas: 4 x port GE | Tautan ke atas: 4 x port GE | |
| Tabel Alamat MAC | 16Entri alamat MAC K Configurable aging time of MAC addresses Blackhole MAC address entries Limit on the number of MAC addresses learned on a port |
||
| Fitur VLAN | 4K VLANs Penugasan VLAN berdasarkan alamat MAC, protokol, subnet IP, kebijakan, and interfaces Port-based QinQ |
||
| Perutean IP | Perutean statis MENINGGAL DUNIA, RIPng, and OSPF |
||
| Interoperabilitas | Spanning Tree Berbasis VLAN (VBST) (bekerja sama dengan PVST, PVST+, dan RPVST) Protokol Negosiasi tipe tautan (LNP) (mirip dengan DTP) Protokol Manajemen Pusat VLAN (VCMP) (mirip dengan VTP) |
||
Huawei S2720-28TP-PWR-EI-L Switch Product Features
- A mix of 100M and 1000M ports with diverse access ports.
- Intelligent Stack (iStack) improves device reliability and scalability, while significantly reducing system Operations and Maintenance (HAI&M) costs. This allows for unified configuration and management of the entire stack system.
- Support for Routing Information Protocol (MENINGGAL DUNIA) and Open Shortest Path First (OSPF), offering leading routing performance in the 100M switch field.
Huawei S2720-28TP-PWR-EI-L Switch and More S2720-EI Models
S2720-12TP-EI
S2720-12TP-PWR-EI
S2720-28TP-EI
S2720-28TP-EI-AC
S2720-28TP-PWR-EI
S2720-28TP-PWR-EI-L
S2720-52TP-EI
S2720-52TP-PWR-EI
Huawei S2720-28TP-PWR-EI-L Switch Product Ordering Info
S2720-12TP-EI (4 × Ethernet 10/100 Base-Tx ports, 4 × Ethernet 10/100/1000 Port Base-T, 2 × Gig SFP ports, 2 ×combo Gig ports, AC 110/220V)
S2720-12TP-PWR-EI (4 × Ethernet 10/100 Base-Tx ports, 4 × Ethernet 10/100/1000 Port Base-T, 2 × Gig SFP ports, 2 ×combo Gig ports,124W PoE AC 110/220V)
S2720-28TP-PWR-EI (16 × Ethernet 10/100 Base-Tx ports, 8 × Ethernet 10/100/1000 Port Base-T, 2 × Gig SFP ports, 2 ×combo Gig ports,370W PoE AC 110/220V)
S2720-28TP-EI (16 × Ethernet 10/100 Base-Tx ports, 8 × Ethernet 10/100/1000 Port Base-T, 2 × Gig SFP ports, 2 ×combo Gig ports, AC 110/220V)
S2720-52TP-EI (32 × Ethernet 10/100 Base-Tx ports, 16 × Ethernet 10/100/1000 Port Base-T, 4 × Gig SFP ports,
AC 110/220V)
S2720-52TP-PWR-EI (32 × Ethernet 10/100 Base-Tx ports, 16 × Ethernet 10/100/1000 Port Base-T, 4 × Gig SFP ports, 370W PoE AC 110/220V)
Huawei S2720-28TP-PWR-EI-L Switch Product Applications
