Keterangan
Huawei S1720-28GWR-PWR-4X-E Switch is a next-generation energy-saving Ethernet access switch with Downlink: 24 Ethernet 10/100/1,000 pelabuhan, Tautan ke atas: 4 10 Pertunjukan SFP+, PoE+ and AC power supply
Huawei S1720-28GWR-PWR-4X-E Switch Product Overview
The switch is designed for small and medium-sized enterprises, warung internet, hotel, and schools offering Forwarding performance: 96 Mpps dan Kapasitas Switching: 168 Gbit/dtk
It is very easy to install and maintain and come with diverse service features, membantu pelanggan membangun keamanan, dapat diandalkan, jaringan berkinerja tinggi.
S1720 series web-managed and fully-managed switches provide telemetry technology to collect device data in real time and send the data to Huawei campus network analyzer CampusInsight. CampusInsight menganalisis data jaringan berdasarkan algoritma identifikasi kesalahan cerdas, secara akurat menampilkan status jaringan waktu nyata, effectively locates faults in a timely manner, dan mengidentifikasi masalah jaringan yang memengaruhi pengalaman pengguna, secara akurat menjamin pengalaman pengguna.

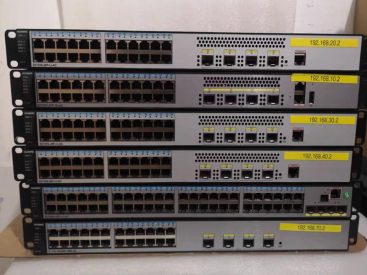

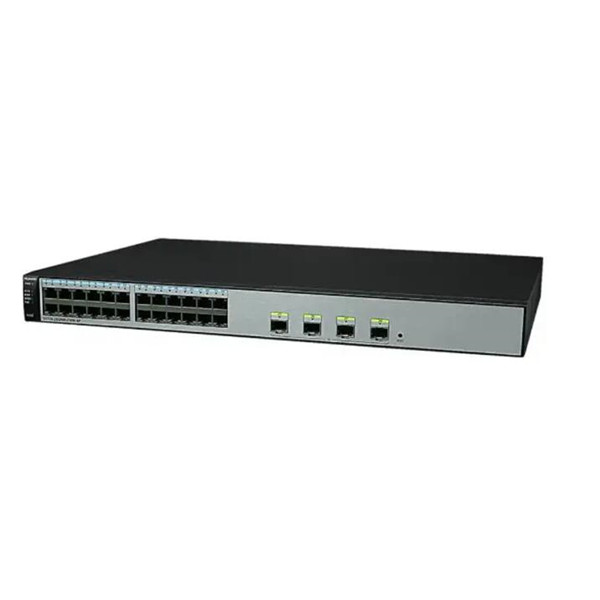

Huawei S1720-28GWR-PWR-4X-E Switch Product Pictures
Huawei S1720-28GWR-PWR-4X-E Switch Product Specifications
| model produk | S1720-10GW-2P-E S1720-10GW-PWR-2P-E |
S1720-28GWR-4P-E S1720-28GWR-PWR-4P-E S1720-28GWR-PWR-4TP-E S1720-28GWR-4X-E S1720-28GWR-PWR-4X-E S1720-52GWR-4P-E S1720-52GWR-PWR-4P-E S1720-52GWR-4X-E S1720-52GWR-PWR-4X-E |
S1720X-16XWR-E S1720X-32XWR-E |
| Device Management | SNMP Web system network management (HTTPS) DHCP client User password protection One-key restoration CLI configuration (S1720GWE, S1720GWR-E, and S1720X-XWR-E series) |
||
| Kapasitas Pengalihan | 68 Gbit/dtk | S1720-28GWR-P/TP series: 68 Gbit/dtk S1720-28GWR-X series: 168 Gbit/dtk S1720-52GWR-P series: 336 Gbit/dtk S1720-52GWR-X: 336 Gbit/dtk |
680 Gbit/dtk |
| Kinerja Penerusan | 15 anggota parlemen | S1720-28GWR-P/TP series: 42 anggota parlemen S1720-28GWR-X series: 96 anggota parlemen S1720-52GWR-P series: 78 anggota parlemen S1720-52GWR-X series: 132 anggota parlemen |
S1720X-16XWR-E: 240 anggota parlemen S1720X-32XWR-E: 252 anggota parlemen |
| Port Tetap | tautan bawah: 8 X 10/100/1,000 Base-T electrical ports Tautan ke atas: 2 X 1,000 Base-X optical ports |
S1720-28GWR-P series tautan bawah: 24 X 10/100/1,000 Base-T electrical ports Tautan ke atas: 4 X 1,000 Base-X optical ports S1720-28GWR-TP series tautan bawah: 24 X 10/100/1,000 Base-T electrical ports Tautan ke atas: 4 X 1,000 Base-X optical ports, 2 of which are 10/100/1,000 Base-T combo ports S1720-28GWR-X series tautan bawah: 24 X 10/100/1,000 Base-T electrical ports Tautan ke atas: 4 x Port optik 10G Base-X S1720-52GWR-P series tautan bawah: 48 X 10/100/1,000 Base-T electrical ports Tautan ke atas: 4 X 1,000 Base-X optical ports S1720-52GWR-X series tautan bawah: 48 X 10/100/1,000 Base-T electrical ports Tautan ke atas: 4 x Port optik 10G Base-X |
S1720X-32XWR-E: 32 x Port optik 10G Base-X Catatan: Port-port ini dapat digunakan untuk transmisi upstream dan downstream. |
| Fitur VLAN | 4K VLANs Access port Trunk port Hybrid port Management VLAN VLAN Suara |
||
| Perutean IP | IPv4 and IPv6 static routing MENINGGAL DUNIA, RIPng, and OSPF (S1720-E series) |
||
| Device Maintenance | Remote Network Monitoring (RMON) “System log Ping and traceroute Virtual Cable Test (VCT) Link Layer Discovery Protocol (LLDP) “ |
||
Huawei S1720-28GWR-PWR-4X-E Switch Product Features
- Web-managed S1700 models come with a web network management system, making it easy to configure switches.
- Fully-managed S1700 models allow for the use of an Simple Network Management Protocol (SNMP)-based Network Management System (NMS) for centralized configuration and management.
- Web-managed S1720 models come with a web network management system, making it easy to configure switches.
- S1720 series web-managed and fully-managed switches support enhanced Media Delivery Index (eMDI). The S1720 functions as a monitoring node to periodically collect and report eMDI fault data to eSight, dan kemudian eSight dengan cepat menemukan kesalahan kualitas layanan video berdasarkan hasil pemantauan beberapa node.
- S1720 series web-managed and fully-manged switches support Enhanced Media Delivery Index(eMDI). Ini berfungsi sebagai node pemantauan untuk mengumpulkan dan melaporkan data kesalahan eMDI secara berkala ke eSight, dan kemudian eSight dengan cepat menemukan kesalahan kualitas layanan video berdasarkan hasil pemantauan beberapa node. Perangkat ini juga dapat melaporkan data kesalahan eMDI ke penganalisis jaringan kampus CampusInsight untuk diagnosis cerdas layanan video.
Huawei S1720-28GWR-PWR-4X-E Switch Product and More Models
S1700-16G (16 Ethernet 10/100/1000 pelabuhan, AC 110/220V)
S1700-24-AC (24 Ethernet 10/100 pelabuhan, AC 110/220V)
S1724G-AC (24 Ethernet 10/100/1000 pelabuhan, AC 110/220V)
S1700-24GR (24 Ethernet 10/100/1000 pelabuhan, AC 110/220V)
S1700-52R-2T2P-AC (48 Ethernet 10/100 pelabuhan, 2 Ethernet 10/100/1000 pelabuhan dan 2 Pertunjukan SFP, AC 110/220V)
S1700-52GR-4X (48 Ethernet 10/100/1000 pelabuhan, 4 10 Pertunjukan SFP+, AC 110/220V)
S1720-10GW-2P (8 Ethernet 10/100/1000 pelabuhan, 2 Pertunjukan SFP, AC 110/220V)
S1720-10GW-PWR-2P (8 Ethernet 10/100/1000 Port PoE+, 2 Pertunjukan SFP, AC 110/220V)
S1720-28GWR-4P (24 Ethernet 10/100/1000 pelabuhan, 4 Pertunjukan SFP, AC 110/220V)
S1720-28GWR-4X (24 Ethernet 10/100/1000 pelabuhan, 4 10 Pertunjukan SFP+, AC 110/220V)
S1720-28GWR-PWR-4P (24 Ethernet 10/100/1000 Port PoE+, 4 Pertunjukan SFP, 370W PoE AC 110/220V)
S1720-28GWR-PWR-4X (24 Ethernet 10/100/1000 Port PoE+, 4 10 Pertunjukan SFP+, 370W PoE AC 110/220V)
S1720-52GWR-4P (48 Ethernet 10/100/1000 pelabuhan, 4 Pertunjukan SFP, AC 110/220V)
S1720-52GWR-4X (48 Ethernet 10/100/1000 pelabuhan, 4 10 Pertunjukan SFP+, AC 110/220V)
S1720-52GWR-PWR-4P (48 Ethernet 10/100/1000 Port PoE+, 4 Pertunjukan SFP, 370W PoE AC 110/220V)
S1720-52GWR-PWR-4X (48 Ethernet 10/100/1000 Port PoE+, 4 10 Pertunjukan SFP+, 370W PoE AC 110/220V)
S1720-28GWR-PWR-4TP (24 Ethernet 10/100/1000, 2 Pertunjukan SFP dan 2 tujuan ganda 10/100/1000 atau SFP, 8 port PoE+, 124W PoE AC)
Huawei S1720-28GWR-PWR-4X-E Switch Product Applications
