Keterangan
GYTA53-74~84Xn Optic Cable is a Loose sleeve layer stranded reinforced armored optical cable. It is a multi-mode optical cable, which is widely used in long-distance optical fiber communication, data center, LAN and other occasions
GYTA53-74~84Xn Optic Cable Product Overview
The structure of the GYTA53 fiber optic cable is that a 250μm optical fiber is sleeved into a loose tube made of high-modulus material, and the loose tube is filled with a waterproof compound. In the center of the core is a metal reinforcing core, and for some core cables, a layer of polyethylene (pe) is squeezed out of the metal reinforcing core. The loose tube (and filler rope) are twisted around the central reinforcing core to form a compact and rounded core, and the gaps within the core are filled with water-blocking filling. The plastic-coated aluminum strip (APL) is longitudinally wrapped and extruded with a layer of polyethylene inner sheath, and the double-sided plastic-coated steel strip (PSP) is longitudinally wrapped and extruded with polyethylene sheath to form a cable.

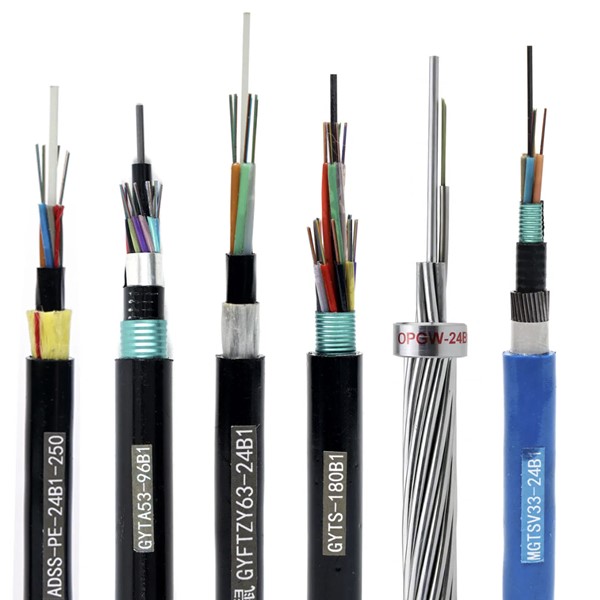

GYTA53-74~84Xn Optic Cable Product Pictures
GYTA53-74~84Xn Optic Cable Product Specifications
| Model kabel serat optik (dalam peningkatan 2-serat) | Jumlah serat | Number of casings | Number of infill ropes | Reference cable weight (kg/km） |
Kekuatan tarik diizinkan Jangka panjang/jangka pendek (N) |
Kekuatan squat yang diijinkan Jangka panjang/jangka pendek (T/100mm) |
Jari-jari tikungan Statis/Dinamis (mm) |
|
| GYTA53-2~6Xn | 2~6 | 1 | 5 | 177 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYTA53-8~12Xn | 8~12 | 2 | 4 | 177 | ||||
| GYTA53-14~18Xn | 14~18 | 3 | 3 | 177 | ||||
| GYTA53-20~24Xn | 20~24 | 4 | 2 | 177 | ||||
| GYTA53-26~30Xn | 26~30 | 5 | 1 | 177 | ||||
| GYTA53-32~36Xn | 32~36 | 6 | 0 | 177 | ||||
| GYTA53-38~48Xn | 38~48 | 4 | 1 | 194 | ||||
| GYTA53-50~60Xn | 50~60 | 5 | 0 | 194 | ||||
| GYTA53-62~72Xn | 62~72 | 6 | 0 | 204 | ||||
| GYTA53-74~84Xn | 74~84 | 7 | 1 | 239 | ||||
| GYTA53-86~96Xn | 86~96 | 8 | 0 | 239 | ||||
| GYTA53-98~108Xn | 98~108 | 9 | 1 | 275 | ||||
| GYTA53-110~120Xn | 110~120 | 10 | 0 | 275 | ||||
| GYTA53-122~132Xn | 122~132 | 11 | 1 | 312 | ||||
| GYTA53-134~144Xn | 134~144 | 12 | 0 | 312 | ||||
| GYTA53-146~216Xn | 146~216 | 13~18 | 5~0 | 312 | ||||
| Jenis serat | Atenuasi | Bandwidth | Bukaan Numerik | Fiber Optic cable cut-off wavelength | ||||
| （+20 ℃） | @850nm | @1300nm | ||||||
| @850nm | @1300nm | @1310nm | @1550nm | |||||
| G.652 | — | — | ≤0,36dB/km | ≤0,22dB/km | — | — | — | ≤1260 nm |
| G.655 | — | — | ≤0.40db/km | ≤0,23dB/km | — | — | — | ≤1450nm |
| 50/125mikron | ≤3.0dB/km | ≤1.0dB/km | — | — | ≥500mhz · km | ≥500mhz · km | 0.200± 0,015 sudah | — |
| 62.5/125mikron | ≤3.3db/km | ≤1.0dB/km | — | — | ≥200MHz · km | ≥500mhz · km | 0.275± 0,015 sudah | — |
GYTA53-74~84Xn Optic Cable Product Features
● It has very good mechanical properties and temperature characteristics
● The single thin round steel wire armor makes the optical cable have stronger tensile performance
● The loose tube material itself has good hydrolysis resistance and high strength
● The tube is filled with special ointment to protect the optical fiber
● Good compression resistance and softness
● The following measures are taken to ensure the waterproof performance of the optical cable:
– Single wire center reinforcing core
– Tabung yang longgar diisi dengan senyawa anti air khusus
– Full core filling
– Plastic-coated aluminium tape (APL) penghalang kelembaban
– Double-sided plastic-coated steel tape (PSP) meningkatkan permeabilitas kelembaban kabel serat optik
– Good water-blocking material prevents longitudinal water seepage of the fiber optic cable
GYTA53-74~84Xn Optic Cable Product Applications
- Long-distance communication, inter-office communication
- Especially suitable for occasions with high requirements for mechanical strength and rodent resistance
- saluran pipa
- Overhead
- Direct burial
