GYTA53-62~72Xn Optic Cable is Loose sleeve layer stranded reinforced armored optical cable. which is widely used in long-distance optical fiber communication, data center, LAN and other occasions
GYTA53-62~72Xn Optic Cable Product Overview
GYTA53 fiber optic cable is a multi-mode fiber optic cable, and its structure is composed of a non-metallic reinforced core in the center, two layers of high refractive index silicon core with a refractive index of 1.5, and two layers of aluminum foil shielding. The GYTA in its name stands for its structure: the non-metallic reinforcing core in the center is the abbreviation of G (Glass), the two silicon cores with a refractive index of 1.5 are the abbreviation of T (Tungsten), and the two aluminum foil shields are the abbreviation of A (Aluminum).
The central non-metallic reinforcing core of this fiber optic cable is made of glass or plastic material with high refractive index, which can effectively enhance the strength and stability of the optical signal. The silicon core is made of high-purity silicon material, which has the characteristics of low loss and low dispersion. The two-layer aluminum foil shield can reduce external interference and signal loss, and improve the transmission performance of the fiber optic cable.

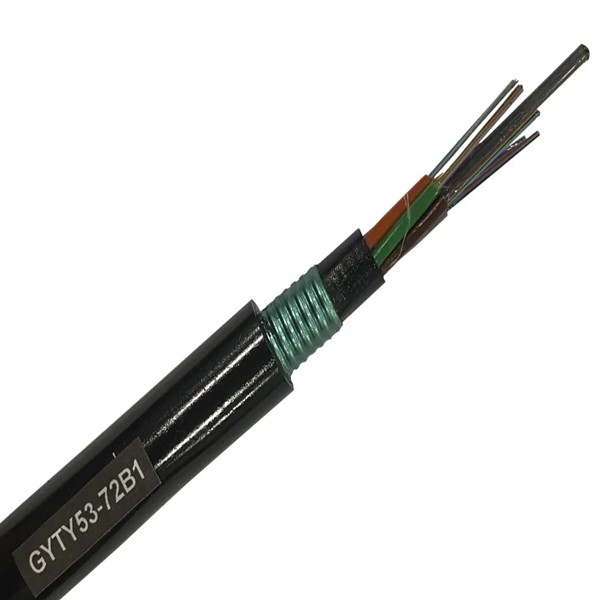

GYTA53-62~72Xn Optic Cable Product Pictures
GYTA53-62~72Xn Optic Cable Product Specifications
| Model kabel serat optik (dalam peningkatan 2-serat) | Jumlah serat | Number of casings | Number of infill ropes | Reference cable weight (kg/km） |
Kekuatan tarik diizinkan Jangka panjang/jangka pendek (N) |
Kekuatan squat yang diijinkan Jangka panjang/jangka pendek (T/100mm) |
Jari-jari tikungan Statis/Dinamis (mm) |
|
| GYTA53-2~6Xn | 2~6 | 1 | 5 | 177 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYTA53-8~12Xn | 8~12 | 2 | 4 | 177 | ||||
| GYTA53-14~18Xn | 14~18 | 3 | 3 | 177 | ||||
| GYTA53-20~24Xn | 20~24 | 4 | 2 | 177 | ||||
| GYTA53-26~30Xn | 26~30 | 5 | 1 | 177 | ||||
| GYTA53-32~36Xn | 32~36 | 6 | 0 | 177 | ||||
| GYTA53-38~48Xn | 38~48 | 4 | 1 | 194 | ||||
| GYTA53-50~60Xn | 50~60 | 5 | 0 | 194 | ||||
| GYTA53-62~72Xn | 62~72 | 6 | 0 | 204 | ||||
| GYTA53-74~84Xn | 74~84 | 7 | 1 | 239 | ||||
| GYTA53-86~96Xn | 86~96 | 8 | 0 | 239 | ||||
| GYTA53-98~108Xn | 98~108 | 9 | 1 | 275 | ||||
| GYTA53-110~120Xn | 110~120 | 10 | 0 | 275 | ||||
| GYTA53-122~132Xn | 122~132 | 11 | 1 | 312 | ||||
| GYTA53-134~144Xn | 134~144 | 12 | 0 | 312 | ||||
| GYTA53-146~216Xn | 146~216 | 13~18 | 5~0 | 312 | ||||
| Jenis serat | Atenuasi | Bandwidth | Bukaan Numerik | Fiber Optic cable cut-off wavelength | ||||
| （+20 ℃） | @850nm | @1300nm | ||||||
| @850nm | @1300nm | @1310nm | @1550nm | |||||
| G.652 | — | — | ≤0,36dB/km | ≤0,22dB/km | — | — | — | ≤1260 nm |
| G.655 | — | — | ≤0.40db/km | ≤0,23dB/km | — | — | — | ≤1450nm |
| 50/125mikron | ≤3.0dB/km | ≤1.0dB/km | — | — | ≥500mhz · km | ≥500mhz · km | 0.200± 0,015 sudah | — |
| 62.5/125mikron | ≤3.3db/km | ≤1.0dB/km | — | — | ≥200MHz · km | ≥500mhz · km | 0.275± 0,015 sudah | — |
GYTA53-62~72Xn Optic Cable Product Features
- It has very good mechanical properties and temperature characteristics
- Material loose tube sendiri memiliki ketahanan hidrolisis yang baik dan kekuatan yang tinggi
- The tube is filled with a special ointment to protect the optical fiber
- Excellent compressive performance
- Double-layer armor increases moisture resistance
- The steel wire center reinforcing core ensures the tensile strength of the optical cable
- The PE sheath has very good resistance to UV radiation
GYTA53-62~72Xn Optic Cable Product And More Optic Cables
Loose sleeve stranded light armored fiber strip cable (GYDTS)
Stranded loose jacket unarmoured fiber optic cable (GYDTA)
Stranded Loose Jacket Non-Metallic Reinforced Core Non-Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
Loose sleeve stranded reinforced core armored flame retardant optical cable(GYTZA53)
Loose sleeve stranded non-metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (BERSAMA)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53+33)
Loose Sleeve Stranded Reinforced Armoured Fiber Optic Cable(GYTA53)
Loose sleeve stranded ordinary armored fiber optic cable(GYTY53)
Loose sleeve stranded light armored fiber optic cable (GYTS)
Stranded loose jacket unarmoured fiber optic cable (GYTA)
GYTA53-62~72Xn Optic Cable Product Applications
- Long-distance communication, inter-office communication
- Especially suitable for occasions with high requirements for mechanical strength and rodent resistance
- saluran pipa
- Overhead
- Direct burial

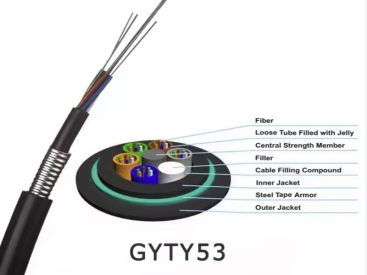

GYTA53-62~72Xn Optic Cable Product Structure
