GYFTY53 Armored Cable is Non-metallic Strength Member armored Cable complying with Standard YD/T 901-2001as well as IEC 60794-1.

GYFTY53 Armored Cable Product Overview

GYFTY53 is an Double Sheath Outdoor Fiber Optic Cable of non-metallic strength member, loose tube layer stranded filling type, with Polyethylene inner sheath, non-metallic fiber reinforcement, and LSZH outer sheath.

Tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of the core as a non-metallic strength member. Tubes and fillers are stranded around the strength member into a compact and circular cable core. Then the cable core is covered with a thin PE inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel armor is applied, the cable is completed with a PE sheath.

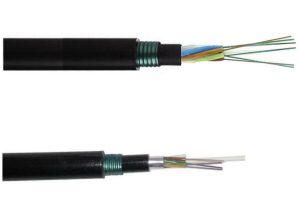

GYFTY53 Armored Cable Product Pictures

GYFTY53 Armored Cable price and specs ycict GYFTY53 Armored Cable GYFTY53 price and specs ycict

GYFTY53 Armored Cable Outdoor Optical Cable ycict GYFTY53 Armored Cable fiber optical price and specs

GYFTY53 Armored Cable Product Specifications

		G.652	G.655	50/125m	62.5/125m
Atenuasi (+20℃)	@850nm			≤3,0 dB/km	≤3,0 dB/km
	@1300nm			≤1,0 dB/km	≤1,0 dB/km
	@1310nm	≤0,36 dB/km	≤0,40 dB/km
	@1550nm	≤0,22 dB/km	≤0,23dB/km
Bandwidth (Kelas A)	@850nm			≥500MHz·km	≥200MHz·km
Bandwidth (Kelas A)	@1300nm			≥1000MHz·km	≥600MHz·km
Bukaan Numerik				0.200±0,015NA	0.275±0,015NA
Panjang Gelombang Pemutus Kabel		≤1260 nm	≤1480nm

Jenis Kabel	Jumlah Serat	Tabung	Pengisi	Diameter Kabel mm	Berat Kabel kg/km	Kekuatan Tarik Jangka Panjang/Pendek N	Ketahanan Hancur Jangka Panjang/Pendek N/100mm	Radius Lentur Statis/Dinamis
GYFTY53-2~6	2~6	1	7	15.8	230	1000/3000	1000/3000	10H/20D
GYFTY53-8~12	8~12	2	6	15.8	230	1000/3000	1000/3000	10H/20D
GYFTY53-14~18	14~18	3	5	15.8	230	1000/3000	1000/3000	10H/20D
GYFTY53-20~24	20~24	4	4	15.8	230	1000/3000	1000/3000	10H/20D
GYFTY53-26~30	26~30	5	3	15.8	230	1000/3000	1000/3000	10H/20D
GYFTY53-32~36	32~36	6	2	15.8	230	1000/3000	1000/3000	10H/20D
GYFTY53-38~42	38~42	7	1	15.8	230	1000/3000	1000/3000	10H/20D
GYFTY53-44~48	44~48	8	0	15.8	230	1000/3000	1000/3000	10H/20D
GYFTY53-50~60	50~60	5	3	16.8	255	1000/3000	1000/3000	10H/20D
GYFT Y53-62~72	62~72	6	2	16.8	255	1000/3000	1000/3000	10H/20D
GYFTY53-74~84	74~84	7	1	16.8	255	1000/3000	1000/3000	10H/20D
GYFTY53-86~96	86~96	8	0	16.8	255	1000/3000	1000/3000	10H/20D
GYFTY53-98~108	98~108	9	1	19.2	320	1000/3000	1000/3000	10H/20D
GYFTY53-110~120	110~120	10	0	19.2	320	1000/3000	1000/3000	10H/20D
GYFTY53-122~132	122~132	11	1	21.2	380	1000/3000	1000/3000	10H/20D
GYFTY53-134~144	134~144	12	0	21.2	380	1000/3000	1000/3000	10H/20D

GYFTY53 Armored Cable Product Features

Full-section water-blocking structure to ensure good water-blocking and moisture-proof performance
The loose tube is filled with special ointment for critical protection of the fiber
High modulus glass fiber reinforced plastic rod (FRP) center reinforcement member
Double-sided laminated wrinkle steel belt longitudinal package ensures the diameter moisture-proof of the optical cable and enhances the lateral pressure resistance of the optical cable
Non-metallic reinforcement components, suitable for Dore areas and strong magnetic zones
The service life of the product is more than 30 bertahun-tahun
Aplikasi: Suitable for subway, terowongan, long-distance communication and inter-office communication
Metode peletakan: direct burial in Dore area
Suhu kerja: -40~+70°C
