100G QSFP28 ZR4

Keterangan

100G QSFP28 ZR4 is designed for use in 100 Gigabit Ethernet links on up to 80km of single mode fiber, complying with the IEEE 802.3ba CAUI-4 Interface and RoHS approved.

100G QSFP28 ZR4 Product Overview

The module is designed to support 100G Ethernet and OTN OTU4, suitable for data center and telecom links up to 80km (dengan FEC, BER=10-5) over single mode fiber. The 100G QSFP28 ZR4 modules operate at four LWDM (short for LAN-WDM) wavelengths of 1295.56nm, 1300.05nm, 1304.58nm dan 1309,14nm.
Lebih-lebih lagi, QSFP28 is small in size and low in power consumption. It can provide a point-to-point solution in the data center without deploying the old version of the CFP / CFP2 interface and can operate on a point-to-point link up to 80km without optical amplification and dispersion compensation. This is a true plug-and-play solution.

100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, jaringan komputasi berkinerja tinggi, inti perusahaan dan lapisan distribusi, dan aplikasi penyedia layanan. Modul QSFP-100G adalah solusi modul transceiver 100G generasi terbaru kami berdasarkan faktor bentuk QSFP.

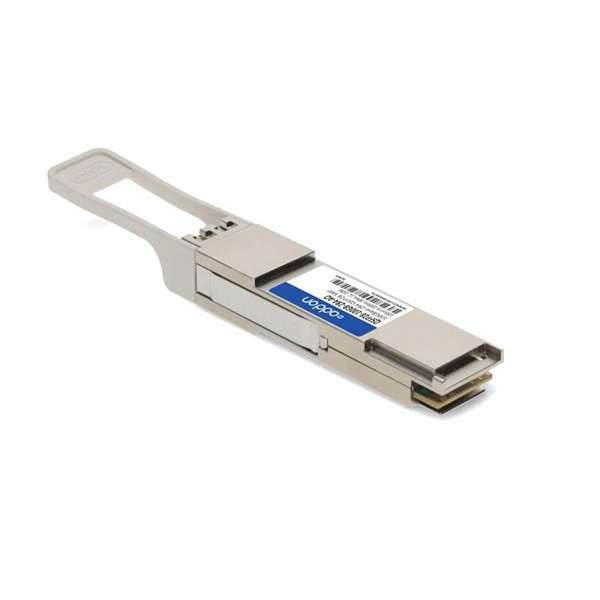

100G QSFP28 ZR4 Product Pictures

100G QSFP28 ZR4 Product Specifications

100G QSFP28 ZR4 Product Features

• Sesuai RoHS
• Duplex LC receptacles
• Aligned with 100G ZR4
• Disipasi daya <6.0W
• Catu daya 3.3V tunggal
• Antarmuka manajemen I2C
• 4x25G EML LAN-WDM transmitter
• Hot-pluggable QSFP28 MSA form factor
• Mendukung 103.125 Gb/s aggregate bit rate
• Kisaran suhu kotak komersial 0°C hingga 70°C
• Maximum link length of 80km on Single Mode Fiber (SMF)
• 4x25G NRZ retimed CAUI-4 electrical interface

100G QSFP28 ZR4 and More 100G SFP Modules

100G QSFP28 Product Applications
