Նկարագրություն
Huawei MA5626-16 EPON is is a box-type device configurable with a GPON uplink ports and up to 16 downstream ports for broadband, voip, pots, and Internet access services.
Huawei MA5626-16 EPON Product Overview
The product is an industry-leading remote multi dwelling unit (MDU), which is used on a passive optical network (PON) and provides wireless fidelity (Wi-Fi) coverage in Fiber To The Building (FTTB) hotspots and supplies power for access points (ԱԵԱ-ներ) or video cameras used for safety city construction. MA5626 PoE is a box type device measuring 1-U high and 19-inch wide, providing two GPON or GE network ports and four GE and FE (total eight) LAN user ports, and supplying power for terminals by using category-5 cables. Ի հավելումն, MA5626 PoE features easy installation and maintenance, high power output, բարձր թողունակություն, integration, mute design, and high stability.

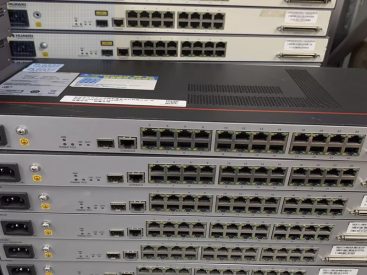

Huawei MA5626-16 EPON Product Pictures
Huawei MA5626-16 EPON Product Specifications
| Չափերը (H×W×D) | 43.6mm×442mm×220mm |
| Network-side port | The MA5626 PoE provides two uplink ports that use the SFP optical modules and automatically adapt to GPON and GE modes. The two uplink ports can be configured as follows: •• 2×GPON •• 2×GE (օպտիկական) •• 1×GE (օպտիկական) + 1×GPON |
| User-side port | 4×GE (էլեկտրական) +4×FE (էլեկտրական) |
| Գործող ջերմաստիճանը | -40oC to 55oC; startup at -25oC |
| Խոնավություն | 5% դեպի 95% (ոչ խտացնող) |
| Ջերմության արտանետման ռեժիմ | No fans; passive cooling |
| Էլեկտրամատակարարում | AC: 220Վ |
| PoE էլեկտրամատակարարում | 30Վ (802.3at) and 15W (802.3af) |
| Lightning protection capability | 6կՎ |
| Քաշը | 3.5կգ |
Huawei MA5626-16 EPON Product Features
- Four GE ports can be connected to 802.11n APs with a maximum data rate of 600 Մբիթ/վրկ.
- Easy installation: integrated PoE equipment and alternating current (AC) power input.
- Support for high-power equipment: Any port on the MA5626 PoE
- can connect to either 30 Վ (802.3ա) կամ 15 Վ (802.3af) տերմինալներ.
- Automatic adaptation to GE and GPON modes: The two uplink ports using the small form-factor pluggable (SFP) optical modules can automatically adapt to GE and GPON modes, meeting different networking requirements.
Huawei MA5626-16 EPON And More Models
MA5626-8 GPON is available in desktop and standard models
MA5626-8 EPON
MA5626-16 GPON
MA5626-16 EPON
MA5626-24 GPON
MA5626-24 EPON
MA5620-8 GPON with voice interface
MA5620-8 EPON with a voice interface
MA5620-16 GPON with voice interface
MA5620-16 EPON with voice interface
MA5620-24 GPON with a voice interface
MA5620-24 EPON with a voice interface

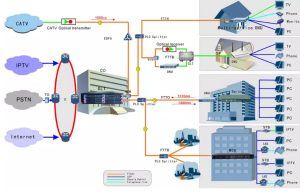

Huawei MA5626-16 EPON Product Applications
