Նկարագրություն
GYDXTS-132~144Xn-12 Optic cable is Center Tube Sheathed Fiber Optic Cable with Anti-Rodent
GYDXTS-132~144Xn-12 Optic cable Product Overview
The structure of GYDXTS optical cable is to insert multiple optical fiber strips into a loose tube made of high-modulus polyester material, and the sleeve is filled with waterproof compound. The loose tube is covered with water-blocking material to ensure the longitudinal water seepage of the optical cable, and the steel wire is wrapped into a double-sided chrome-plated plastic-coated steel tape (PSP) longitudinal wrap after the cable, and then the polyethylene sheath is extruded outside.

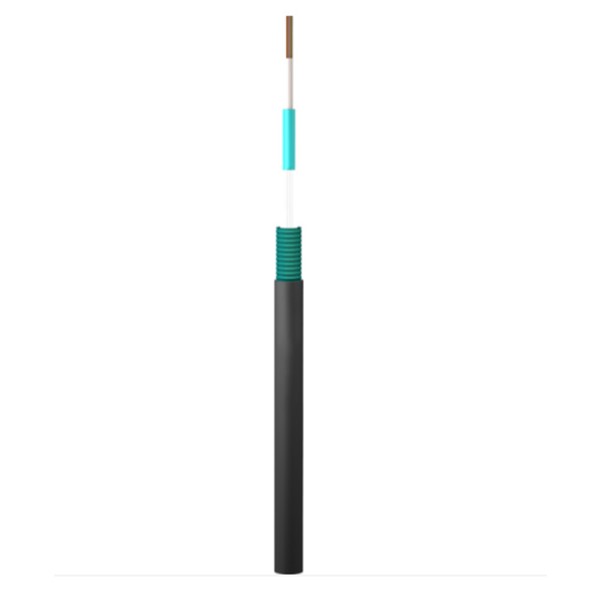

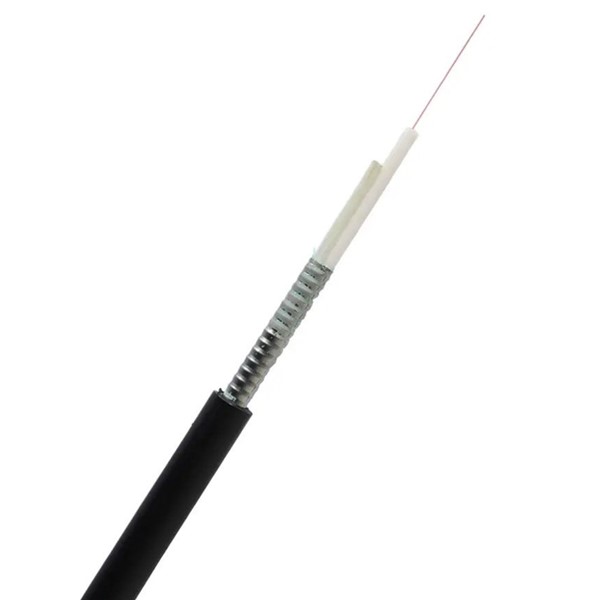

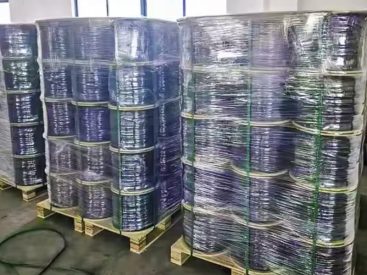

GYDXTS-132~144Xn-12 Optic cable Product Pictures
GYDXTS-132~144Xn-12 Optic cable Product Specifications
| Fiber Optic Cable Model (in 2-fiber increments) | Number of fibers | Reference cable weight（kg/km) | Tensile force allowed Long-term/short-term (Ն) |
Allowable squashing force Long-term/short-term (N/100 մմ) |
Bend radius Static/Dynamic (մմ) |
|||
| GYDXTS-36~48Xn-12F | 36~ 48 | 206 | 1000/3000 | 1000/3000 | 10D/20D | |||
| GYDXTS-60~72Xn-12F | 60~ 72 | 219 | ||||||
| GYDXTS-84~96Xn-12F | 84~ 96 | 285 | ||||||
| GYDXTS-108~120Xn-12 | 108~ 120 | 331 | ||||||
| GYDXTS-132~144Xn-12 | 132~ 144 | 360 | ||||||
| Մանրաթելերի տեսակը | attenuation | թողունակություն | Թվային բացվածք | Fiber optic cable cut-off wavelength | ||||
| （+20℃） | ||||||||
| @850 նմ | @1300 նմ | @1310 նմ | @1550 նմ | @850 նմ | @1300 նմ | |||
| Գ.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260 նմ |
| Գ.655 | — | — | ≤0.40dB/km | ≤0,23 դԲ/կմ | — | — | — | ≤1450nm |
| 50/125մկմ | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0,015NA | — |
| 62.5/125մկմ | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0,015NA | — |
GYDXTS-132~144Xn-12 Optic cable Product Features
• Small diameter, easy to lay
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special paste to protect the optical fiber
• Good resistance to lateral pressure and softness
• A layer of wrapped steel wire ensures the tensile strength of the optical cable and has good anti-rodent performance
• Double-sided chrome-plated plastic-coated steel tape (PSP) improves the moisture permeability of fiber optic cables
• Good water-blocking material to prevent longitudinal water seepage of the fiber optic cable
• Polyethylene (PE) sheath has very good resistance to UV radiation
• Precisely controlled fiber residual length ensures good mechanical and temperature performance of the fiber optic cable

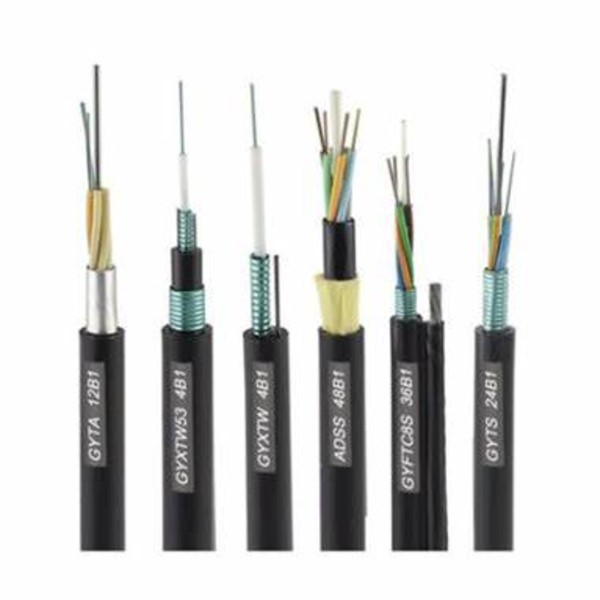

GYDXTS-132~144Xn-12 Optic cable and More Optic Cables
Hybrid Cable for Access Networks (GDTA)
Skeleton Fiber Optic Ribbon A-Sheathed Fiber Optic Cable (GYDGA)
Center Tube Y-sheathed Anti-Rodent Fiber Optic Cable (GYXTY)
Center Tube Sheathed Fiber Optic Cable with Anti-Rodent (GYDXTS)
In-Tube Sheathed Anti-Rodent Fiber Optic Cable (GYXTS)
Centro 53 Sheathed Anti-Rodent Cable(GYXTY53)
Loose tube type single thin round steel wire armored optical cable(GYXTA33)
Fiber Bundle Center Tube Sheathed Anti-Rodent Fiber Optic Cable (GYSXTS)
Fiber Bundle Air Blowing Micro Cable (GYCFSY)
Non-metallic central tube lightning and rodent protection optical cable(GYQFXTY)
Non-metallic central tube 73 sheathed lightweight lightning and rodent fiber optic cable (GYQFXTY73)
Flame retardant fiber optic cable for central tube coal mine (MGXTW)
Flame retardant optical cable for loose sleeve stranded coal mine (MGTS)
Stranded Non-Metallic Airblowing Fiber Optic Cable (ՋԵՏ)
Miniature Non-Metallic Airblown Fiber Optic Cable (ՋԵՏ)
All-dielectric self-supporting cable (ADSS)
Fire Resistant Fiber Optic Cable (GJFZY53-FR)
Loose sleeve stranded dry fiber optic cable (DCFA)
GYDXTS-132~144Xn-12 Optic cable Product Applications
1. Communication network: GYXTS central bundle tube optical cable is one of the commonly used transmission media in communication network, which can be used in fiber to the home, local area network, metropolitan area network and other fields.
2. Intelligent transportation: In the field of intelligent transportation, a large amount of data and signals need to be transmitted, and GYXTS central bundle tube optical cable can provide high-speed and stable data transmission services.
3. Power industry: The power industry needs to transmit a large amount of power data and signals, and GYXTS central tube fiber optic cable can provide safe and reliable data transmission services.
4. Radio and television: The radio and television field needs to transmit a large number of audio and video signals, and GYXTS central tube fiber optic cable can provide high-quality and stable signal transmission services.

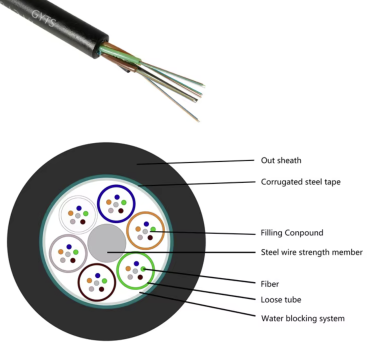

GYDXTS-132~144Xn-12 Optic cable Product Structure
