Huawei SSN1EAS2 Board is Two 10G Ethernet switching processing boards (10GBASE-LR / LW, 1310-LC)

Huawei SSN1EAS2 Board Product Overview

Huawei SSN1EAS2 Board is two 10G Ethernet switching boards for OSN3500 OSN7500.It handles two 10GE services and uses the panel to go directly. Support 10GE Ethernet service access capabilities, LCAS and test frames and other functions and features.

Interfész típusa: 10GBASE-LR, 10GBASE-LW Ethernet optical interface, meeting IEEE 802.3ae standard.

Huawei SSN1EAS2 Board supports 10GE full-duplex WAN and 10GE full-duplex LAN andalso auto-negotiation port flow control, port status query / konfigurációt, interface type query. SSN1EAS2: supports XFP pluggable optical modules. SSN3EAS2: supports SFP + pluggable optical modules. SSN3EAS2 supports single-fiber bidirectional optical modules. Támogatás 4094 VLAN tags, VLAN technology meets IEEE 802.1q / p standard.

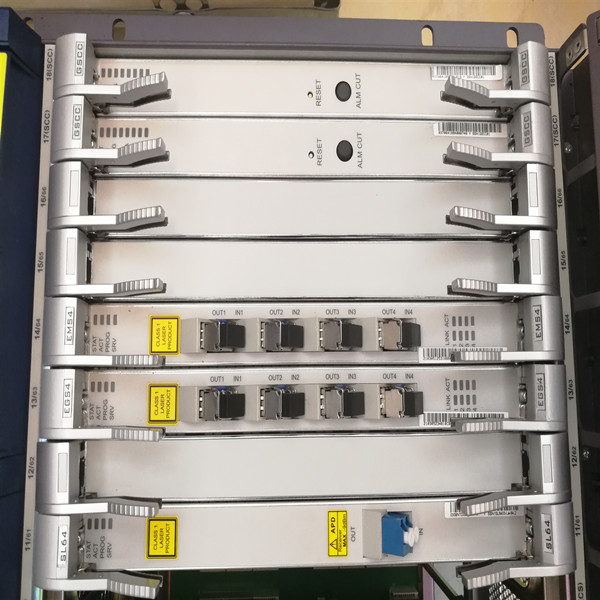

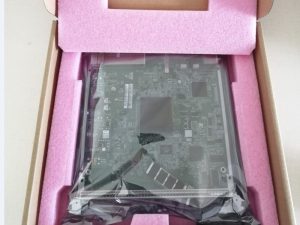

Huawei SSN1EAS2 Board Product Pictures

Huawei SSN1EAS2 Board YCICT HUAWEI SSN1EAS PRICE AND SPECS FOR OSN Huawei SSN1EAS2 Board YCICT SSN1EAS2 PRICE AND SPECS OSN3500 OSN7500

Huawei SSN1EAS2 Board YCICT HUAWEI EAS2 PRICE AND SPECS NEW AND ORIGINALHuawei SSN1EAS2 Board YCICT SSN1EAS2 PRICE AND SPECS FOR OSN 3500 OSNN7500

Huawei SSN1EAS2 Board Product Specifications

Márka Huawei
Modell SSN1EAS2
Cikkszám 3051791
Modell SSN1EAS2(10GBASE-LR/LW,1310-LC)
Leírás 2-kikötő 10 Gigabit Ethernet Switching Processing Board(10GBASE-LR/LW,1310-LC)
Kedvezmény kategória OptiX OSN sorozatú megosztott tábla
Termékcsalád Hálózatépítés
Altermékcsalád MSTP
Termék sorozat OSN 7500
UOM PCS
Nettó dimenzió(M*Sz*M mm) 220*25*262
Tipikus teljesítmény(W) 70
típus N1 N3
ERPS function Nem támogatott Támogatott
One-fiber bidirectional optical modules Nem támogatott Támogatott
Csatlakoztatható optikai modul XFP optical module SFP+ optical module
Ethernet virtual private line (EVPL) szolgáltatás Supports a maximum of 2048 link Supports a maximum of 4096
Bound bandwidth 64xVC-4 or 192xVC-3 128xVC-4
MPLS technology Nem támogatott Támogatott
Maximum uplink bandwidth Supports a maximum of 10 Gbit/s Supports a maximum of 20 Gbit/s
MSTP Nem támogatott Támogatott
ERPS Nem támogatott Támogatott

Huawei SSN1EAS2 Board Product Features

  • EVPL Service
    Supports EVPL business sharing PORT.
    Support the EVPL service of sharing VCTRUNK.
    It supports a maximum of 2048 LINK services, and SSN3EAS2 supports a maximum of 4096 LINK services.
  • EPLAN Service
    SSN1EAS2: The maximum number of VBs supported is one, and the maximum number of logical ports per VB is 26.
    SSN3EAS2: The maximum number of supported VBs is 1, and each VB logical port has a maximum of 19 (slot bandwidth 10Gbit / s) vagy 36 (slot bandwidth 20Gbit / s).
    Support to query the actual learned MAC address by VB + VLAN or VB + LP.
    Support EPLAN service based on IEEE 802.1d MAC bridge.
  • Maximum bonding bandwidth
    SSN1EAS2: 64xVC-4 or 192xVC-3
    SSN3EAS2: 128xVC-4
    The Huawei EAS2 board needs to be inserted into the corresponding slot of the Huawei OSN3500 subrack as required, otherwise the board will not work properly.
    The SSN1EAS2 board can be inserted into slot 5 to slot 8, rés 11 to slot 14 of the OSN3500 subrack, and the bandwidth is 10 Gbit / s. The SSN3EAS2 board can be inserted into slot 5 ~ slot 6, rés 13 ~ slot 14, and bandwidth 10Gbit / s; rés 7 ~ slot 8, rés 11 ~ slot 12, bandwidth 20Gbit / s.

Huawei SSN1EAS2 Board Product Applications

Huawei SSN1EAS2 Board YCICT SSN1EAS2 PRICE AND SPECS NEW
