Leírás
Huawei S5732-H48XUM2CC Switch is optical hybrid Ethernet switch with 24*10 Gigabit SFP+, 24 100M/1/2.5/5/10GE Base-T Ethernet ports, 4 1/10/25GE SFP28, 2 x 40GE QSFP+ or 2 x 100GE QSFP28, 1 bővítőnyílás, PoE++ , és 1+1 tápegység
Huawei S5732-H48XUM2CC Switch Product Overview
It is a new generation of Ethernet switches launched by Huawei for the Wi-Fi 6 era, based on Huawei’s unified VRP (Versatile Routing Platform) software platform. The switch is equipped with high-performance all-programmable chips, including board-mounted AC, service companion, VxLAN, iPCA. With a wide range of features including SVF, ECA, and threat trapping, S5732-H48XUM2CC builds high-quality campus bearer networks in the Wi-Fi 6 era. Based on the board-mounted AC, 1K APs can be managed to achieve deep integration of wired and wireless networks. Based on the service accompanying feature, the switch provides users with a consistent service experience across the network. Based on VXLAN, network virtualization is realized, which realizes “one network for multiple purposes” in campus networks and saves network construction costs. Ugyanabban az időben, based on the built-in security probe, it can realize abnormal traffic detection, encrypted traffic threat analysis, and exclusive threat trapping, stb., to escort campus networks and user services. Továbbá, S5732-H series optoelectronic hybrid switches provide optoelectronic independent operation and photoelectric co-operation mode, which are suitable for medium and large campus network aggregation, small and micro data center access, and long-distance access scenarios.

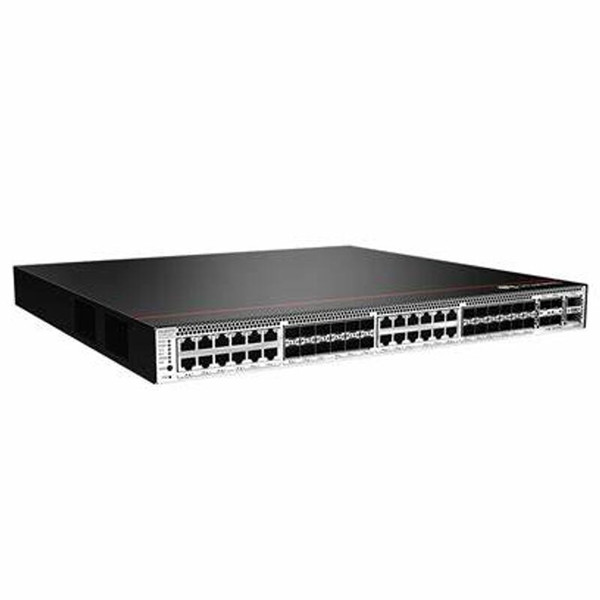

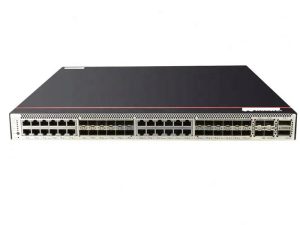

Huawei S5732-H48XUM2CC Switch Product Pictures
Huawei S5732-H48XUM2CC Switch Product Specifications
| Cikkszám | 02353MLH 02353MLH-001 |
| Modell | S5732-H48XUM2CC |
| Továbbítási teljesítmény | 490Mps |
| Switching Capacity2 | 1.76 Tbps/2.4 Tbps |
| Fix portok | 24 x 10GE SFP+, 24 × 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25GE SFP28 + 2 x 40GE QSFP+ or 2 x 100GE QSFP28 |
| PoE++ | Támogatott |
| Kiterjesztett Slots | One extended slot, támogatás 2 x 25GE SFP28 or 8 x 10GE SFP+, 8 x 25GE SFP28 cards |
| Tárolási hőmérséklet | -40°C-tól +70 °C-ig (-40°F és +158 °F között) |
| Zaj normál hőmérsékleten (27°C, hangerő) | < 63.1 dB(A) |
| Relatív páratartalom | 5% nak nek 95%, nem kondenzáló |
| Üzemi magasság | 0-5000 m (0-16404 ft.) |
| Tanúsítvány | EMC tanúsítás Biztonsági tanúsítvány Gyártási tanúsítás |
| Wireless Services | Management of up to 1024 AP |
| AP access control, AP domain management, and AP configuration template management | |
| Radio channel management, unified static configuration, and dynamic centralized management | |
| WLAN basic services, QoS, security, and user management | |
| CAPWAP, tag/terminal location, and spectrum analysis | |
| iPCA | Valós idejű statisztikák gyűjtése az elveszett csomagok számáról és a csomagvesztési arányról hálózati és eszközszinten |
| Super Virtual Fabric (SVF) | Functions as the parent node to virtualize downstream switches and APs vertically as one device for simpler management |
| Supports a two-layer client architecture | |
| Supports third-party devices between SVF parent and clients | |
| VXLAN | VXLAN L2 és L3 átjárók |
| Központosított és elosztott átjárók | |
| BGP-EVPN | |
| NETCONF protokollon keresztül konfigurálva | |
| Interoperabilitás | VBST (kompatibilis a PVST/PVST+/RPVST-vel) |
| LNP (hasonló a DTP-hez) | |
| VCMP (hasonló a VTP-hez) |
Huawei S5732-H48XUM2CC Switch Product Features
- Support SVF super virtual switching network function, as a parent switch, so that the original “small core/aggregation + access switch + AP” network architecture, virtualized into one device for management, simplify network management.
- Support SmartLink and VRRP functions, and connects to multiple aggregation switches through multiple links, and SmartLink/VRRP realizes uplink backup, greatly improving the reliability of access-side devices.
- Support connecting different VPN users and routing multiple instances to achieve isolation of different users. The upstream is connected through a common physical interface PE devices, reducing the investment of individual VPN users in network deployment.
- Support 802.1x authentication, MAC authentication, portal authentication, and hybrid authentication, implements dynamic delivery of user policies such as VLAN, QoS, és ACL, and supports group management of users.
Huawei S5732-H48XUM2CC Switch and More Models
CloudEngine S5732-H24S6Q
CloudEngine S5732-H24UM2CC
CloudEngine S5732-H48S6Q
CloudEngine S5732-H48UM2CC
CloudEngine S5732-H48XUM2CC
Huawei S5732-H48XUM2CC Switch Ordering Info
