SKU: Huawei S5720-50X-EI-AC Switch Kategória: Címkék: ,

Leírás

Huawei S5720-50X-EI-AC Switch is an Enhanced Gigabit Switch with 46 Ethernet 10/100/1000 portok, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports and AC or DC power supply, supporting RPS, power socket on the front panel

Huawei S5720-50X-EI-AC Switch Product Overview

The switch offers flexible all-gigabit access and enhanced 10GE uplink port scalability. It can be widely used as access/aggregation switches in enterprise campus networks or gigabit access switches in data centers. Továbbá, S5720-EI supports the multi-VPN-instance CE (MCE) funkció, which allows users in different VPNs to connect. The switch supports large multi-instance routing tables to isolate users in different VPNs. Users in multiple VPNs connect to a provider edge (PE) device through the same physical port on the switch, which reduces the cost on VPN network deployment. The S5720-EI supports Multiprotocol Label Switching (MPLS) L3VPN, MPLS L2VPN (VPWS\VPLS), MPLS-TE, and MPLS QoS. It is one of a few cost-effective MPLS-capable fixed switches

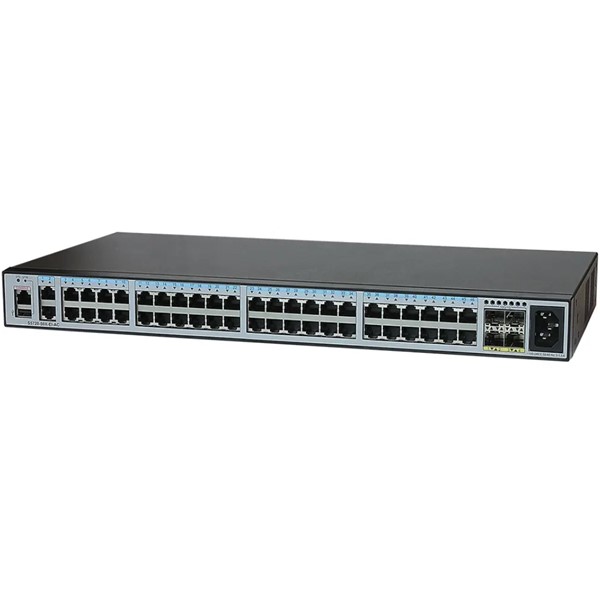

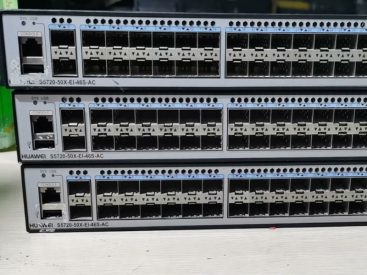

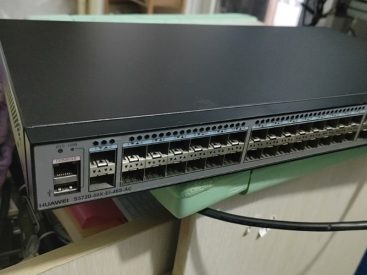

Huawei S5720-50X-EI-AC Switch Product Pictures

Huawei S5720-50X-EI-ACHuawei S5720-50X-EI-AC price

Huawei S5720-50X-EI-AC price and specsHuawei S5720-32X-EI-24S-DC

Huawei S5720-50X-EI-AC Switch Product Specifications

Tétel Leírás
Modell S5720-50X-EI-AC
Cikkszám 2359592
Kikötő 46 Ethernet 10/100/1000 portok, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports
memória (RAM) 2 GB
Vaku 512 MB in total. To view the available flash memory size, run the display version command.
Meghibásodások közötti átlagidő (MTBF) 74.31 évek
Átlagos javítási idő (MTTR) 2 órák
Elérhetőség > 0.99999
Szerviz port túlfeszültség védelem Közös mód: ±6 kV
Tápfeszültség túlfeszültség elleni védelem ±6 kV differenciál üzemmódban, ±6 kV közös üzemmódban
Súly (csomagolással) 4.9 kg (10.81 lb)
Stack portok Two fixed QSFP+ stack ports on the rear card
RTC Támogatott
RPS Támogatott
PoE Nem támogatott
Névleges feszültség tartomány 100 V AC to 240 V AC, 50/60 Hz
Maximális feszültségtartomány 90 V AC to 264 V AC, 47 Hz-ig 63 Hz
Maximális energiafogyasztás (100% áteresztőképesség, a rajongók teljes sebessége) 55.3 W
Üzemi hőmérséklet 0°C-tól 45 °C-ig (32°F és 113 °F között) magasságban 0-1800 m (0-5906 ft.)
Tárolási hőmérséklet -40°C-tól +70 °C-ig (-40°F és +158 °F között)
Zaj normál hőmérsékleten (27°C, hangerő) < 49.3 dB(A)
Relatív páratartalom 5% nak nek 95%, nem kondenzáló
Üzemi magasság 0-5000 m (0-16404 ft.)
Tanúsítvány EMC tanúsítás
Biztonsági tanúsítvány
Gyártási tanúsítás
Méretek (H x Szé x Mé) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.9 mm (1.72 ban ben. x 17.4 ban ben. x 8.85 ban ben.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 229.9 mm (1.72 ban ben. x 17.4 ban ben. x 9.05 ban ben.)

Huawei S5720-50X-EI-AC Switch Prodct Features

  • S5720-EI provides a series of mechanisms to defend against DoS and user-targeted attacks. A DoS támadások a kapcsolókra irányulnak, és magukban foglalják a SYN elárasztást is, Föld, törp, és ICMP árvízi támadások. A felhasználó által célzott támadások közé tartoznak a hamis DHCP-kiszolgáló támadások, IP/MAC cím hamisítás, DHCP kérés áradat, and change of the DHCP CHADDR value.
  • S5720-EI sets up and maintains a DHCP snooping binding table, and discards the packets that do not match the table entries. You can specify DHCP snooping trusted and untrusted ports to ensure that users connect only to the authorized DHCP server.
  • S5720-EI is equipped with two removable power modules that can work in 1+1 redundancy backup mode. Mixed installation of AC and DC power modules is supported, allowing for flexible configuration of AC or DC power modules according to service requirements. The S5720-EI provides two removable fan modules. The fan speed can be adjusted according to working temperatures of the device, improving device reliability.

Huawei S5720-50X-EI-AC Switch and More S5720-EI Models

S5720-32P-EI-AC 24 Ethernet 10/100/1000 portok, 4 100/1000 SFP, 4 Gig SFP, 2 QSFP+ dedicated stack ports AC power supply
S5720-32X-EI-AC 24 Ethernet 10/100/1000 portok, 4 100/1000 SFP, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-32X-EI-24S-AC 24 Gig SFP, 4 Ethernet 10/100/1000 portok, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-32X-EI-24S-DC 24 Gig SFP, 4 Ethernet 10/100/1000 portok, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-36C-EI-28S-AC 28 Gig SFP, 4 amelyek közül kettős célú 10/100/1000, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies
S5720-36C-EI-28S-DC 28 Gig SFP, 4 amelyek közül kettős célú 10/100/1000, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies
S5720-36C-EI-AC 28 Ethernet 10/100/1000 portok, 4 amelyek közül kettős célú 10/100/1000 vagy SFP, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC power module equipped by default
S5720-36C-PWR-EI-AC 28 Ethernet 10/100/1000 PoE+ portok, 4 amelyek közül kettős célú 10/100/1000 vagy SFP, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC power module equipped by default
S5720-36PC-EI-AC 28 Ethernet 10/100/1000 portok, 4 amelyek közül kettős célú 10/100/1000 vagy SFP, 4 Gig SFP Double hot swappable AC or DC power supplies, one AC power module equipped by default
S5720-50X-EI-AC 46 Ethernet 10/100/1000 portok, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-50X-EI-DC 46 Ethernet 10/100/1000 portok, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-50X-EI-46S-AC 46 Gig SFP, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-50X-EI-46S-DC 46 Gig SFP, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-52X-EI-AC 48 Ethernet 10/100/1000 portok, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC power supply
S5720-52P-EI-AC 48 Ethernet 10/100/1000 portok, 4 Gig SFP, 2 QSFP+ dedicated stack ports AC power supply
S5720-56C-EI-48S-AC 48 Gig SFP, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-EI-48S-DC 48 Gig SFP, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-EI-AC 48 Ethernet 10/100/1000 portok, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-EI-DC 48 Ethernet 10/100/1000 portok, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-PWR-EI-AC 48 Ethernet 10/100/1000 PoE+ portok, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-PWR-EI-AC1 48 Ethernet 10/100/1000 PoE+ portok, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-PWR-EI-DC 48 Ethernet 10/100/1000 PoE+ portok, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56PC-EI-AC 48 Ethernet 10/100/1000 portok, 4 Gig SFP Double hot swappable AC or DC power supplies, one AC power module equipped by default

Huawei S5720-50X-EI-AC Switch Product Applications
