Leírás
Huawei S1720-52GWR-PWR-4X Switch is a next-generation energy-saving Ethernet access switch with Downlink 48 Ethernet 10/100/1,000 portok, Uplink 4 10 Gig SFP+, PoE+ and AC power supply
Huawei S1720-52GWR-PWR-4X Switch Product Overview
A kapcsoló továbbítási teljesítményt biztosít: 132 Mpps és kapcsolási kapacitás: 336 Gbit/s. It is designed for small and medium-sized enterprises, Internet kávézók, szállodák, és iskolák. Huawei S1720-52GWR-PWR-4X offers rich services, segítve az ügyfeleket a biztonságos építkezésben, megbízható, és nagy teljesítményű hálózatok.
Depending on management types, S1700 series switches are classified into unmanaged switches, web-managed switches, and fully-managed switches.
• Unmanaged switches are plug-and-play and do not require installation of any software. They have no configuration options and do not need subsequent management.
• Web-managed switches can be managed and maintained through the web browser. They are easy to operate and have user-friendly Graphic User Interfaces (GUIs).
• Fully-managed switches support various management and maintenance methods, such as web, SNMP, command line interface (supported by S1720GW-E, S1720GWR-E, and S1720X-E). They have user-friendly GUIs.

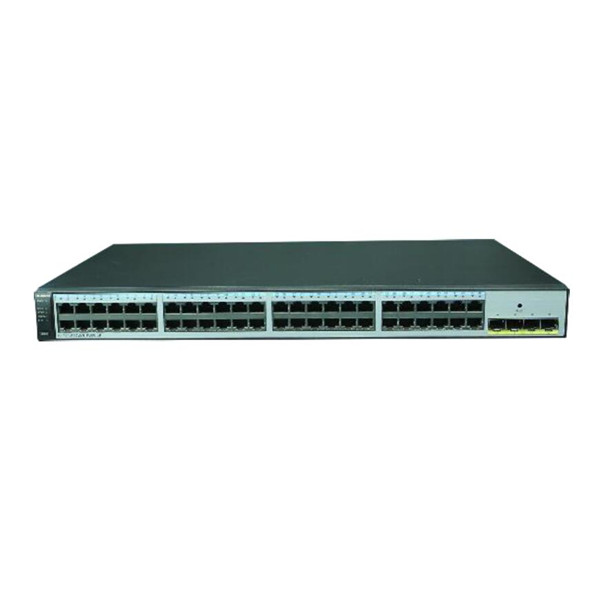

Huawei S1720-52GWR-PWR-4X Switch Product Pictures
Huawei S1720-52GWR-PWR-4X Switch Product Specifications
| termékmodell | S1720-10GW-2P S1720-10GW-PWR-2P |
S1720-52GWR-4P S1720-52GWR-PWR-4P S1720-52GWR-4X S1720-52GWR-PWR-4X |
| Eszköz kezelés | Webrendszer hálózatkezelés DHCP kliens Egykulcsos restaurálás jegyzet: Licenc megvásárlásával frissítheti a web által kezelt S1720 modellt web/SNMP-menedzselt modellre |
|
| Kapcsolási kapacitás | 68 Gbit/s | 336 Gbit/s |
| Továbbítási teljesítmény | 15 Mps | S1720-52GWR-P series: 78 Mps S1720-52GWR-X series: 132 Mps |
| Fix portok | Lefelé irányuló kapcsolat: 8 x 10/100/1,000 Base-T elektromos csatlakozók Uplink: 2 x 1,000 Base-X optikai portok |
S1720-52GWR-P series Lefelé irányuló kapcsolat: 48 x 10/100/1,000 Base-T elektromos csatlakozók Uplink: 4 x 1,000 Base-X optikai portok S1720-52GWR-X series Lefelé irányuló kapcsolat: 48 x 10/100/1,000 Base-T elektromos csatlakozók Uplink: 4 x 10G Base-X optikai portok |
| Uplink: 2 x 1,000 Base-X optikai portok | Lefelé irányuló kapcsolat: 48 x 10/100/1,000 Base-T elektromos csatlakozók | |
| VLAN funkciók | 256 VLAN-ok (S1720 sorozat: 4K) Hozzáférési port Csomagtartó port Hibrid port Menedzsment VLAN Hang VLAN |
|
| IP-útválasztás | IPv4 és IPv6 statikus útválasztás | |
| Eszköz karbantartása | Rendszernapló Ping Virtuális kábelteszt (VCT) Link Layer Discovery Protocol (LLDP) |
|
Huawei S1720-52GWR-PWR-4X Switch Product Features
- S1700 provides LACP, STP, RSTP, and MSTP functions to implement link aggregation and backup. Fully-managed S1720 switches support up to 64 MSTP instances for flexible networking
- The S1700 provides a range of security features, including 802.1x, RADIUS, Portal and NAC. The S1700 also supports packet filtering based on MAC addresses or ports in order to defend against hackers and virus attacks.
- S1720 series web-managed and fully-managed switches support enhanced Media Delivery Index (eMDI). The S1720 functions as a monitoring node to periodically collect and report eMDI fault data to eSight, and then eSight quickly locates video service quality faults based on monitoring results of multiple nodes
Huawei S1720-52GWR-PWR-4X Switch and More Models
S1700-16G (16 Ethernet 10/100/1000 portok, AC 110/220V)
S1700-24-AC (24 Ethernet 10/100 portok, AC 110/220V)
S1724G-AC (24 Ethernet 10/100/1000 portok, AC 110/220V)
S1700-24GR (24 Ethernet 10/100/1000 portok, AC 110/220V)
S1700-52R-2T2P-AC (48 Ethernet 10/100 portok, 2 Ethernet 10/100/1000 portok és 2 Gig SFP, AC 110/220V)
S1700-52GR-4X (48 Ethernet 10/100/1000 portok, 4 10 Gig SFP+, AC 110/220V)
S1720-10GW-2P (8 Ethernet 10/100/1000 portok, 2 Gig SFP, AC 110/220V)
S1720-10GW-PWR-2P (8 Ethernet 10/100/1000 PoE+ portok, 2 Gig SFP, AC 110/220V)
S1720-28GWR-4P (24 Ethernet 10/100/1000 portok, 4 Gig SFP, AC 110/220V)
S1720-28GWR-4X (24 Ethernet 10/100/1000 portok, 4 10 Gig SFP+, AC 110/220V)
S1720-28GWR-PWR-4P (24 Ethernet 10/100/1000 PoE+ portok, 4 Gig SFP, 370W PoE AC 110/220V)
S1720-28GWR-PWR-4X (24 Ethernet 10/100/1000 PoE+ portok, 4 10 Gig SFP+, 370W PoE AC 110/220V)
S1720-52GWR-4P (48 Ethernet 10/100/1000 portok, 4 Gig SFP, AC 110/220V)
S1720-52GWR-4X (48 Ethernet 10/100/1000 portok, 4 10 Gig SFP+, AC 110/220V)
S1720-52GWR-PWR-4P (48 Ethernet 10/100/1000 PoE+ portok, 4 Gig SFP, 370W PoE AC 110/220V)
S1720-52GWR-PWR-4X (48 Ethernet 10/100/1000 PoE+ portok, 4 10 Gig SFP+, 370W PoE AC 110/220V)
S1720-28GWR-PWR-4TP (24 Ethernet 10/100/1000, 2 Gig SFP és 2 kettős cél 10/100/1000 vagy SFP, 8 PoE+ portok, 124W PoE AC)
Huawei S1720-52GWR-PWR-4X Switch Product Applications
