GYXTY53-14~18Xn Optic Cable is Uni-tube Anti-rodent Optical Cable
GYXTY53-14~18Xn Optic Cable Product Overview
GYXTY53 uni-tube anti-rodent optical cable is a communication optical cable designed with single-mode or multi-mode optical fiber. The optical fiber is placed in a loose tube made of high-modulus plastic, filled with moisture-proof compound, and wrapped with steel wire to enhance the mechanical properties. With high performance and anti-rodent function, it is suitable for direct burial, providing a stable and loss-resistant optical signal transmission solution for communication networks.

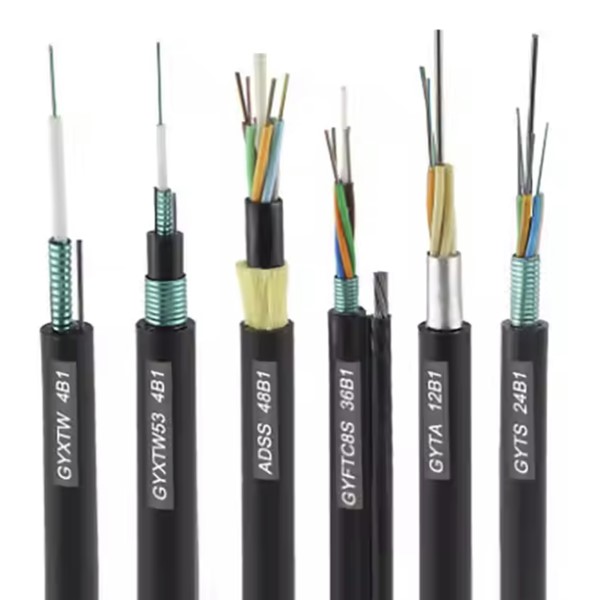

GYXTY53-14~18Xn Optic Cable Product Pictures
GYXTY53-14~18Xn Optic Cable Product Specifications
| Fiber Optic Cable Model (in 2-fiber increments) | Number of fibers | Reference cable weight（kg/km) | Tensile force allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Hajlítási sugár Static/Dynamic (mm) |
|||
| GYXTY53-2~12Xn | 2~12 | 144 | 1000/3000 | 1000/3000 | 12.5D/25D | |||
| GYXTY53-14~18Xn | 14-18 | 155 | ||||||
| GYXTY53-20~24Xn | 20-24 | 167 | ||||||
| GYXTY53-26~30Xn | 26-30 | 178 | ||||||
| GYXTY53-32~36Xn | 32-36 | 186 | ||||||
| Száltípus | attenuation | sávszélesség | Numerikus rekesznyílás | Fiber optic cable cut-off wavelength | ||||
| （+20℃） | ||||||||
| @ 850 nm | @1300nm | @ 1310 nm | @ 1550 nm | @ 850 nm | @1300nm | |||
| G.652 | — | — | ≤0,36 dB/km | ≤0,22 dB/km | — | — | — | ≤1260 nm |
| G.655 | — | — | ≤0.40dB/km | ≤0,23 dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0,015NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0,015NA | — |
GYXTY53-14~18Xn Optic Cable Product Features
• Excellent crush resistance and flexibility
• Small size and light weight, easy for installation
• Steel wire and steel tape armors providing excellent anti-rodent performance
• Applicable to duct, aerial and buried installations
• Accurate process control ensuring good mechanical and temperature performances
• The material of loose tubes with good hydrolysis resistance and relatively high strength
• Tube filling compound providing the key protection for fibres
GYXTY53-14~18Xn Optic Cable Product and More Optic Cables
GYGXZY04: Glass fiber tape + Nylon sheath, protects against rodents, termites, and lightning
GYXTY53: Stainless steel tape + wire, protects against rodents and birds
GYXTS: Stainless steel tape + wire, protects against rodents and birds
GYXTY: Stainless steel wire, protects against rodents and birds
GYFXTY: FRP Armor, protects against rodents, birds, and lightning
GYFTA53: Aluminum tape + steel tape, protects against rodents
GYFTA54: Steel tape + nylon sheath, protects against rodents and termites
GYFTY83(FS): Flat FRP tape, protects against rodents
GYFTY73: FRP tape armor, protects against rodents, birds, and lightning
GYFTS: Stainless steel tape, protects against rodents and birds
GYXTY53-14~18Xn Optic Cable Product Applications
- Telecom network: It is suitable for the construction and upgrading of telecom network, providing large-capacity communication channels and high-speed data transmission.
- Radio and television: It is suitable for the construction and upgrading of radio and television networks, providing high-quality video and audio transmission.
- Intelligent transportation: It is suitable for the construction of intelligent transportation system, providing real-time traffic information and transmission of control signals.
- A dolgok internete: It is suitable for the construction and upgrading of the Internet of Things, providing efficient Internet of Things data transmission.
GYXTY53-14~18Xn Optic Cable Product Structure
