Deskripsyon
Patch Cord SS-OP-LC-SC-S-30 is Fiber Patch Cable wtth LC/PC,SC/PC,Single-mòd,30m,G.652D,2mm
Patch Cord SS-OP-LC-SC-S-30 Product Overview
Fib optik yo itilize pou pote siyal sou rezo Gigabit oswa rezo ki gen pi gwo pousantaj pake. Yon fib optik se yon konpayi asirans siyal optik epi li transmèt siyal optik sou yon distans kout. An optical fiber is connected as follows: One end is connected to the optical port on the USG through the corresponding optical module. The other end is connected to the optical port on the peer device. This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm. This fiber cable can also save more space for your high-density cabling in data centers, enterprise networks, telecom rooms, server farms, cloud storage networks, and interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.

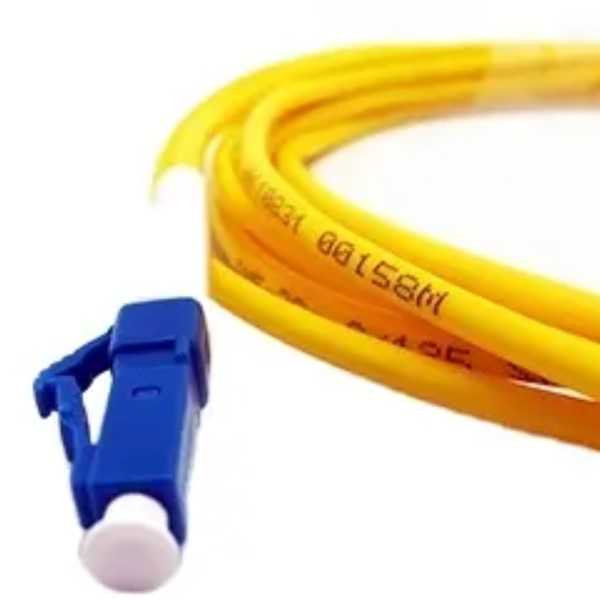

Patch Cord SS-OP-LC-SC-S-30 Product Pictures
Patch Cord SS-OP-LC-SC-S-30 Product Specifications
| Kalite Connector | LC UPC pou SC UPC |
| Fib Klas | G.657.A1 (Compatible with G.652.D) |
| Mòd fib | OS2 9/125μm |
| Longèdonn | 1310/1550nm |
| Pèt Ensèsyon | ≤0.3dB |
| Retounen Pèt | ≥50dB |
| Min. Bend reyon (Nwayo Fib) | 10mm |
| Min. Bend reyon (Fib kab) | 10/5D (Dinamik/estatik) |
| Attenuation at 1310 nm | 0.36dB/km |
| Attenuation at 1550 nm | 0.22dB/km |
| Konte fib | Duplex |
| Dyamèt deyò kab (OF) | 2.0mm |
| Kab Jacket | Rize (OFNR) |
| Polarite | A (Tx) pou B (Rx) |
| Tanperati Fonksyònman | -20 jiska 70 °C (-4 jiska 158 ℉) |
| Tanperati Depo | -40 to 80°C (-40 jiska 176 ℉) |
Patch Cord SS-OP-LC-SC-S-30 and More Fiber Cables
| Deskripsyon | Nimewo Pati | Modèl | Konektè X1 | Connector X2 | Longè kab | Bend reyon |
| Patch kòd,SC/PC,SC/PC,Single-mòd,5m,G.652D,3mm | 14130098 | SS-OP-D-SC-S-5 | SC/PC | SC/PC | 5 m | 30 mm |
| Patch kòd,LC/PC,SC/PC,Single-mòd,5m,G.652D,2mm | 14130193 | SS-OP-LC-SC-S-5 | LC/PC | SC/PC | 5 m | 30 mm |
| Patch kòd,LC/PC-LC/PC,Singlemode,G.652D,2mm,5m | 14130195 | SS-OP-D-LC-S-5 | LC/PC | LC/PC | 5 m | 30 mm |
| Patch kòd,LC/PC,SC/PC,Single-mòd,10m,G.652D,2mm | 14130196 | SS-OP-LC-SC-S-10 | LC/PC | SC/PC | 10 m | 30 mm |
| Patch kòd,LC/PC,FC/PC,Single-mòd,10m,G.652D,2mm | 14130197 | SS-OP-LC-FC-S-10 | LC/PC | FC/PC | 10 m | 30 mm |
| Patch kòd,LC/PC,LC/PC,Single-mòd,10m,G.652D,2mm | 14130199 | SS-OP-D-LC-S-10 | LC/PC | LC/PC | 10 m | 30 mm |
| Patch kòd,LC/PC,FC/PC,Multi-mòd,10m,A1b,2mm | 14130221 | SS-OP-LC-FC-M-10 | LC/PC | FC/PC | 10 m | 30 mm |
| Patch kòd,LC/PC,LC/PC,Multi-mòd,10m,A1B,2mm | 14130222 | SS-OP-D-LC-M-10 | LC/PC | LC/PC | 10 m | 30 mm |
| Patch kòd,LC/PC,SC/PC,Multi-mòd,10m,A1b,2mm | 14130223 | SS-OP-LC-SC-M-10 | LC/PC | SC/PC | 10 m | 30 mm |
| Optik adaptè-LC/PC-LC/PC-Blue-Shell:Plastik-manch:Zirkonya-Kare | 14130248 | QW1P0FIBER06 | LC/PC | LC/PC | – | – |
| Patch kòd,LC/PC,LC/PC,Single-mòd,20m,G.652D,2mm | 14130251 | SS-OP-D-LC-S-20 | LC/PC | LC/PC | 20 m | 30 mm |
| Patch kòd,LC/PC,SC/PC,Multi-mòd,30m,A1b,2mm | 14130275 | SS-OP-LC-SC-M-30 | LC/PC | SC/PC | 30 m | 30 mm |
| Patch kòd,LC/PC,SC/PC,Single-mòd,30m,G.652D,2mm | 14130276 | SS-OP-LC-SC-S-30 | LC/PC | SC/PC | 30 m | 30 mm |
| Patch kòd,LC/PC,SC/PC,Multi-mòd,20m,A1b,2mm | 14130279 | SS-OP-LC-SC-M-20 | LC/PC | SC/PC | 20 m | 30 mm |
| Patch kòd,LC/PC,SC/PC,Single-mòd,20m,G.652D,2mm | 14130280 | SS-OP-LC-SC-S-20 | LC/PC | SC/PC | 20 m | 30 mm |
| Patch kòd,LC/PC,LC/PC,Multi-mòd,20m,A1b,2mm | 14130295 | SS-OP-D-LC-M-20 | LC/PC | LC/PC | 20 m | 30 mm |
| Patch kòd,LC/PC,LC/PC,Multi-mòd,5m,A1b,2mm | 14130296 | SS-OP-D-LC-M-5 | LC/PC | LC/PC | 5 m | 30 mm |
| Patch kòd,LC/PC,SC/PC,Multi-mòd,50m,A1b,2mm | 14130311 | SS-OP-LC-SC-M-50 | LC/PC | SC/PC | 50 m | 30 mm |
| Patch kòd,LC/PC,SC/PC,Single-mòd,50m,G.652D,2mm | 14130312 | SS-OP-LC-SC-S-50 | LC/PC | SC/PC | 50 m | 30 mm |
| Patch kòd,LC/PC,LC/PC,Single-mòd,6m,G.652D,2mm | 14130360 | SS-OP-D-LC-S-6 | LC/PC | LC/PC | 6 m | 30 mm |
| Pati kab optik,MPO/PC,MPO/PC,MULTI-MÒD,2m,8 NOU,0m/0m,GJFH-8A1A.2(OM3),3.5MM,LSZH,43MM KOUT MPO,BENDING ENSENSIF | 14130823 | F00MPMP01 | MPO/PC | MPO/PC | 2 m | 18 mm |
| Pati kab optik,MPO/PC,MPO/PC,Multimode(OM3, koube ensansib),30m,8 Nwayo,0m/0m,GJFH 8A1a,3.5mm,LSZH,42mm Kout MPO,Andedan kay la | 14130823-002 | FMMM03001 | MPO/PC | MPO/PC | 30 m | 17.5 mm |
| Pati kab optik,MPO/PC,MPO/PC,Multimode(OM3, koube ensansib),100m,8 Nwayo,0m/0m,GJFH 8A1a,3.5mm,LSZH,42mm Kout MPO,Andedan kay la | 14130823-003 | FMMM10001 | MPO/PC | MPO/PC | 100 m | 17.5 mm |
| Pati kab optik,MPO/PC,MPO/PC,MULTI-MÒD,15m,8 NOU,0m/0m,GJFH-8A1A.2(OM3),3.5MM,LSZH,60mm MPO,Koube ensansib | 14130923 | SS-OP-D-MPO12-M-15 | MPO/PC | MPO/PC | 15 m | 18 mm |
| Pati kab optik,MPO/PC,MPO/PC,Multi-mòd,10m,8 nwayo,GJFH-8A1a.3(OM4),3.5mm,0mm,LSZH,Koube ensansib | 14134486 | MPO12-MPO12-M4-10 | MPO/PC | MPO/PC | 10 m | |
| LC/UPC LC/APC SC/UPC SC/APC FC/APC FC/UPC ST/UPC LSH/APC MTR/UPC G.657.A1 G.657.A2 G.652.D BIF G.651 |
||||||
Patch Cord SS-OP-LC-SC-S-30 Product Features
- High-quality zirconia ferrules
- Pèt ensèsyon ki ba, gwo pèt retounen
- Good repeatability and interchangeability
- Assemblies are machine polished providing excellent quality
- Factory tested and come with a test protocol
Patch Cord SS-OP-LC-SC-S-30 Product Applications
