Deskripsyon
Huawei W0PSA2500 Power Module is 250W AC PoE Power Module

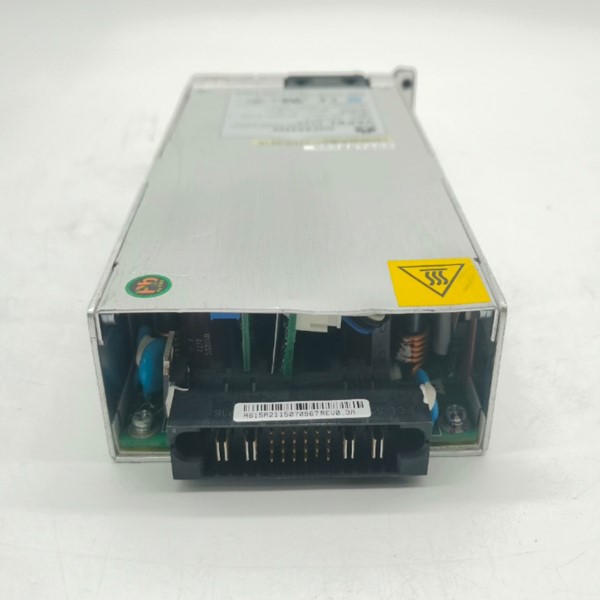

Huawei W0PSA2500 Power Module Product Pictures
Huawei W0PSA2500 Power Module Product Specifications
| Nimewo pati | 2130878 |
| Dimansyon (H x W x P) | 40 mm x 100 mm x 205 mm (1.6 nan. x 3.9 nan. x 8.1 nan.) |
| Pwa | 0.8 KG (1.76 lb) |
| Rated input voltage range | 100 V AC pou 240 V AC, 50/60 Hz |
| Maximum input voltage range | 90 V AC pou 264 V AC, 47 Hz pou 63 Hz |
| Antre aktyèl | 4 A to 2 A |
| Maximum output current | +12 V: 10 A |
| -53.5 V: 2.5 A | |
| Maksimòm pwodiksyon pouvwa | PoE: 130 W |
| Total: 250 W | |
| PoE ekipman pou pouvwa | Complying with IEEE 802.3af and IEEE 802.3at, the PoE power module is able to remotely provide power for the devices of different vendors. IEEE 802.3af supports a maximum of 15.4 W power and IEEE 802.3at supports a maximum of 30 W power. |
| Input protection | Input overcurrent and undervoltage protection is provided. |
| Output protection | Output undervoltage, overvoltage, overcurrent, and short-circuit protection is provided. |
| Overtemperature protection | – |
| Surge protection | – |
| Cho swapping | Sipòte |
| W0PSA2500 | S5700-28C-PWR-EI, S5700-52C-PWR-EI, S5700-28C-PWR-SI, S5700-52C-PWR-SI, S5700-24TP-PWR-SI, S5700-48TP-PWR-SI, S5710-28C-PWR-LI, S5710-52C-PWR-LI |
Huawei W0PSA2500 Power Module and More Models
PAC-60WA-L (60W AC pouvwa Modil)
LS5M100PWA00/ES0W2PSA0150 (150 W AC pouvwa Modil)
LS5M100PWD00/ES0W2PSD0150 (150 W DC pouvwa Modil)
PAC-350WA-B (350 W AC pouvwa Modil)
W0PSA2500 (250 W AC PoE pouvwa Modil)
W0PSA5000/PAC-500WA-BE (500 W AC PoE pouvwa Modil)
W2PSA0580 (580 W AC PoE pouvwa Modil)
PDC-650WA-BE (650 W DC PoE pouvwa Modil)
PAC1000D5412 (1000 W AC PoE pouvwa Modil)
W2PSA1150 (1150 W AC PoE pouvwa Modil)
PAC60S12-AR (60 W AC&240 V DC pouvwa Modil)
PAC150S12-R (150 W AC pouvwa Modil)
W0PSA1701 (170 W AC pouvwa Modil)
ES5M0PSD1700 (170 W DC pouvwa Modil)
PDC180S12-CR (180 W DC pouvwa Modil)
PDC-350WA-B (350 W DC pouvwa Modil)
PAC-600WA-B (600 W AC pouvwa Modil)
PAC600S12-CB (600 W AC&240 V DC pouvwa Modil)
PAC600S12-DB (600 W AC&240 V DC pouvwa Modil)
PAC600S12-EB (600 W AC&240 V DC pouvwa Modil)
PAC600S56-CB (600 W PoE AC&240 V DC pouvwa Modil (Retounen devan, Pouvwa panèl bò tiyo echapman))
PAC600S56-EB (600 W PoE AC&240 V DC pouvwa Modil (66mm Lajè Ka, Retounen devan, Pouvwa panèl bò tiyo echapman))
PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC pouvwa Modil)
PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC pouvwa Modil)
PAC1000S56-DB (1000 W PoE AC&240 V DC pouvwa Modil)
PAC1000S56-EB (1000 W PoE AC&240 V DC pouvwa Modil (66 mm Lajè Ka, Retounen devan, Pouvwa panèl bò tiyo echapman))
PDC1000S56-CB (1000 W PoE DC Power Modil)
PDC1000S12-DB (1000 W DC pouvwa Modil)
PDC1000S56-EB (1000 W PoE DC Power Modil (66 mm Lajè ka, Retounen devan, Pouvwa panèl bò tiyo echapman))
Huawei W0PSA2500 Power Module Product Applications
