Deskripsyon
Huawei S7712 Switch is widely used in campus networks and data center core/aggregation nodes to provide advanced control over wireless, vwa, videyo, and data convergence networks, helping enterprises to build end-to-end converged networks with integrated switch routing.
Huawei S7712 Switch Product Overview
HuaweiS7712 Switch is a new generation of high-end intelligent routing switches introduced by Huawei for the next-generation enterprise network architecture. Based on Huawei’s intelligent multi-layer switching technology, this product provides MPLS VPN, service flow analysis, improved HQoS strategy, and controllable multicast based on providing stable, serye, and secure high-performance L2~L4 layer switching services. Intelligent resource optimization methods such as resource load balancing and integrated security, with superior scalability and reliability.

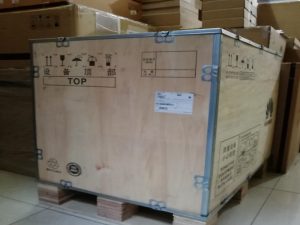

Huawei S7712 Switch Product Pictures
Huawei S7712 Switch Product Pictures
| # | S7703 | S7703 PoE | S7706 | S7706 PoE | S7710 | S7712 |
| Chanje Kapasite | 19.2/48Tbps | 19.2/48Tbp s | 19.84/86.4T bps | 19.84/86.4T bps | 64.32/256T bps | 27.52/153.6T bps |
| Transmisyon pèfòmans | 1440/16560Mp | 1440/16560 Mp | 2880/26400 Mp | 2880/26400 Mp | 8400/72000 Mp | 2880/48960 Mp |
| Fant MPU | 2 | 2 | 2 | 2 | 2 | 2 |
| Chanje plas rezo a | Bati nan | Bati nan | Mèt kontwòl entegrasyon2 | Mèt kontwòl entegrasyon2 | 4(Mèt kontwòl entegrasyon2) | Mèt kontwòl entegrasyon2 |
| Plas pou kat sèvis | 3 | 3 | 6 | 6 | 10 | 12 |
| Konsepsyon redondants | kontwòl prensipal la, ekipman pou pouvwa, tablo siveyans, ankadreman fanatik | |||||
| Jesyon san fil (ak tablo AC) | WLAN biznis de baz | Sipòte rezo may | ||||
| Sipò ak tablo AC ant N + N sibstiti frèt | ||||||
| Sipòte mòd gwoup ak tablo AC sibstiti cho | ||||||
| Sipòte pwezante tèminal WLAN | ||||||
| Sipòte fonksyon pwezante sous entèferans | ||||||
| Sipòte analiz spectre | ||||||
| Sipòte 2.4G & 5G chaj balanse | ||||||
| Sipòte mòd priyorite 5G | ||||||
Huawei S7712 Switch Product Features
OPS open programmable system
OPS (Louvri sistèm pwogramabilite) se yon sistèm louvri pwogramasyon ki baze sou langaj Python. Administratè IT yo ka itilize script Python pou pwograme fonksyon operasyon ak antretyen switch la, quickly realize functional innovation and realize intelligent operation and maintenance.
Dyagnostik entèlijan
The Open Intelligent Diagnosis System (OIDS) integrates the device health monitoring and fault diagnosis functions that are routinely deployed on the NMS into the switch software to implement the device-side intelligent diagnosis function. After the OIDS is deployed, the device collects and records the device running information periodically, and automatically determines whether a fault occurs. Si yon fay rive, it automatically locates or helps locate the fault, improves the fault location efficiency of the maintenance personnel, and improves the maintainability of the device.
Intelligent operation and maintenance
The S7700 supports the Telemetry technology and provides real-time device data collection and uploads to the Huawei CampusInsight platform. The platform analyzes network data through intelligent fault identification algorithms to accurately display the real-time status of the network, and can timely and effectively delimit faults and locate faults. Discover network problems that affect the user experience and accurately guarantee the user experience.
Huawei S7712 Switch Product Ordering Info
| Konfigirasyon debaz | |
| LE0BN66EDC | N66E DC Asanble etajè (Kat 40A sorties, maksimòm |
| 1600W pou chak pwodiksyon, 600X600X2200mm) | |
| LE0BN66EAC | N66E AC Asanble etajè (Uit 10A Sorti, maksimòm |
| 1600W pou chak pwodiksyon, 600X600X2200mm) | |
| LE2BN66EA000 | N66E AC Asanble etajè (Kat 16A Sorti, maksimòm |
| 2500W pou chak pwodiksyon, 600X600X2200mm) | |
| ES0B00770300 | S7703 Chasi Asanble |
| ES1BS7703SP0 | S7703 PoE asanble chasi |
| ES0B00770600 | S7706 Chasi Asanble |
| ES1BS7706SP0 | S7706 PoE asanble chasi |
| ES0B00771200 | S7712 Asanble Chasi |
| ES1BS7703S01 | S7703 Asanble Chasi-sustain FCC |
| ES0B017712P0 | S7712 POE Asanble Chasi |
| ES0E2FBX | Wide Voltage Fan Box |
| ES1M00FBX001 | Amelyorasyon Wide Voltage 68 Fan Box |
| Komisyon Konsèy Siveyans | |
| EH1D200CMU00 | Komisyon Konsèy Siveyans Santralize |
| Inite kontwòl prensipal la | |
| ES0D00MCUA00 | S7703 Inite kontwòl prensipal A |
| ES1D2MCUAC00 | S7703, Inite kontwòl prensipal A(Revèy si ou vle) |
| ES0D00SRUA00 | S7706/S7712 Inite kontwòl prensipal A |
| Inite kontwòl prensipal la | |
| ES1D2SRUAC00 | S7706/S7712, Inite kontwòl prensipal A(Si ou vle revèy) |
| ES0D00SRUB00 | S7706/S7712 Inite kontwòl prensipal B(Revèy) |
| ES1D2SRUE000 | S7706/S7712, Inite kontwòl prensipal E |
| ES1D2SRUH000 | S7706/S7712 Inite kontwòl prensipal H |
| ES1D2SRUH002 | S7706/S7712, Inite kontwòl prensipal H(Sipòte bòt sekirite) |
| Kat Sèvis SRU | |
| ES0D00FSUA00 | Amelyore Inite Sèvis fleksib |
| ES02VSTSA | Cluster Switching System Service Unit |
| ES1D2VS04000 | 4-Port 10G Cluster Switching System Service Unit (SFP+) |
| LE0D00CKMA00 | Clock Pinch Board-1588 |
| Kat ajil | |
| ES1D2C04HX2S | 4-Port 100GE QSFP28 Entèfas kat(X2S,QSFP28) |
| ES1D2C04HX2E | 4-Port 100GE QSFP28 Entèfas kat(X2E,QSFP28) |
| ES1D2H02QX2S | 2-Port 100GE QSFP28 Entèfas ak 2-Port 40GE QSFP + |
| Kat koòdone(X2S,QSFP28) | |
| ES1D2H02QX2E | 2-Port 100GE QSFP28 Entèfas ak 2-Port 40GE QSFP + |
| Kat koòdone(X2E,QSFP28) | |
| ES1D2S04SX1E | 4-Pò 10GBASE-X ak 24-Port 100/1000BASE-X ak 8-Port |
| 10/100/1000BASE-T Combo Entèfas | |
| Kat(X1E,RJ45/SFP/SFP+) | |
| ES1D2S04SX5E | 4-pò 10GE SFP + ak 44-pò GE SFP koòdone kat (X5E, |
| SFP+) | |
| ES1D2S08SX1E | 8-Pò 10GBASE-X ak 8-Port 100/1000BASE-X ak 8-Port |
| 10/100/1000BASE-T Combo Entèfas | |
| Kat(X1E,RJ45/SFP/SFP+) | |
| ES1D2X48SX2S | 48-Port 10GE SFP + kat entèfas(X2S,SFP+) |
| ES1D2L08QX2E | 8-Port 40GE QSFP + kat entèfas(X2E,QSFP+) |
| ES1D2X08SX5L | 8-pò 10GE SFP + kat koòdone (X5L, SFP+) |
| ES1D2X08SX5E | 8-pò 10GE SFP + kat koòdone (X5E, SFP+) |
| ES1D2X08SX5H | 8-pò 10GE SFP + kat koòdone (X5H, SFP+) |
| ES1D2X32SX2S | 32-Port 10GE SFP + kat entèfas(X2S,SFP+) |
| ES1D2X32SX2E | 32-Port 10GE SFP + kat entèfas(X2E,SFP+) |
| ES1D2S24SX2S | 24-Port 10GE SFP + Entèfas ak 8-Port GE SFP Entèfas |
| Kat(X2S,SFP+) | |
| ES1D2S24SX2E | 24-Port 10GE SFP + Entèfas ak 8-Port GE SFP Entèfas |
| Kat ajil | |
| Kat(X2E,SFP+) | |
| ES1D2S16SX2S | 16-Port 10GE SFP + Entèfas ak 16-Port GE SFP Entèfas |
| Kat(X2S,SFP+) | |
| ES1D2S16SX2E | 16-Port 10GE SFP + Entèfas ak 16-Port GE SFP Entèfas |
| Kat(X2E,SFP+) | |
| ES1D2G24SX5L | 24-pò 100/1000BASE-X koòdone kat (X5L, SFP) |
| ES1D2G24SX5E | 24-pò 100/1000BASE-X koòdone kat (X5E, SFP) |
| ES1D2G48TX1E | 48-Port 10/100/1000BASE-T Entèfas kat(X1E,RJ45) |
| ES1D2G48SX1E | 48-Port 100/1000BASE-X Entèfas kat(X1E,SFP) |
| ES1D2G48VX5S | 48-pò 100/1000BASE-T PoE koòdone kat (X5S, RJ45, |
| PoE++) | |
| ES1D2G48VX5E | 48-pò 100/1000BASE-T PoE koòdone kat (X5E, RJ45, |
| PoE++) | |
| ES1D2G48TX5S | 48-pò 100/1000BASE-T kat koòdone (X5S, RJ45) |
| ES1D2G48TX5L | 48-pò 100/1000BASE-T kat koòdone (X5L, RJ45) |
| ES1D2G48TX5E | 48-pò 100/1000BASE-T kat koòdone (X5E, RJ45) |
| ES1D2G48TX5H | 48-pò 100/1000BASE-T kat koòdone (X5H, RJ45) |
| ES1D2G48SX5S | 48-pò 100/1000BASE-X koòdone kat (X5S, SFP) |
| ES1D2G48SX5L | 48-pò 100/1000BASE-X koòdone kat (X5L, SFP) |
| ES1D2G48SX5E | 48-pò 100/1000BASE-X koòdone kat (X5E, SFP) |
| ES1D2G48SX5H | 48-pò 100/1000BASE-X koòdone kat (X5H, SFP) |
Huawei S7712 Switch Product Applications
